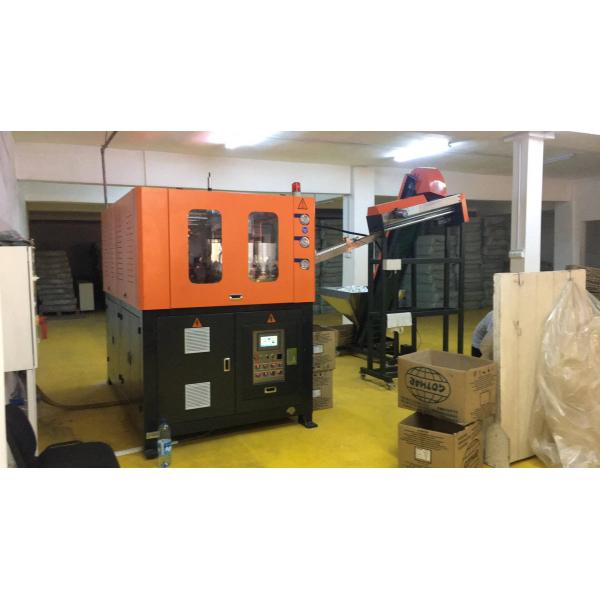

25kw Security Bottle Blow Molding Machine , Machine To Make Plastic Bottles
25kw Security Bottle Blow Molding Machine , Machine To Make Plastic Bottles
25kw Security Bottle Blow Molding Machine , Machine To Make Plastic Bottles
25kw Security Bottle Blow Molding Machine , Machine To Make Plastic Bottles
Specifications
Brand Name :
Eceng
Model Number :
YCQ-2L-2
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10sets per month
Delivery Time :
30 working days
Packaging Details :
Film pack
cavity :
2
power :
24
capacity :
2200
cylinder :
SMC
warranty :
1year
color :
orange
Description
Model ITEM YCQ-2L-2 YCQ-2L-4
Productivity Depend on bottle design 1800-2400PCS/H 3600-4400PCS/H
Product type Volume 0.1-2L 0.1-2L
Body diameter less 100mm less 100mm
Height less 310mm less 310mm
Neck diameter 38mm 38mm
Mould Cavity 2 4
Mold thickness 240mm 240mm
Mold size 260*240*370mm 510*240*360mm
Main machine power Electrical source power 380V/220V 50/60HZ 3Phase 380V/220V 50/60HZ 3Phase
Power 25kw 49kw
Really use power 6.5kw 13kw
Air system HP air compressor 1.4 m3/min 3.0Mpa 2.0 m3/min 3.0Mpa
LP air compressor 1.0 m3/min 1.0Mpa 1.6 m3/min 1.0Mpa
Air Tank 0.6m3 3.0Mpa 0.6m3 3.0Mpa
Air dryer 1.0m3/min 3.0Mpa 2.0m3/min 3.0Mpa
Cooling water Water Chiller 3HP 3HP
Machine Size(L*W*H) 1900*1280*1930mm 1900*1860*1930mm
Weight 2000kg 3600kg
Preform unscrambler Size(L*W*H) 2000*950*2480mm 2000*950*2480mm
Weight 250kg 250kg

Features:

CM-A2/A4 Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used for producing the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle and hot filling bottle etc.

*Reasonable design, full automaticlly control, save power and labor.
*Feeding system carries the preforms by robot arms automatically.
*Infrared oven heater adopts the quartz lamp to heat the PET tube.
*Fully automatic process with low investment, high efficiency,quick and safe for operation, easy for maintenance.
*We have perfect service after sales .
*Adopting high quality components.
