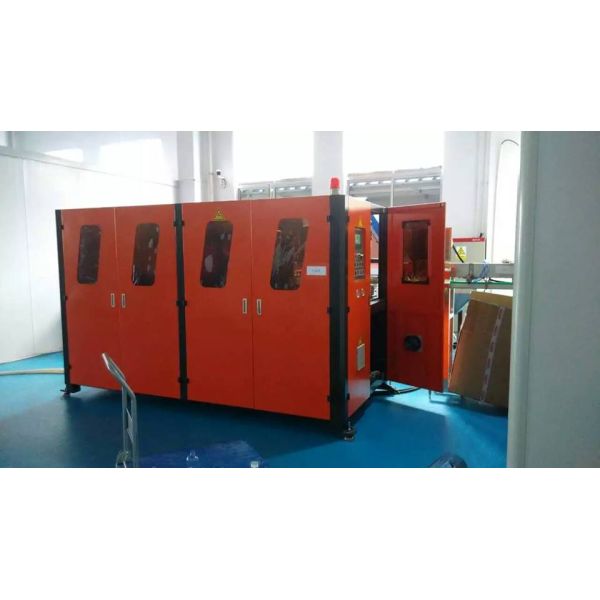

2 Cavity Plastic Bottle Manufacturer Machine With Hydraulic Mold Clamping System
2 Cavity Plastic Bottle Manufacturer Machine With Hydraulic Mold Clamping System
2 Cavity Plastic Bottle Manufacturer Machine With Hydraulic Mold Clamping System
2 Cavity Plastic Bottle Manufacturer Machine With Hydraulic Mold Clamping System
Specifications
Brand Name :
Eceng
Model Number :
YCQ-2L-2
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10set per month
Delivery Time :
30 working days
Packaging Details :
Film pack
cavity :
2
conidtiion :
new
PLC :
Mitsubishi
cylider :
SMC
warranty :
1year
color :
orange
Description
2 Cavity Automatic Pet Jar Making Machine Plastic Bottle Mold Blowing Machine
1. Conveying preforms automatically with conveyor.
2. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
3. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
4. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
5. No contamination and low noise.
6. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
7. Strong clamping force with high pressure and double crank links to lock the mold.
8. Two ways of operating: automatic and manual.

2 Cavity Automatic Pet Jar Making Machine Plastic Bottle Mold Blowing Machine Pic Details

Model ITEM YCQ-2L-2 YCQ-2L-4
Productivity Depend on bottle design 1800-2400PCS/H 3600-4400PCS/H

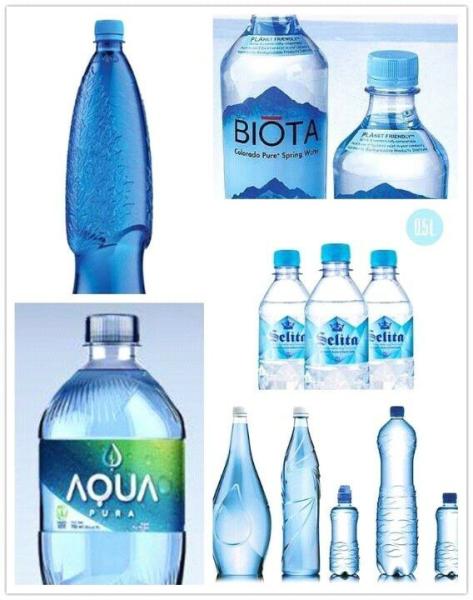

Product type Volume 0.1-2L 0.1-2L
Body diameter less 100mm less 100mm
Height less 310mm less 310mm
Neck diameter 38mm 38mm

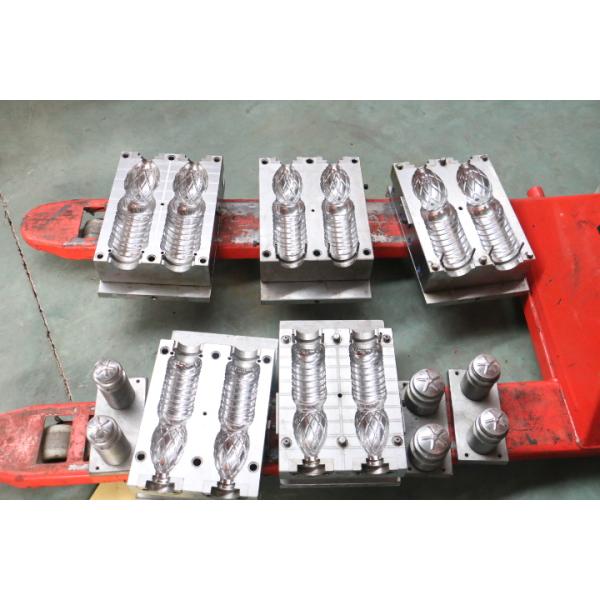

Mould Cavity 2 4
Mold thickness 240mm 240mm
Mold size 260*240*370mm 510*240*360mm
Main machine power Electrical source power 380V/220V 50/60HZ 3Phase 380V/220V 50/60HZ 3Phase
Power 25kw 49kw
Really use power 6.5kw 13kw
Air system HP air compressor 1.4 m3/min 3.0Mpa 2.0 m3/min 3.0Mpa
LP air compressor 1.0 m3/min 1.0Mpa 1.6 m3/min 1.0Mpa
Air Tank 0.6m3 3.0Mpa 0.6m3 3.0Mpa
Air dryer 1.0m3/min 3.0Mpa 2.0m3/min 3.0Mpa
Cooling water Water Chiller 3HP 3HP
Machine Size(L*W*H) 1900*1280*1930mm 1900*1860*1930mm
Weight 2000kg 3600kg
Preform unscrambler Size(L*W*H) 2000*950*2480mm 2000*950*2480mm
Weight 250kg 250kg

2 Cavity Plastic Bottle Manufacturer Machine With Hydraulic Mold Clamping System
2 Cavity Plastic Bottle Manufacturer Machine With Hydraulic Mold Clamping System
