PET Bottle Stretch Plastic Bottle Making Machine Four Cavity Fully Automatic

YCQ series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 6 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

Feature:

A. Advanced PLC control system, stable and excellent performance.

B. Conveyor belt automatically feeds preforms.

C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the

infrared pre-heater.

D. High adaptability,preform absorbs heat by adjusting the distance between lamp and reflector.With automatic constant temperature device,temperature is kept within a certain range.

E. Safety locks are provided during each mechanical action to protect operator's safety.

F. Use cylinder instead of hydraulic cylinder, low pollution, low noise.

G. Use different air pressure for blowing and machine operation,energy saving and environmental protection.

H. Equipped with high pressure and double-crank linkage clamping, providing high clamping force.

I. Two ways of operating: automatic and manual.

J. Safe, reliable, unique valve position design makes blowing process easier to control

K. Low-cost, high-efficiency, easy-to-operate, easy-to-maintain, advanced automatic process flow.

L. Avoid bottle contamination

M. Protection of low temperature cooling system

N. Easy to install and start

O. Low scrap rate

Machine specification

Claim system

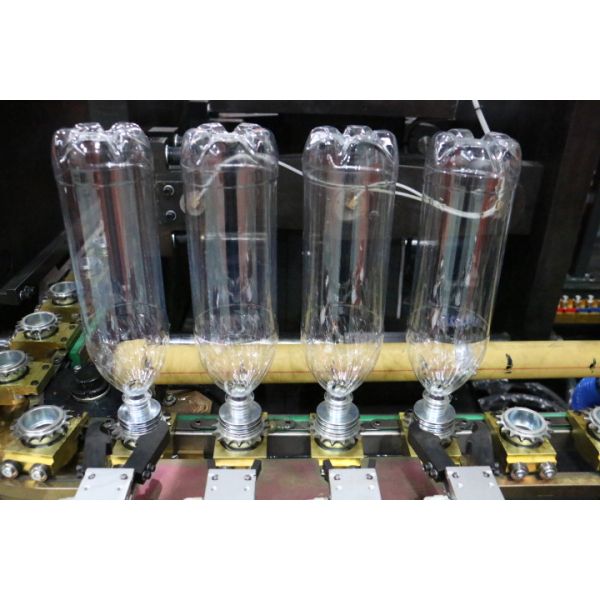

Working Process

Factory overview

Service Team

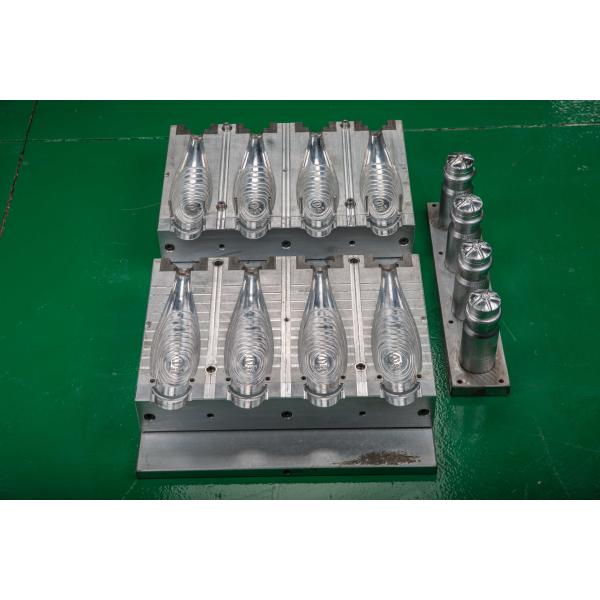

Sample and mold

Provide whole drawing for the perform mould and bottle mould. Free charge for word design on the mould. We can help you

install the machine; from setting machine, testing, and to check the machine is on the good working condition. There is a litter

charge, only for flight charge and accommodation.

Warranty:

We response for one year warranty for the machine, however, it without any human conduct. And provide one-year free

spare part for client.

Up 15 million shots for the bottle mould.

3 million shots for the perform mould, cap mould.

All moulds are designed by CAD/CAM.

We also can provide the drawing for the mould, help you to maintain the mould, and machine.
