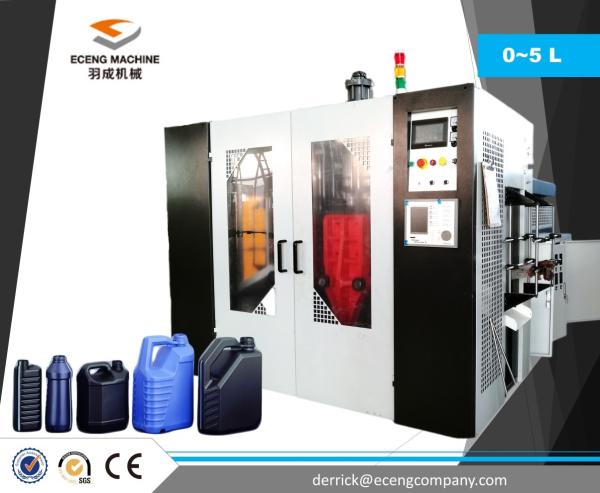

100 Kw Water Tank Blow Molding Machine Producing Plastic Containers And Bottles
100 Kw Water Tank Blow Molding Machine Producing Plastic Containers And Bottles
100 Kw Water Tank Blow Molding Machine Producing Plastic Containers And Bottles
100 Kw Water Tank Blow Molding Machine Producing Plastic Containers And Bottles
Specifications
Brand Name :
Eceng
Model Number :
YC-5L-E
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10sets per month
Delivery Time :
30 working days
Packaging Details :
Film pack
Color :
Blue/yellow/white/orange
Station :
Double
Blowing pressure :
0.6MPA
Cooling wate pressure :
0.3Mpa
weight :
5.5T
warranty :
1 year
Description

HDPE PE Plastic Extrusion Blow Molding machine //Water Tank Moulding Machine

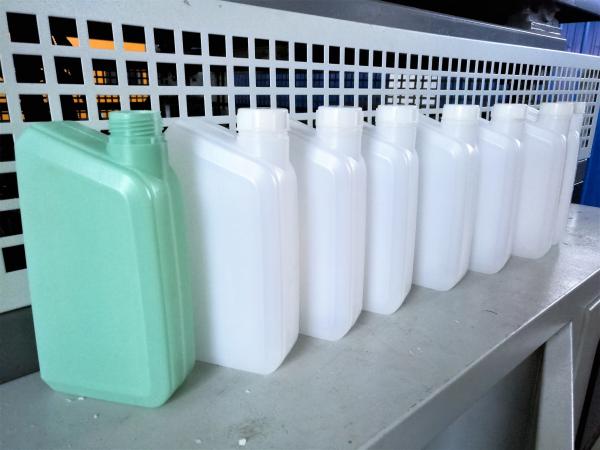

It is suitable for producing plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar,drum ,Tool kit , plastic model etc.

Technical Parameters

One step good price auto 5 gallon 20 liter pc hdpe abs plastic water bottle automatic extrusion blow molding /moulding machine
Technical specification
Model YC-5L
Station double
Max. Product Volume (L) 5L
Dry cycle (pc/h) 700*2
Screw Diameter (mm) 70
Screw L/D ratio (L/D) 25
Screw drive power (KW) 22
Max. Output of HDPE (Kg/hr) 70
Oil pump drive power (KW) 7.5
Clamping force (KN) 60
Platen distance (mm) 148~508
Max. Size of Mold(W*H) (mm) 370*390
Die heat power (KW) 2.5
Blowing pressure (Mpa) 0.6
Air volume (M3/MIN) 0.4
Cooling water pressure (Mpa) 0.2~0.3
Water consumption (L/MIN) 60
Size of machine ( L*W*H) (m) 3.43*2.3*2.65
Weight of machine (TON) 5.5

100 Kw Water Tank Blow Molding Machine Producing Plastic Containers And Bottles
