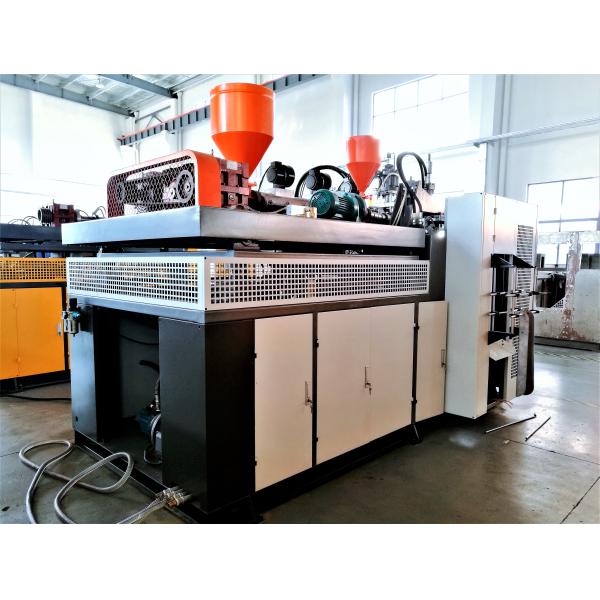

Double Station Extrusion Blow Molding Machine , Plastic Drum Making Machine
Double Station Extrusion Blow Molding Machine , Plastic Drum Making Machine
Double Station Extrusion Blow Molding Machine , Plastic Drum Making Machine
Double Station Extrusion Blow Molding Machine , Plastic Drum Making Machine
Specifications
Brand Name :
Eceng
Model Number :
YC80
Certification :
SGS&ISO&CE
Place of Origin :
China
MOQ :
1set
Price :
Negotibale
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10sets per month
Delivery Time :
30 working days
Packaging Details :
Film pack
PLC :
Mitsubishi
max volume :
5L
Valve :
Festo
weight :
5Ton
station :
Double
Color :
white
Description

Plastic Bottle Blowing Making Machine Full-automatic plastic bottle Extrusion blow molding machine/Extrude tube blowing

Automatic Extrusion Blow Molding machine

Single/Double Station Version

Max volume : 5L

Die head number : 1~4

Viewer stripe line : available

Multiple Layer : available

Suitable material : PE, PP, PVC, PETG, PS

Hydraulic motor : Typical motor or servo motor

Auto-deflashing system: Available

Auto-Lubrication system: Available

Machine color options: Blue, White, Green, Orange, Yellow or others

Basic parameters Suitable material PE.PP,PVC,PS,PETG,so on
Max volume 5L (Single head)
Output capacity 200~240 pcs/h
Size 3.8×2.3×2.5(M)
Weight 4.8T
system Specification Parameters Note
Summarize High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer

Material of Gear box body: HT200
Material of gear: ZG35CrMo
Material of bearing: 42CrMo
Heat treatment of Gear: Quenching

Brand: GuoTai
(The best Gearbox supplier in China)
Screw

∮75mm,L/D ratio 25/1,
Material: 38CrMoALA
Nitriding heat-treatment
Cooling by cooling Fan

 Cooling system available
Plasticization 100Kg/H HDPE
Heating Zone 3-4 Aluminum Heater Automatic heating
Heating power 4KW/H
Extrusion Motor Three phase asynchronous motor (380V,50HZ) 30HP Brand: Siemens
Cooling Fan 3-4zone Automatic cooling
Summarize

High-grade alloy steel, center feeding
Avaible to change to double die head or thriple die heads
Die head number Single head for 5L / double head for 1L
Center distance of die heads

130mm or 160mm for Double die head
75mm or 80mm for Four die head
Die head

Material of the die Head:38CrMoAlA+40Cr+45# Steel
Die head corn mirror degree

 We provide complete set die for each sample free
Heating

3-4 Stainless steel heating cycle
With Plug type heater
High quality thermocouple for temperature checking

 Plug type heater more easy and convinient for changing die heads
Heating power 3~5KW
Clamping system Automatic Lubricant system for clamping system
Clamping force 80KN
Template distance 150～560mm
Max mould size 400X450mm
Platen moving stroke 520mm
Lubrication Equiped with automatic lubrication system
Electric system Summarize PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)

SIEMENS or MITSUBISHI PLC
System + TOUCH SCREEN
Operate interface Touch screen, automatic self-diagnose alarm system
Temperature control Automatic temperature control module SIEMENS OR MITSUBISHI MODULE
Electrical parts Schneider electricals & Omron relay
Electric protection Ampere overload, electric short circuit self-protection function
Parison controller

JAPAN MOOG 100 points parison controller + Moog servo Valve + stainless oil tank + oil pipes & fittings
(Optional : 10500 USD/ complete set if needed )
Invertor

DELTA (TAIWAN) 380V50HZ
One for main screw + another for lever line screw












Hydraulic system

 Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor Three phase asynchronous motor (380V,50HZ) 7.5kw
Oil pump Imported double pump
Valves JAPAN YUKEN Hydraulic valves
O-sealings


High quality O-sealings

 We provide spare parts for each sealings
Oil pipes Double layer overpressure resistant
System pressure

LP 100 bar / HP 130 bar
Threads of hydraulic block use of screw joint GE(ISO 1179)
Cooling system

Separate water cooling cycle, oil cooler cooling system
High quality Oil cooler
Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.8Mpa
Air displacement 0.8M3/min
Electromagnetic valve AIRTAC
Cooling system Summarize Separate cooling system of mould, barrel and oil system
Cooling medium Water
Water flow 80L/min
Water pressure 0.3-0.6MPa

Double Station Extrusion Blow Molding Machine , Plastic Drum Making Machine

Double Station Extrusion Blow Molding Machine , Plastic Drum Making Machine
