High Efficiency Extrusion Molding Machine , Plastic Pallet Making Machine
High Efficiency Extrusion Molding Machine , Plastic Pallet Making Machine
High Efficiency Extrusion Molding Machine , Plastic Pallet Making Machine
High Efficiency Extrusion Molding Machine , Plastic Pallet Making Machine
High Efficiency Extrusion Molding Machine , Plastic Pallet Making Machine
High Efficiency Extrusion Molding Machine , Plastic Pallet Making Machine
Specifications
Brand Name :
Eceng
Model Number :
YC65
Certification :
CE&ISO&SGS
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
30 working days
Packaging Details :
Film pack
Brand name :
Eceng
Color :
Blue
weight :
3Ton
PLC :
Mitsubishi
material :
PE
max volume :
5L
Description

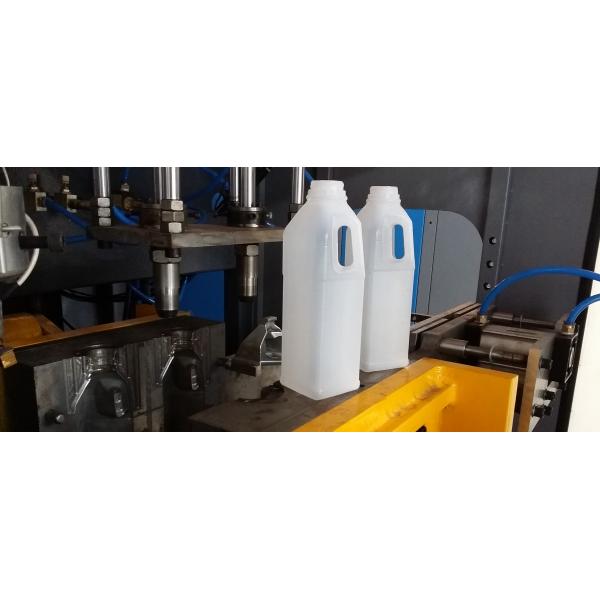

HDPE Jerry cans blow molding machine (5L~60L)

5L~60L HDPE jerry can bottles blow molding machine/ extrusion blow molding machine

ABLD90 extrusion blow moulding machine was specially designed for making plastic water tanks,plastic cans, lubricant oil bottles,plastic drums, plastic toys and other plastic containers not over 30L.

The features of this machine:

(1)It is suitable for producing PE,HDPE,PP, PVC so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 60L.

(2)Single station single die head design,very easy to operate and maintenance.

(3)Most components of the blow moulding machine are from famous world brand.

(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.

(5)Accumulation die head,MOOG parison controller equipped.

(6)Bottom blow technology make the product perfect.

(7)Auto lubricant system controlled by PLC.

Max. Product volume 60 liters
Output capacity 80~120pc/h
Screw diameter 80 mm
Screw L/D ratio 25 L/D
Screw drive power 30 KW
Screw heating capacity 16 KW
No.of heating zone 4 zones
Output of HDPE 100 KG/H
Oil pump drive power 22 KW
Clamping force 210 KN
Max.size of mold 550X650mm
Mold stroke 350-780mm
Max.die diameter 280mm
Die heating power 5.3 KW
Die heating segments 4 zones
Blowing pressure 0.8mpa
Air volume 0.8 M³/MIN
Cooling water pressure 0.3mpa
Water consumption 60 L/MIN
Technical Parameters: ( ABLD90)

electronic parts

Name

Trader

Micro computer control system

Japanese MITSUBISHI

Temperature Controller

TAIWAN YANHUA PID

Auxiliary Relay

OMRON

contactor

Schneider from France

Electric motor

Three phase 220V or 380V

Power Source

TAIWANMEANWELL

Transducer

TAIDA FROM CHINA

hydraulic parts

Name

Trader

Oil pump

TAIWANHIGH-TECH

Valve

JAPAN YUKEN

Oil pump and connection

JAPAN YUKEN

Sealed part

HALLITE

air control system

Name

Trader

Cylinder

AIRTAC
