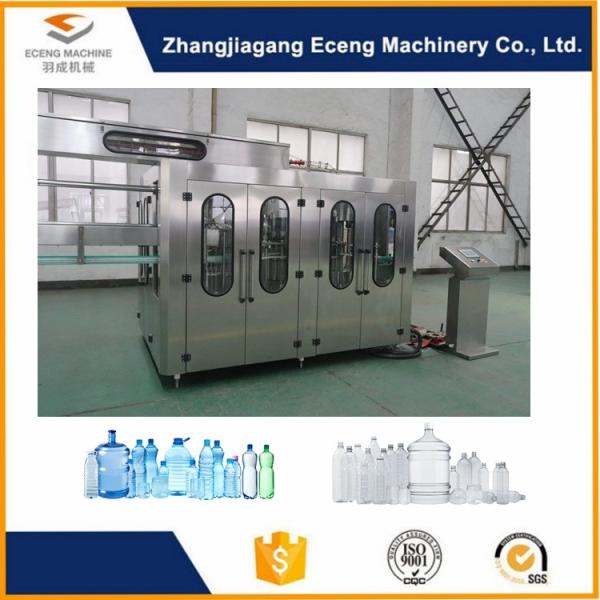

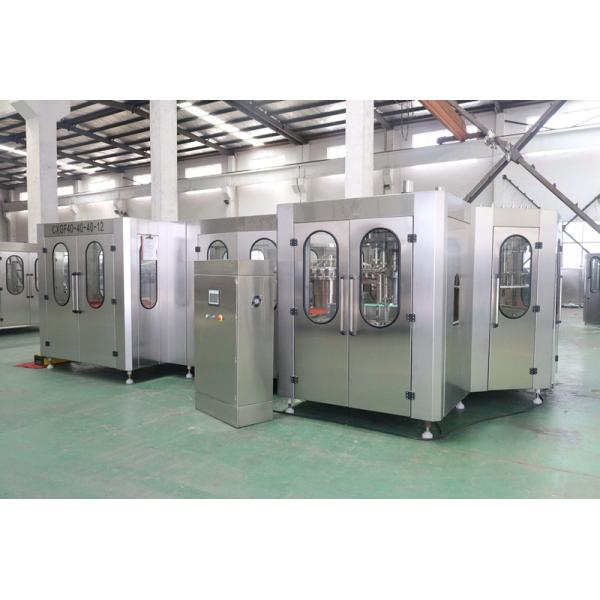

330 - 2250ML Soft Drink Filling Machine , 2.2kw Mineral Water Filling Machine
330 - 2250ML Soft Drink Filling Machine , 2.2kw Mineral Water Filling Machine
330 - 2250ML Soft Drink Filling Machine , 2.2kw Mineral Water Filling Machine
330 - 2250ML Soft Drink Filling Machine , 2.2kw Mineral Water Filling Machine
Specifications
Brand Name :
Eceng
Model Number :
CGF16-16-6
Certification :
CE&ISO&SGS
Place of Origin :
China
MOQ :
1set
Price :
Negostibale
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10sets per month
Delivery Time :
30 working days
Packaging Details :
Film pack
Dimension :
2700*2100*2500mm
capacity :
2000-36000
warrnety :
2year
weight :
2500KG
Material :
SUS304
bottle type :
0.2-2L
Description

Automatic filling machine/bottling machine/5 gallon water filling machine

1. This filling water machine is a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines.

2. The machine is easy to change the shape of bottles, which can be done by changing thethumb wheel without adjusting the height of the machine.

3. The filling water machine case and the parts contacting with the materials are made ofstainless steel which ensures the good external look and easy washing.

4. Each water filling machine element tha contacts with the liquid is made of high quality Stainless steel 304, if needed,Stainless steel is also available.

5. The water filling machine adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping.

6. Most elements of the electrical system use famous international brand, for example,Mitsubish,Omron brand .

7. The water filling machine obtain the advantages of good abrasive resistance,high stability,low failure rate, etc. The quality of the equipments reaches the advanced level of the world.

8. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

9. Easy to operate, save the cost for workers.

Technical parameter:

Model CGF14125 CGF18186 CGF24248 CGF323210 CGF404012 CGF505012 CGF606015 CGF808020
Number of washing, filling and capping heads 14-12-5 16-16-6 24-24-6 32-32-8 40-40-10 50-50-12 60-60-15 80-80-20
Production capacity(600ml) (B/H) 4000-5000 6000-7000 8000-12000 12000-15000 16000-20000 20000-24000 25000-30000 35000-40000
suitable bottle specification(mm) φ=50-110 H=170 volume=330-2250ml
Washing pressure(kg/cm2 ) 2~3
Motor power(kw) Main motor 2.2kw Main motor 2.2kw Main motor 3kw Main motor 5.5kw Main motor 7.5kw Main motor 11kw Main motor 15kw Main motor 19kw
Overall dimensions (mm) 2400×1650 ×2500 2600×1920 ×2550 3100×2300 ×2800 3800×2800 ×2900 4600×2800 ×2900 5450×3300 ×2900 6500×4500 ×2900

76800×66400

×2850
Weight (kg) 2500 3500 4500 6500 8500 9800 12800

330 - 2250ML Soft Drink Filling Machine , 2.2kw Mineral Water Filling Machine330 - 2250ML Soft Drink Filling Machine , 2.2kw Mineral Water Filling Machine
