2 Cavity Semi Automatic Pet Blowing Machine For Medicine / Cosmetics Bottles
2 Cavity Semi Automatic Pet Blowing Machine For Medicine / Cosmetics Bottles
2 Cavity Semi Automatic Pet Blowing Machine For Medicine / Cosmetics Bottles
2 Cavity Semi Automatic Pet Blowing Machine For Medicine / Cosmetics Bottles
Specifications
Brand Name :
Eceng
Model Number :
YC-5L-2
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10sets per month
Delivery Time :
15 working days
Packaging Details :
Film pack
warranty :
1 year
voltage :
220/380
Description

5liter 6liter 7liter 8liter 9liter semi automatic pet bottle machine

Model:YC-5L-2

Technical Parameter

Main machine (blowert + oven) Model type Tech data
Product Spec Max. product volume(L/cav) 5
Max. preform neck size(mm) 150
Max. product diameter(mm) 200
Max. product height (mm) 400
Cavities 2
Blow molding part Die force (KN) 120
Die stroke (mm) 320
Max. mould size(mm) 390*350
Mould thickness Adjustable
Mould spacing(mm) 500
Max. pulling stroke(mm) 400
Operation pressure(Mpa) 0.8-1.0

Operation air pressure consumption

(1tr/min)

 350
Blow pressure(Mpa) 1.2-2.8
Blow air pressure consumption (1tr/min) 300
Output(pcs/h) 1000
Machine size(LxWxH)(m) 1.56*0.7*1.9
Machine weight(KG) 700
Oven Temperature grade(rate) 8
Heating time(S) 90-200
Voltage(V) 220 or as your request
Frequency(HZ) 50/60
Total power(KW) 16
Oven Size (LxWxH) 1.45*0.65*1.15
Oven weight (KG) 330

Properties

•Controlled by KBS blowding machine computer. Operate consistently and simply

•Pneumatic elements from AIRTAC (German) and SMC (Japan)

•Energy-saving and environmentally friendly design. Mechanical units are compact and rational

•Malfunction alert and diagnostic units allow easy maintenance

•Suitable for manufacturing a variety of PET bottles: mineral water bottles, edible oil bottles, soda bottles, medicine bottle, cosmetics bottles etc

•Oven can be made according the different preform requirements of customers

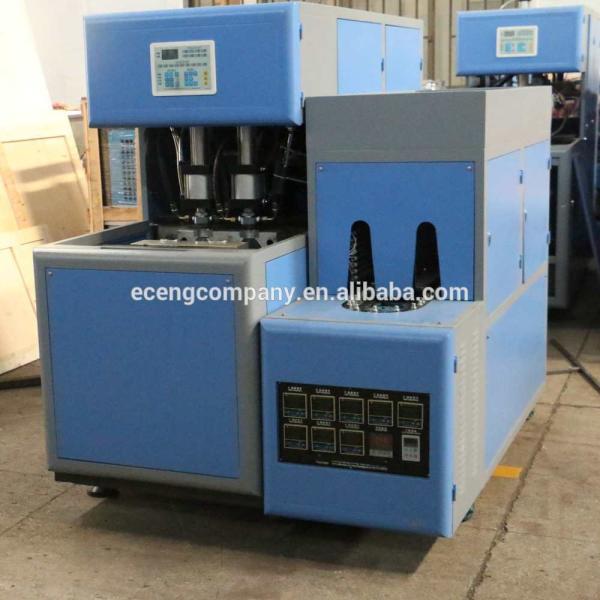

Machine Pictures

2 Cavity Semi Automatic Pet Blowing Machine For Medicine / Cosmetics Bottles
