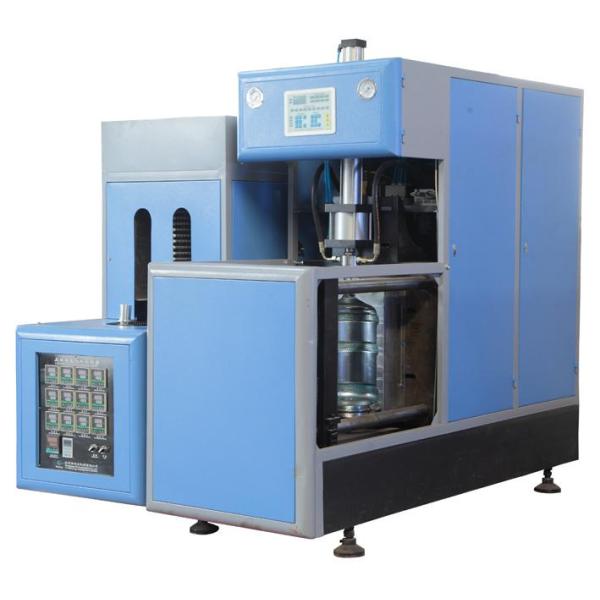

Single Cavity Water Bottle Blowing Machine , Plastic Bottle Molding Machine
Single Cavity Water Bottle Blowing Machine , Plastic Bottle Molding Machine
Single Cavity Water Bottle Blowing Machine , Plastic Bottle Molding Machine
Single Cavity Water Bottle Blowing Machine , Plastic Bottle Molding Machine
Specifications
Brand Name :
Eceng
Model Number :
YC-5L-1
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotibale
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
15workingdays
Packaging Details :
Film pack
cavity :
single
capacity :
400BPH
warranty :
1 year
power :
14KW
color :
orange
material :
pet preform
Description

Single cavity max 5 litre water bottle blowing machine(YC-5L-1)

Model type: YC-5L-1

Product max volume:5L

Suitable for blowing bottles between 1L to 5L

Necessary auxiliary devices:High pressure air compressor, Air filter.

Technical parameters

Main machine Model Type Parameter
Product Spec Max. product volume(L/cav) 5L
Max. preform neck size(mm) 150
Max. product diameter(mm) 200
Max. product height(mm) 400
Cavities 1
Blow machine Die force (KN) 120
Die stroke (mm) 320
Max. mould size(mm) 390*350
Mould thickness Adjustable
Mould spacing(mm)
Max. pulling stroke(mm) 500
Operation pressure(Mpa) 0.8-1.0
Operation air consumption (1tr/min) 350
Blow pressure(Mpa) 1.2-2.8
Blow air consumption (1tr/min) 300
Output(pcs/h) 1000-1600
Machine size(LxWxH)(m) 1.56*0.7*1.9
Machine weight(KG) 700
Oven Temperature grade(rate) 8
Heating time(S) 90-200
Voltage(V) 220 or as your request
Frequency(HZ) 50/60
Total power(KW) 16
Oven Size (L*W*H) 1.45*0.65*1.15
Oven weight (KG) 330

Semi-automatic blow moulding machine

l Use integated mic computer controler,with OMRON control chip,the response speed is very quickly and the timing very precisely.Use life durable and failture rate very low.It’s the revolutionary product of industrial control.

l High responsiveness pneumatic components,action timely and precisely

l Thorough safe operation mechanism,start-up with two hands,avoid the accident during the operation

l Infrarted heating technology,safe and energy conservation,no pollution of the environment.With the 8 rates adjustable temperature controler,make the temperature suitable for blowing.

Service:

Provide whole drawing for the perform mould and bottle mould. Free charge for word design on the mould. We can help you install the machine; from setting machine, testing, and to check the machine is on the good working condition. There is a litter charge, only for flight charge and accommodation.

Warranty:

We response for one year warranty for the machine, however, it without any human conduct. And provide one-year free spare part for client.

Up 15 million shots for the bottle mould.

3 million shots for the perform mould, cap mould

All moulds are designed by CAD/CAM.

We also can provide the drawing for the mould, help you to maintain the mould, and machine.

Delivery time:30 working days if no stock.

Payment: 30% T/T as advance payment and the balance should be paid before shipment after inspected by customer.
