Specifications
Brand Name :
Eceng
Model Number :
YC-2L-4
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
Discuss
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
30 working days
Packaging Details :
Film apck
cavity :
4
PLC :
Siemens
Capacity :
2000
color :
orange
power :
24KW
Description

PET bottle blowing machine manufacture,factory price bottle making machine,semi-auto bottle blower.

What is the details of 4 cavities blow molding machine?

Product max volume:2L

Suitable for blowing bottles between 150ml to 2000ml

Necessary auxiliary devices:High pressure air compressor, Air filter.

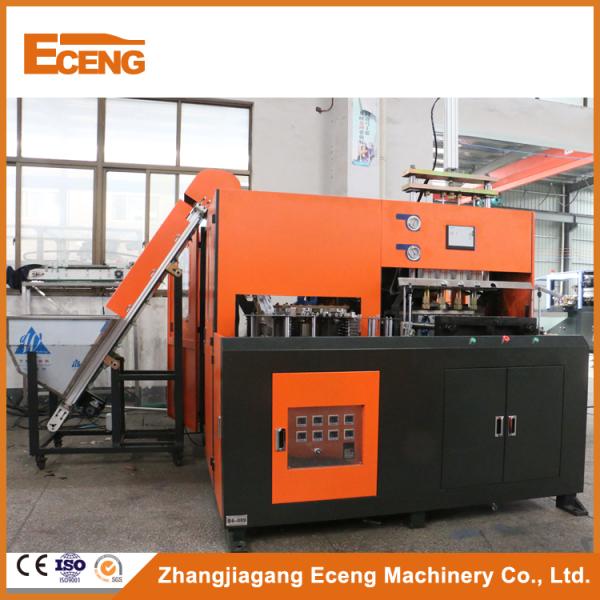

Poduct photos

Orange Semi Auto Blowing Machine , Machine For Making Plastic Bottles

What is technical parameter of our 4 cavities blow molding machine?

Main machine (blowert + oven) Model type Tech data
Product Spec Max. product volume(L/cav) 4
Max. preform neck size(mm) 100
Max. product diameter(mm) 180
Max. product height (mm) 300
Cavities 2
Blow molding part Die force (KN) 100
Die stroke (mm) 270
Max. mould size(mm) 390*345
Mould thickness Adjustable
Mould spacing(mm)
Max. pulling stroke(mm) 400
Operation pressure(Mpa) 0.8-1.0

Operation air pressure consumption

(1tr/min)

 200
Blow pressure(Mpa) 1.2-2.8
Blow air pressure consumption (1tr/min) 300
Output(pcs/h) 2400
Machine size(LxWxH)(m) 1.46*0.58*1.8
Machine weight(KG) 650
Oven Temperature grade(rate) 8
Heating time(S) 90-200
Voltage(V) 220 or as your request
Frequency(HZ) 50/60
Total power(KW) 16
Oven Size (LxWxH) 1.35*0.55*1.15
Oven weight (KG) 300

What is the advantage for our 4 cavities blow molding machine?

Special design,high rigid compound die structure

Wide adaptability, suitable for every type mould thickness

Adjust convenience

No mould rolling out

More energy conservation,no need much air supply

High burnish principal axis, with very precise polishing, light action and low noise.

Short mould stroke,quick action

All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100%

Hig dead-weigh, ensure the steady during the opeartion

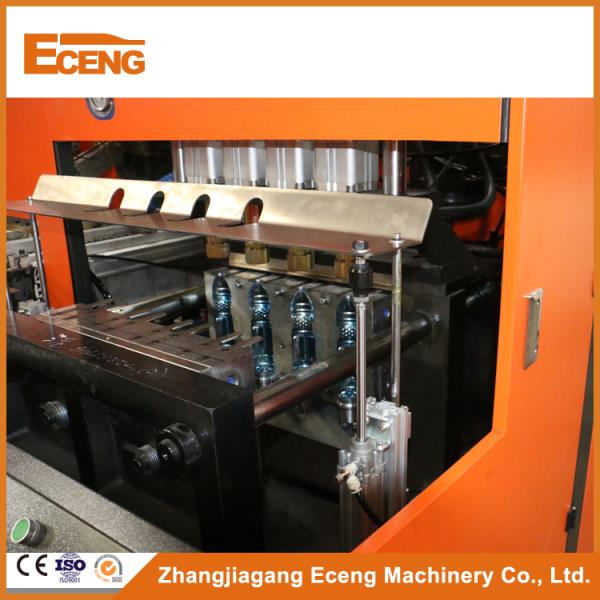

What is the parts of our 4 cavities blow molding machine?

Orange Semi Auto Blowing Machine , Machine For Making Plastic Bottles

Orange Semi Auto Blowing Machine , Machine For Making Plastic Bottles

Finished products for 4 cavities blow molding machine

Orange Semi Auto Blowing Machine , Machine For Making Plastic Bottles Orange Semi Auto Blowing Machine , Machine For Making Plastic Bottles

How about our after-sale service ?

Provide whole drawing for the perform mould and bottle mould. Free charge for word design on the mould. We can help you

install the machine; from setting machine, testing, and to check the machine is on the good working condition. There is a litter

charge, only for flight charge and accommodation.

Warranty:

We response for one year warranty for the machine, however, it without any human conduct. And provide one-year free

spare part for client.

Up 15 million shots for the bottle mould.

3 million shots for the perform mould, cap mould.

All moulds are designed by CAD/CAM.

We also can provide the drawing for the mould, help you to maintain the mould, and machine.

Delivery time:30 working days if no stock.

Payment: 30% T/T as advance payment and the balance should be paid before shipment after inspected by customer.
