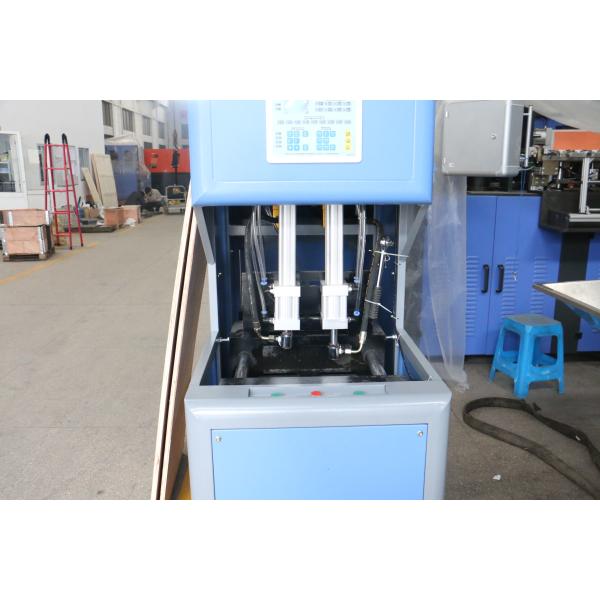

220V 2 Liter Semi Auto Blowing Machine With Adjustable Temperature Controller
220V 2 Liter Semi Auto Blowing Machine With Adjustable Temperature Controller
Specifications
Brand Name :
Eceng
Model Number :
YC-2L-2
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
30 working days
Packaging Details :
Film pack
cavity :
2
Power :
16KW
Dimension :
1.35*0.55*1.15m
weight :
550KG
Voltage :
220/380/440
Warranty :
1year
Description

2 cavity semi-automatic PET blowing machine/the star products of our company in china

Model type: YC-2L-2

Product max volume:2L

Suitable for blowing bottles between 100ml to 2000ml

Necessary auxiliary devices:High pressure air compressor, Air filter.

Technical Parameters

Main machine (blower + oven) Model type Technical data
Product Spec Max. product volume(L/cav) 2
Max. preform neck size(mm) 100
Max. product diameter(mm) 180
Max. product height (mm) 300
Cavities 2
Blow molding part Die force (KN) 100
Die stroke (mm) 270
Max. mould size(mm) 390*345
Mould thickness Adjustable
Mould spacing(mm) Adjustable
Max. pulling stroke(mm) 400
Operation pressure(Mpa) 0.8-1.0

Operation air pressure consumption

(1tr/min)

 200
Blow pressure(Mpa) 1.2-2.8
Blow air pressure consumption (1tr/min) 300
Output(pcs/h) 1000-1800
Machine size(LxWxH)(m) 1.46*0.58*1.8
Machine weight(KG) 650
Oven Temperature grade(rate) 8
Heating time(S) 90-200
Voltage(V) 220 or as your request
Frequency(HZ) 50/60
Total power(KW) 16
Oven Size (LxWxH) 1.35*0.55*1.15
Oven weight (KG) 300

Semi-automatic blow moulding machine

l Use integated mic computer controler,with OMRON control chip,the response speed is very quickly and the timing very precisely.Use life durable and failture rate very low.It’s the revolutionary product of industrial control.

l High responsiveness pneumatic components,action timely and precisely

l Thorough safe operation mechanism,start-up with two hands,avoid the accident during the operation

l Infrarted heating technology,safe and energy conservation,no pollution of the environment.With the 8 rates adjustable temperature controler,make the temperature suitable for blowing.

Service:

Provide whole drawing for the perform mould and bottle mould. Free charge for word design on the mould. We can help you install the machine; from setting machine, testing, and to check the machine is on the good working condition. There is a litter charge, only for flight charge and accommodation.

Warranty:

We response for one year warranty for the machine, however, it without any human conduct. And provide one-year free spare part for client.

Up 15 million shots for the bottle mould.

3 million shots for the perform mould, cap mould

All moulds are designed by CAD/CAM.

We also can provide the drawing for the mould, help you to maintain the mould, and machine.

Delivery time:30 working days if no stock.

Payment: 30% T/T as advance payment and the balance should be paid before shipment after inspected by customer.
