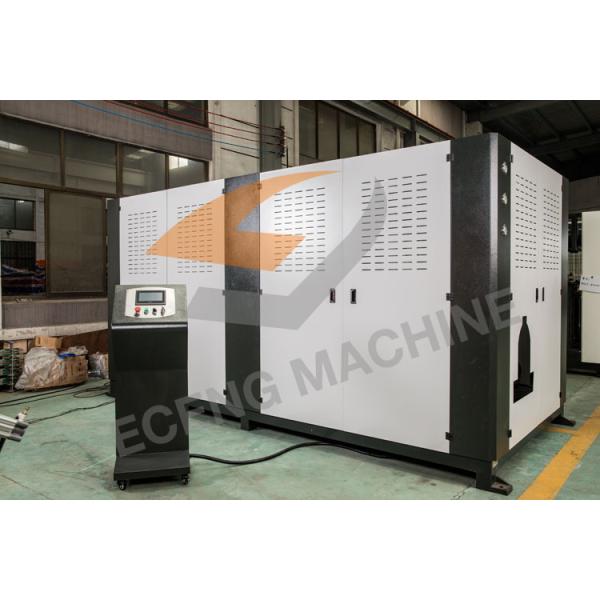

fully automatic Plastic bottle 5 gallon PET bottle blow molding machine
fully automatic Plastic bottle 5 gallon PET bottle blow molding machine
Specifications
Brand Name :
Eceng
Model Number :
ycq-20l-1
Certification :
CE&SGS&ISO
Place of Origin :
China
MOQ :
1set
Price :
50000-60000
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
10sets per month
Delivery Time :
45days
Packaging Details :
film pack
PLC :
Mitsubishi
Electric parts :
Schneider
warranty :
1 year
engineer provide :
YES
color :
customer request
Description

1). The machine adopts revolving infrared pre-heat system, it ensures pet performs
be heated evenly.

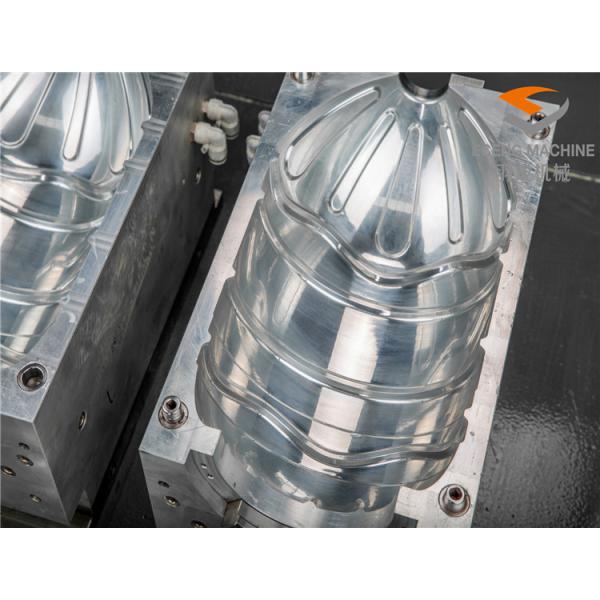

2). The machine uses mechanical-double-arm mould clamping system which ensures the mould
be closed tightly even under high pressure and high temperature.
3).The air system has been divided into two parts: Pneumatic action part and bottle
blow part to meet the different pressure requirements for the action and blow, it
can provide sufficient and steady high pressure for blowing large irregular shaped bottles.

fully automatic Plastic bottle 5 gallon PET bottle blow molding machine

Item YCQ-20L-1
Bottle type specification Cavity 1
Theory output 350
Max.volume 20L
Bottle mouth maximum overall diameter 150mm
Bottle biggest diameter 350mm
Bottle maximum height 550mm
Power specifications Light tube quantity 48pcs
Light tube power 1.5KW
Maximum heating power 72KW
All electric machine installation 75KW
Actual consumption 52.5KW
Air pressure specification Work pressure 7-9kg/c㎡
Low-pressure gas consumption 1600L/min
Blow bottle pressure 25-35kg/c㎡
Higher -pressure gas consumption 2000-3000Ltr/min
Forzen water specification Work pressure 5-6 kg/c㎡
Temperature range 10℃
Consumption 12000kcal/hr
Forzen water flow 88L/min
Machine specification Size of the machine 5.2x2.0x2.0
Weight of the machine 6ton

fully automatic Plastic bottle 5 gallon PET bottle blow molding machinefully automatic Plastic bottle 5 gallon PET bottle blow molding machinefully automatic Plastic bottle 5 gallon PET bottle blow molding machinefully automatic Plastic bottle 5 gallon PET bottle blow molding machinefully automatic Plastic bottle 5 gallon PET bottle blow molding machinefully automatic Plastic bottle 5 gallon PET bottle blow molding machine
