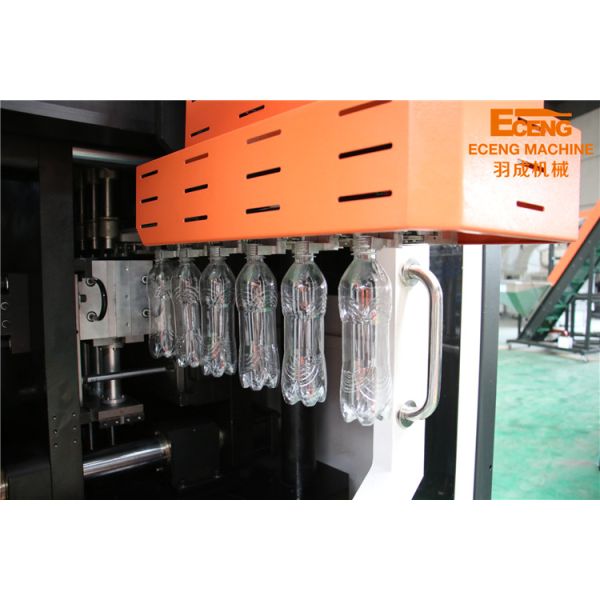

Plastic Juice Water Bottle Blowing Machine , Pet Bottle Stretch Blow Molding Machine
Plastic Juice Water Bottle Blowing Machine , Pet Bottle Stretch Blow Molding Machine
Specifications
Brand Name :
Eceng
Model Number :
k6
Certification :
ce，iso
Place of Origin :
Zhangjiagang
MOQ :
1
Payment Terms :
L/C, T/T, MoneyGram
Delivery Time :
45 days
Packaging Details :
woden package
Application :
pet bottle making machine
Condition :
new
Blow moulding type :
stretch blow moulding
Automatic :
yes
Voltage :
380V/50HZ
Weight :
6.1tons
material :
pet preform
color :
black
Description

Plastic Juice Water Bottle Blowing Machine , Pet Bottle Stretch Blow Molding Machine

The automatic blow molding machines have wider wide-mouth capability, faster production rates, and shorter changeover times. Also have features such as preferential heating or heat-setting capability. With our two stage automatic blow molding machines you can produce various different shaped containers, such as mineral water bottle, beverage bottle, cosmetics bottle, medicine bottle, pesticide bottle, edible oil bottle, milk bottle, juice bottle and many more types of PET bottles.

Plastic Juice Water Bottle Blowing Machine , Pet Bottle Stretch Blow Molding Machine

Item K4 K6 K8
Cavity 4 6 8
Theory output 6000-8500BPH 9000-12000 12000-16000
Max.volume 2L 2L 2L
Bottle mouth maximum overall diameter 28-38mm 28-38mm 28-38mm
Bottle biggest diameter 100mm 100mm 100mm
Bottle maximum height 330mm 330mm 330mm
Light tube quantity 16pcs 32pcs 32pcs
Light tube power 1.25KW 1.25KW 1.5KW
Maximum heating power 20KW 40KW 48KW
All electric machine installation 29KW 49KW 65KW
Actual consumption 30%-60% 30%-60% 30%-60%
Work pressure 5-6kg/c 5-6kg/c 5-6kg/c
Blow bottle pressure 25-45kg/c 25-45kg/c 25-45kg/c
Higher -pressure gas consumption 6000Ltr/min 8000Ltr/min 12000Ltr/min
Work pressure 5-6 kg/c 5-6 kg/c 5-6 kg/c
Temperature range 10ºC 10ºC 10ºC
Consumption 8000kcal/hr 8000kcal/hr 12000kcal/hr
Forzen water flow 30L/min 88L/min 88L/min
Size of the machine 3.6*1.6*1.9(m) 4.8x1.6x1.9 5.78x1.6x1.9
Weight of the machine 4.3ton 6.1ton 7.45ton

Plastic Juice Water Bottle Blowing Machine , Pet Bottle Stretch Blow Molding MachinePlastic Juice Water Bottle Blowing Machine , Pet Bottle Stretch Blow Molding MachinePlastic Juice Water Bottle Blowing Machine , Pet Bottle Stretch Blow Molding MachinePlastic Juice Water Bottle Blowing Machine , Pet Bottle Stretch Blow Molding Machine
