Automatic 6 Cavity 500ml Water Bottle Blowing Machine Pet Bottle Blowing Machine
Automatic 6 Cavity 500ml Water Bottle Blowing Machine Pet Bottle Blowing Machine
Specifications
Brand Name :
Eceng
Model Number :
k6
Certification :
ce , iso
Place of Origin :
Zhangjiagang
MOQ :
1
Payment Terms :
L/C, T/T, MoneyGram
Delivery Time :
45 days
Packaging Details :
woden package
Application :
pet bottle making machine
Condition :
new
Blow moulding type :
stretch blow moulding
Automatic :
yes
Voltage :
380V/50HZ
Weight :
6.1tons
material :
pet preform
color :
black
Description

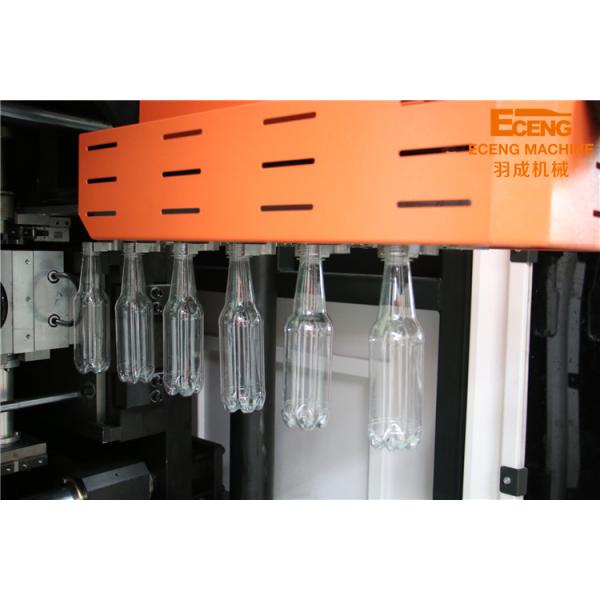

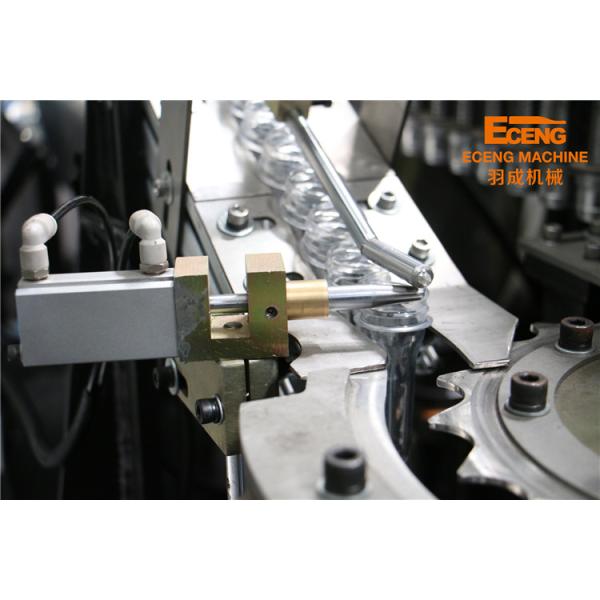

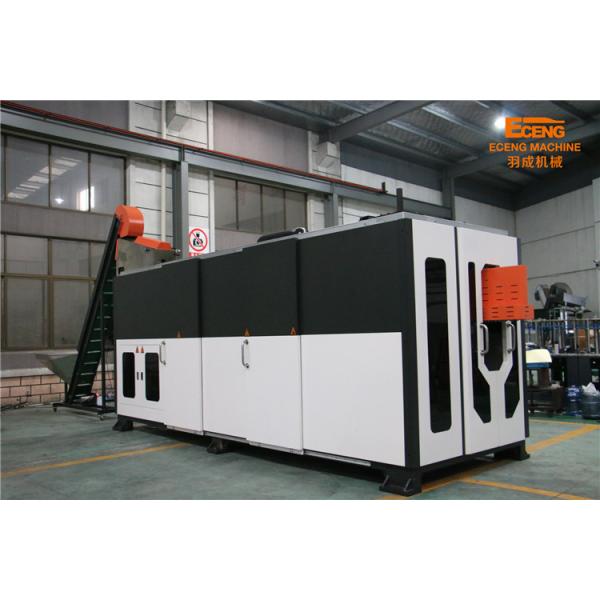

Automatic 6 Cavity 500ml Water Bottle Blowing Machine Pet Bottle Blowing Machine

1,It is suitable for blowing soft drink bottle,mineral water bottle,pharmaceutical bottle,oil bottle,cosmetic bottle,hot filling bottle.
2, It can be connected with filling machine directly.Saving the investment on bottle unscrambler.
3,It adopts high technology PLC controller to ensure the machine working properly and stable.
4,Preheater use single unit rotation heating design,perform heating center distance smaller,heating speed more faster.Comparing with old designing,our machine will save more electricity.

Automatic 6 Cavity 500ml Water Bottle Blowing Machine Pet Bottle Blowing Machine

Model K6

Bottle type specification

 Cavity 6
Max.volume 2L
Bottle mouth maximum overall diameter 28-30mm
Bottle biggest diameter 100mm
Bottle maximum height 330mm

Capacity specification

 Theory output 9000~12000BPH
Bottle type volume 500ML
Bottle type weight 17g
Bottle type Round
Power specification Light tube quantity 32pcs
Light tube power 1.25KW
Maximum heating power 40KW
All electric machine installation 49KW
Actual consumption 30%--60%

Air pressure specification

 Work pressure 5-6kg/cm2
Blow bottle pressure 25-45kg/cm2
Higher -pressure gas consumption 8000Ltr/min

Air pressure specification

 Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 8000kcal/hr
Forzen water flow 120L/min
Machine specification Machine size 5.5x1.8x1.9
Machine weight 6.1ton

Automatic 6 Cavity 500ml Water Bottle Blowing Machine Pet Bottle Blowing Machine

Automatic 6 Cavity 500ml Water Bottle Blowing Machine Pet Bottle Blowing MachineAutomatic 6 Cavity 500ml Water Bottle Blowing Machine Pet Bottle Blowing MachineAutomatic 6 Cavity 500ml Water Bottle Blowing Machine Pet Bottle Blowing MachineAutomatic 6 Cavity 500ml Water Bottle Blowing Machine Pet Bottle Blowing Machine
