K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency
K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency
K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency
K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency
K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency
K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency
K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency
K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency
K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency
K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency
K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency
K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency
Specifications
Brand Name :
Eceng
Model Number :
K6
Certification :
CE SGS ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8 Set/Sets per Month
Delivery Time :
45days
Packaging Details :
standard export wooden case or according to your requirements
Plastic Processed :
PET
Max.Bottle Height(mm) :
330 mm
Neck Diameter(mm) :
28 mm
Max.Bottle Diameter(mm) :
100 mm
Condition :
New
Blow Moulding Type :
Stretch Blow Moulding
Warranty :
1 Year, one year for free
Core Components :
Motor, Pump, Gear, Pressure vessel, Engine, Gearbox
Description
K6 12000BPH 6 Cavities High-Speed Bottle Making Machine - Perfect for High Efficiency Manufacturers


specification
Model K6
Bottle type specification
Cavity
6
Max.volume
200ml-2000ml
Bottle mouth maximum overall diameter
25-29mm
Bottle biggest diameter
100mm
Bottle maximum height
330mm
Capacity specification
Theory output
10000BPH
Bottle type volume
600ML
Bottle type weight
13.5g
Bottle type
Round
Power specification
Light tube quantity
32pcs
Light tube power
1.25KW
Maximum heating power
40KW
All electric machine installation
49KW
Actual consumption
30%--60%
Air pressure specification
Work pressure
5-6kg/cm2
Blow bottle pressure
25-45kg/cm2
Higher -pressure gas consumption
8000Ltr/min
Air pressure specification
Work pressure
5-6 kg/cm2
Temperature range
10℃
Consumption
8000kcal/hr
Forzen water flow
120L/min
Machine specification
Machine size
5.5x1.8x1.9
Machine weight
6.1ton

K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 2500 bottles per hour ,max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
K6 12000BPH 6 Cavities High-Speed Bottle Making Machine Have the following advantages
1. High Speed: The K6 12000BPH bottle making machine is capable of producing 6 cavities at a high speed, ensuring efficient production for high-volume manufacturers.
2. Accurate: This machine uses advanced technology to ensure that the bottles created are accurate, with consistent dimensions and shapes.
3. Versatile: The K6 12000BPH machine is suitable for a range of bottle sizes (up to 2000ml), making it a versatile option for manufacturers with different production needs.
4. Reliable: Designed with high-quality materials and precision components, this machine is reliable and built to withstand the demands of continuous use.
5. Easy to Use: The K6 12000BPH machine is user-friendly and easy to operate, with a simple and intuitive interface that reduces the need for extensive training.
6. Efficient: With its high-speed production and reliable operation, this bottle making machine is an efficient choice for manufacturers looking to increase their output and streamline their production processes.

K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency
K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency
K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency

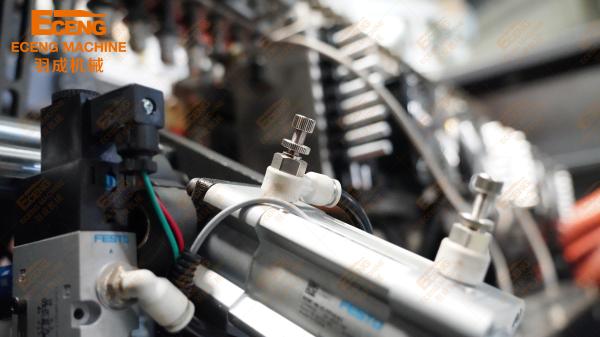

Detailed Images
K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency
K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency
K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency
Company Introduction
K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency
Packing&Shipping
K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency
FAQ
K6 12000BPH High Speed Linear Bottle Machine 6 Cavities For High Efficiency
