Specifications
Brand Name :
eceng
Model Number :
k8
Certification :
CE/ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15 Set/Sets per Month
Delivery Time :
60days
Packaging Details :
packed by wooden pallet or as customer request
Plastic Processed :
PET
Condition :
New
Power (kW) :
65
Warranty :
1 Year
Warranty of core components :
1 Year
Automatic :
YES
Service :
Full technical training
Port :
Shanghai/Ningbo
Description

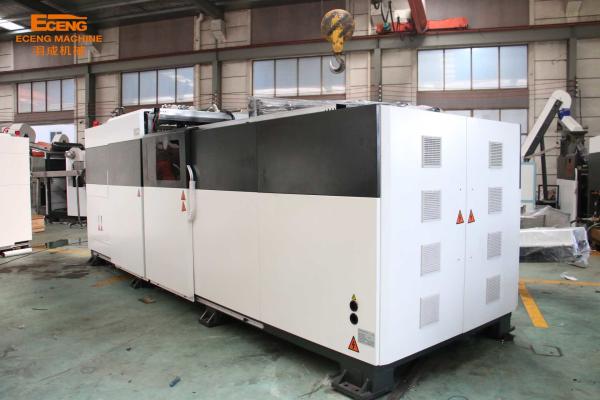

Eceng automatic 8 cavity plastic bottle making machine high efficiency of blowing bottles

Eceng Automatic Plastic Bottle Machine 8 Cavity High Efficiency Of Blowing

Item K4 K6 K8
Cavity 4 6 8
Theory output 6000-8500BPH 9000-12000 12000-16000
Max.volume 2L 2L 2L
Bottle mouth maximum overall diameter 28-38mm 28-38mm 28-38mm
Bottle biggest diameter 100mm 100mm 100mm
Bottle maximum height 330mm 330mm 330mm
Light tube quantity 16pcs 32pcs 32pcs
Light tube power 1.25KW 1.25KW 1.5KW
Maximum heating power 20KW 40KW 48KW
All electric machine installation 29KW 49KW 65KW
Actual consumption 30%-60% 30%-60% 30%-60%
Work pressure 5-6kg/c 5-6kg/c 5-6kg/c
Blow bottle pressure 25-45kg/c 25-45kg/c 25-45kg/c
Higher -pressure gas consumption 6000Ltr/min 8000Ltr/min 12000Ltr/min
Work pressure 5-6 kg/c 5-6 kg/c 5-6 kg/c
Temperature range 10ºC 10ºC 10ºC
Consumption 8000kcal/hr 8000kcal/hr 12000kcal/hr
Forzen water flow 30L/min 88L/min 88L/min
Size of the machine 3.6*1.6*1.9(m) 4.8x1.6x1.9 5.78x1.6x1.9
Weight of the machine 4.3ton 6.1ton 7.45ton

The automatic 8 cavity plastic bottle making machine is a revolutionary piece of equipment that is designed to meet the growing demand for high-quality plastic bottles. With its cutting-edge technology and advanced features, this machine is capable of producing up to 12,000-16,000 bottles per hour, making it one of the most efficient bottle making machines on the market.

One of the key advantages of this machine is its high efficiency, which makes it an ideal choice for companies looking to streamline their production processes and increase their output. With its automated operation and fast cycle times, this machine can produce a large number of bottles in a short period of time, allowing manufacturers to meet tight deadlines and maximize their profits.

In addition to its high production capacity, this machine also offers exceptional quality control, ensuring that each bottle is produced to the highest standards of hygiene and safety. Whether you're producing bottles for food or beverage packaging, cosmetics, or other applications, this machine will ensure that your products meet the highest quality standards.

Overall, the automatic 8 cavity plastic bottle making machine is an excellent choice for businesses looking to improve their production processes and increase their output. With its advanced features and cutting-edge technology, it offers unmatched efficiency, quality, and reliability, making it a valuable asset for businesses in a wide range of industries.

Eceng Automatic Plastic Bottle Machine 8 Cavity High Efficiency Of Blowing

Eceng Automatic Plastic Bottle Machine 8 Cavity High Efficiency Of Blowing

Eceng Automatic Plastic Bottle Machine 8 Cavity High Efficiency Of Blowing

Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger of high-altitude feeding, reduce labor intensity and increase production efficiency.

Eceng Automatic Plastic Bottle Machine 8 Cavity High Efficiency Of Blowing

New clamping system,upgraded on the basis of the original ones,increase mould clamping speed and output,greatly reduce mold clamping noise.

Eceng Automatic Plastic Bottle Machine 8 Cavity High Efficiency Of Blowing

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

Eceng Automatic Plastic Bottle Machine 8 Cavity High Efficiency Of Blowing

k series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.

Eceng Automatic Plastic Bottle Machine 8 Cavity High Efficiency Of Blowing

Eceng Automatic Plastic Bottle Machine 8 Cavity High Efficiency Of Blowing



Eceng Automatic Plastic Bottle Machine 8 Cavity High Efficiency Of Blowing

Eceng Automatic Plastic Bottle Machine 8 Cavity High Efficiency Of Blowing

Eceng Automatic Plastic Bottle Machine 8 Cavity High Efficiency Of BlowingEceng Automatic Plastic Bottle Machine 8 Cavity High Efficiency Of Blowing

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
