H2 Manual Hand Feeding Pet Bottle Blowing Machine 50HZ 2200BPH For Industrial Use
H2 Manual Hand Feeding Pet Bottle Blowing Machine 50HZ 2200BPH For Industrial Use
H2 Manual Hand Feeding Pet Bottle Blowing Machine 50HZ 2200BPH For Industrial Use
H2 Manual Hand Feeding Pet Bottle Blowing Machine 50HZ 2200BPH For Industrial Use
H2 Manual Hand Feeding Pet Bottle Blowing Machine 50HZ 2200BPH For Industrial Use
H2 Manual Hand Feeding Pet Bottle Blowing Machine 50HZ 2200BPH For Industrial Use
H2 Manual Hand Feeding Pet Bottle Blowing Machine 50HZ 2200BPH For Industrial Use
H2 Manual Hand Feeding Pet Bottle Blowing Machine 50HZ 2200BPH For Industrial Use
H2 Manual Hand Feeding Pet Bottle Blowing Machine 50HZ 2200BPH For Industrial Use
H2 Manual Hand Feeding Pet Bottle Blowing Machine 50HZ 2200BPH For Industrial Use
H2 Manual Hand Feeding Pet Bottle Blowing Machine 50HZ 2200BPH For Industrial Use
H2 Manual Hand Feeding Pet Bottle Blowing Machine 50HZ 2200BPH For Industrial Use
Specifications
Brand Name :
Eceng
Model Number :
H2
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Set/Sets per Year
Delivery Time :
30days
Packaging Details :
To be packed in strong new wooden cases,suitable for long distance ocean for H2 pet water bottle blow molding machine
Blow Moulding Type :
Injection Blow Moulding
Voltage :
380V/50HZ
Dimension(L*W*H) :
2.25mx1.6mx1.7m
Automation :
Automatic
Key Selling Points :
Easy to Operate
Cavity :
2
Theory output :
2200BPH
Port :
Shanghai
Description
H2 Manual Hand Feeding Pet Bottle Blowing Machine for Industrial Use
specification
Item
H2
Bottle type specification
Cavity
2
Theory output
2200
Max.volume
2L
Bottle mouth maximum overall diameter
80mm
Bottle biggest diameter
100mm
Bottle maximum height
330mm
Power specification
Light tube quantity
32pcs
Light tube power
0.75KW
Maximum heating power
24KW
All electric machine installation
27KW
Actual consumption
19KW
Air pressure specification
Work pressure
7-9kg/cm2
Low-pressure gas consumption
1000L/min
Blow bottle pressure
25-35kg/cm2
Higher -pressure gas consumption
1500Ltr/min
Air pressure specification
Work pressure
5-6 kg/cm2
Temperature range
10℃
Consumption
5000kcal/hr
Frozen water flow
30L/min
Machine specification
Machine size
2.25x1.6x1.7
Machine weight
2.5ton

Cheap Price Small Plastic Blowing Machines:
Manual feeding, motion control, infrared heating, electric or pneumatic clamping.Small size, flexibility, space saving, and output can be controlled manually.

Eceng H series PET bottle blowing machine is a professional equipment designed for cosmetic bottles, daily-chemical bottles,special-shaped bottles,small-quantity conventional bottles,which is simple to operate and has a wide range of applications.It is suitable for various diameter of PET bottles for various purposes.H series bottle blowing machine is not equipped with auto-loader.It is by manual.It is stable and reliable,with low cost,safe and practical alternative to traditional semi-automatic equipment.

Eceng Machinery was established in 2007. It has been specialized in the production of PET blow molding machines for 15 years.stretch blow moulding machines,plastic bottle making machine,plastic blowing machines,blow molding machine,blowing machine.

H2 Manual Hand Feeding Pet Bottle Blowing Machine 50HZ 2200BPH For Industrial Use
H2 Manual Hand Feeding Pet Bottle Blowing Machine 50HZ 2200BPH For Industrial Use
H2 Manual Hand Feeding Pet Bottle Blowing Machine 50HZ 2200BPH For Industrial Use

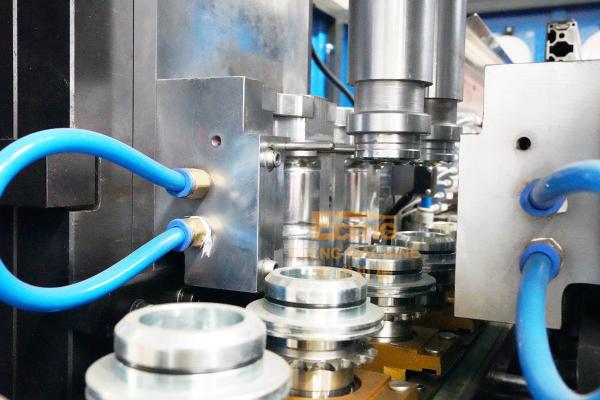

Detailed Images
H2 Manual Hand Feeding Pet Bottle Blowing Machine 50HZ 2200BPH For Industrial Use
H2 Manual Hand Feeding Pet Bottle Blowing Machine 50HZ 2200BPH For Industrial Use
H2 Manual Hand Feeding Pet Bottle Blowing Machine 50HZ 2200BPH For Industrial Use
H linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. H series linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
