Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
Specifications
Brand Name :
Eceng
Model Number :
J2
Certification :
CE SGS ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Set/Sets per Year
Delivery Time :
45days
Packaging Details :
standard export wooden case or according to your requirements
Condition :
New
Blow Moulding Type :
Stretch Blow Moulding
Automation :
Automatic
Warranty :
1 Year
Key Selling Points :
Automatic
Showroom Location :
Egypt, Philippines, Peru, Saudi Arabia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Ta
Applicable Industries :
Manufacturing Plant
Core Components :
Bearing, Motor, Pump, Gear, PLC, Pressure vessel
Description

Automatic PET Jar making machine J2 / Big mouth bottle blowing machines for candy food jar.

specification
Item
J2
Bottle type specification
Cavity
2
Theory output
1200-1300
Max.volume
5L
Bottle mouth maximum overall DIdiameter
150mm
Bottle biggest diameter
180mm
Bottle maximum height
400mm
Power specifications
Light tube quantity
32pcs
Light tube power
1.5KW
Maximum heating power
48KW
All electric machine installation
51KW
Actual consumption
35.7KW
Air pressure specification
Work pressure
7-9kg/cm2
Low-pressure gas consumption
1600L/min
Blow bottle pressure
25-35kg/cm2
Higher -pressure gas consumption
3400Ltr/min
Forzen water specification
Work pressure
5-6 kg/cm2
Temperature range
10℃
Consumption
6000kcal/hr
Forzen water flow
50L/min
Machine specification
Size of the machine
4.7x1.6x1.9
Weight of the machine
3ton

Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar


Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
Detailed Images

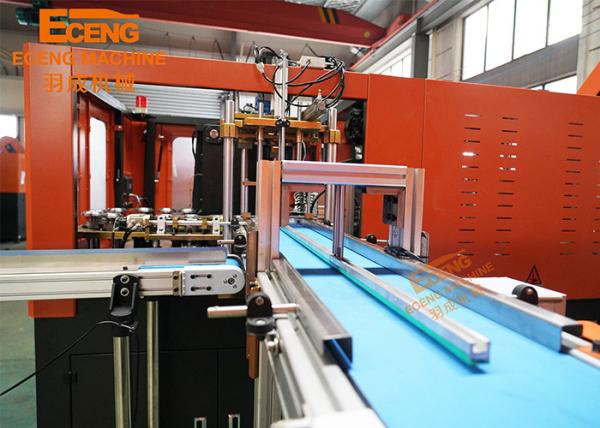

Automatic China PET jar blowing machine J2 is specialized euipment designed for wide neck PET jars.It is high automatically,wide
versatility and easy operation.It is especially suitable for the production of neck 50-180mm.J series bottle making machine is
precisely positioned and adopts advanced microcomputer PLC control system,which is more stable.
One worker can control two or three machines.Labor cost saved.
1.Strong versatility,suitable for 50-180mm diameter,high automatic degree,suitable for preform loading of jar bottle,automatically
unloading the bottle.
2.One worker can control two to three machines,high output,can be equipped with all-electric stretching and mould clamping.
3.High heat penetration and preform rotation by itself,making preform subject to even heat during preheating process.
4.Safe, reliable and unique valve position design makes blowing process easier to control
5.Safety locking device in every mechanical action to protect operator's safety.
6.Advanced automatic process flow with low cost,high efficiency,easy operation and easy maintenance.
7.With both automatic and manual operation method.
8.Use different air pressure for blowing and machine operation, energy saving and environmental protection.
9.Easy to install and start, low scrap rate.
Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
1,Edible oil PET bottle blowing machine is a two-step automatic blowing equipment specially developed for blowing 5 liters of
edible oil bottles, which can meet customers' demands for large-capacity, high-speed, fully automated production.
2,Auto-loader improves working efficiency,accurate transportation,reliable and durable,raw materials are completely free of
moisture,pollution,foreign matter, and loss during feeding process.Realize transportation process of feeding process, avoid danger
of high-altitude feeding, reduce labor intensity and increase production efficiency.
3,Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable;
heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic
temperature-removal device to ensure the constant temperature of oven.
4,J linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully
automatic type.
Company Introduction
Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
Packing&Shipping
Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
After Sales Service
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.
Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
Automatic PET Jar Making Machine J2 Bottle Blowing For Candy Food Jar
