40Bar Screw Air Compressor Booster 8.0m3 / Min For PET Bottle Blowing Industry
40Bar Screw Air Compressor Booster 8.0m3 / Min For PET Bottle Blowing Industry
40Bar Screw Air Compressor Booster 8.0m3 / Min For PET Bottle Blowing Industry
40Bar Screw Air Compressor Booster 8.0m3 / Min For PET Bottle Blowing Industry
40Bar Screw Air Compressor Booster 8.0m3 / Min For PET Bottle Blowing Industry
40Bar Screw Air Compressor Booster 8.0m3 / Min For PET Bottle Blowing Industry
40Bar Screw Air Compressor Booster 8.0m3 / Min For PET Bottle Blowing Industry
40Bar Screw Air Compressor Booster 8.0m3 / Min For PET Bottle Blowing Industry
40Bar Screw Air Compressor Booster 8.0m3 / Min For PET Bottle Blowing Industry
40Bar Screw Air Compressor Booster 8.0m3 / Min For PET Bottle Blowing Industry
Specifications
Brand Name :
Eceng
Model Number :
ZYH-8/10-40
Certification :
CE
Place of Origin :
Jiangsu, China
MOQ :
1set
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100sets per month
Delivery Time :
30days
Packaging Details :
wooden pack
Condition :
New
Air capacity :
8.0m3/min
Colling type :
Air cooling
Product name :
Booster Screw Air Compressor
Marketing Type :
New Product 2023
Core Components :
Engine, Motor, Pump
Application :
Pet Bottle Blowing Industry
Description
Product Description
high pressure air compressor for PET bottle technical specification
Item
Unit
Data
Remark
Model
ZYH-8/10-40
compressed
Air
Compressor method
Screw -booster
Cooling
Air cooling
Drive
Part 1 direct drive
Part 2 belt drive
Compress stage
2
Part 1 first stage compress
part 2 2nd stage compress
Capacity
8.0m3/min
8.0
Inlet temp
℃
≤46
Outlet temp
℃
≤46
After cooling
Motor
KW
85
Connect
1.5寸
Power
380V/50Hz
Size
mm
2600*2150*1700
Weight
kg
2800
Specification
40Bar Screw Air Compressor Booster 8.0m3 / Min For PET Bottle Blowing Industry

part 1
1.The first stage use screw compression to take full advantage of the screw's high efficiency and energy saving advantages at low pressure. screw compression system: first stage compressed the standard atmosphere to 0.8MPa.
40Bar Screw Air Compressor Booster 8.0m3 / Min For PET Bottle Blowing Industry

part 2
though piston Booster compressor compressed 0.8MPA air to high pressure 3.0MPA or 4.0MPA.
40Bar Screw Air Compressor Booster 8.0m3 / Min For PET Bottle Blowing Industry

part 3
Air cushion valve (stainless steel) Proprietary air cushion valves with low noise; The use of pagoda spring, long life, valve core force uniform, reliable work; Large circulation area, small resistance, high efficiency.
40Bar Screw Air Compressor Booster 8.0m3 / Min For PET Bottle Blowing Industry

part 4

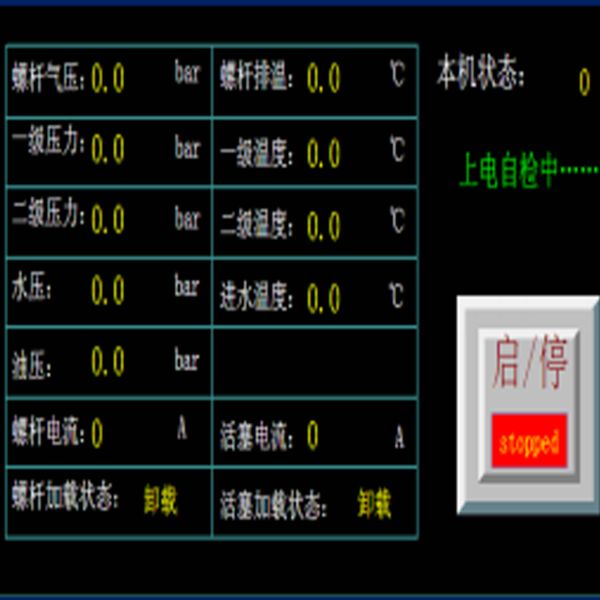

Automatic monitoring system unit operation, all operating conditions at a glance, inform the accurate location of the fault; According to the severity level of the problem, the system automatically prompts, diagnoses, alarms or stops for protection to ensure the safety of the unit.
40Bar Screw Air Compressor Booster 8.0m3 / Min For PET Bottle Blowing Industry
40Bar Screw Air Compressor Booster 8.0m3 / Min For PET Bottle Blowing Industry

part 5
The efficient post-treatment system provides clean, stable and low-temperature gas for the pressurization of the gas end to increase production and efficiency for enterprises.
40Bar Screw Air Compressor Booster 8.0m3 / Min For PET Bottle Blowing Industry

part 6
Do not need to make the foundation, directly placed on the horizontal plane can be; Easy to maintain and replace piston packing without removing cylinder.
Packing & Delivery
40Bar Screw Air Compressor Booster 8.0m3 / Min For PET Bottle Blowing Industry
40Bar Screw Air Compressor Booster 8.0m3 / Min For PET Bottle Blowing Industry
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
40Bar Screw Air Compressor Booster 8.0m3 / Min For PET Bottle Blowing Industry
FAQ

1. who are we?

Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
