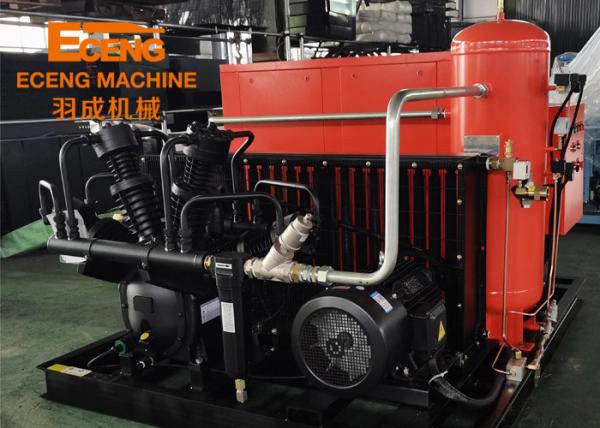

40 Bar Screw Booster Air Compressor With High Performance Portable
40 Bar Screw Booster Air Compressor With High Performance Portable
40 Bar Screw Booster Air Compressor With High Performance Portable
40 Bar Screw Booster Air Compressor With High Performance Portable
40 Bar Screw Booster Air Compressor With High Performance Portable
40 Bar Screw Booster Air Compressor With High Performance Portable
40 Bar Screw Booster Air Compressor With High Performance Portable
40 Bar Screw Booster Air Compressor With High Performance Portable
40 Bar Screw Booster Air Compressor With High Performance Portable
40 Bar Screw Booster Air Compressor With High Performance Portable
40 Bar Screw Booster Air Compressor With High Performance Portable
40 Bar Screw Booster Air Compressor With High Performance Portable
Specifications
Brand Name :
Eceng
Model Number :
ZYH-6/10-40
Certification :
CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100sets per month
Delivery Time :
30days
Packaging Details :
wooden pack
Condition :
New
Air capacity :
6.0m3/min
Colling type :
Air cooling
Product name :
Booster Screw Air Compressor
Description
Product Description
high pressure air compressor for PET bottle technical specification
Item
Unit
Data
Remark
Model
ZYH-6/10-40
compressed
Air
Compressor method
Screw -booster
Cooling
Air cooling
Drive
Part 1 direct drive
Part 2 belt drive
Compress stage
2
Part 1 first stage compress
part 2 2nd stage compress
Inlet temp
℃
≤46
Outlet temp
℃
≤46
After cooling
Motor
KW
67
Connect
1.5寸
Power
380V/50Hz
Size
mm
2200*1950*1600
Weight
kg
2300
Specification
40 Bar Screw Booster Air Compressor With High Performance Portable

part 1
1.The first stage use screw compression to take full advantage of the screw's high efficiency and energy saving advantages at low pressure. screw compression system: first stage compressed the standard atmosphere to 0.8MPa
40 Bar Screw Booster Air Compressor With High Performance Portable

part 2
though piston Booster compressor compressed 0.8MPA air to high pressure 3.0MPA or 4.0MPA
40 Bar Screw Booster Air Compressor With High Performance Portable

part 3
Air cushion valve (stainless steel) Proprietary air cushion valves with low noise; The use of pagoda spring, long life, valve core force uniform, reliable work; Large circulation area, small resistance, high efficiency.
40 Bar Screw Booster Air Compressor With High Performance Portable

part 4
Automatic monitoring system unit operation, all operating conditions at a glance, inform the accurate location of the fault; According to the severity level of the problem, the system automatically prompts, diagnoses, alarms or stops for protection to ensure the safety of the unit.
40 Bar Screw Booster Air Compressor With High Performance Portable

part 5
The efficient post-treatment system provides clean, stable and low-temperature gas for the pressurization of the gas end to increase production and efficiency for enterprises.
40 Bar Screw Booster Air Compressor With High Performance Portable

part 6
Do not need to make the foundation, directly placed on the horizontal plane can be; Easy to maintain and replace piston packing without removing cylinder.
Packing & Delivery
40 Bar Screw Booster Air Compressor With High Performance Portable
40 Bar Screw Booster Air Compressor With High Performance Portable
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
40 Bar Screw Booster Air Compressor With High Performance Portable
Our company specializes in manufacturing plastic machinery and moulds. We are mainly engaged in making automatic PET blow mould machine, semi-automatic PET blow machine, and all kinds of moulds. We have been committed to the design of plastic bottle making machine, especially the fully-automatic PET blow mould machine, from 300ml- 20L. Our machine complying with CE certification has good quality with praise by our customers. Our standard spares are free. We insist on quality first. What's more, we design kinds of plastic moulds for domestic and foreign customers. With a professional design team, we use advanced CAD / CAM / CAE system. We have gained a well-known reputation from our customers.
