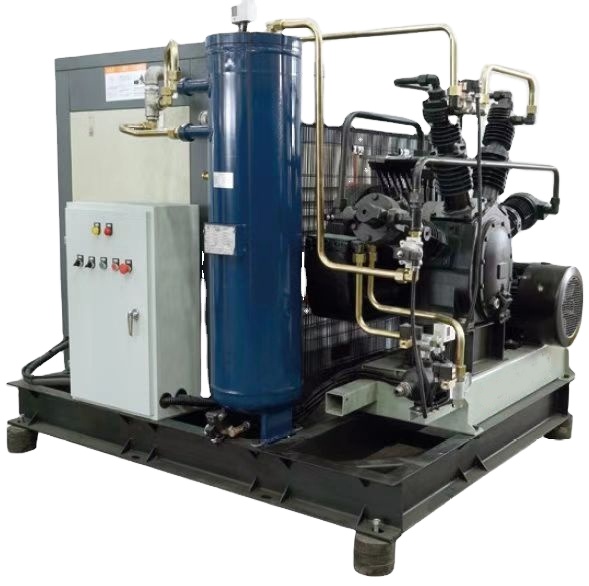

30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
Specifications
Model Number :
LZ-6/8/30
Certification :
CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100sets per month
Delivery Time :
30days
Packaging Details :
wooden pack
Condition :
New
Air discharge :
6 Nm3/min
Colling type :
Air cooling
Product name :
Booster Screw Air Compressor
Description

30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving

Specification
item
value
Applicable Industries
Manufacturing Plant, Food & Beverage Factory, Farms
Showroom Location
None
Condition
New
Type
Screw
Configuration
Stationary
Power Source
AC POWER
Lubrication Style
OIL-LESS
Mute
NO
Place of Origin
shanghai, China
Voltage
380v, 50Hz
Dimension(L*W*H)
2216×2150×1508 mm
Weight
2350 kg
Warranty
1 Year
Working Pressure
Other
Air capacity
6 Nm3/min
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Marketing Type
New Product 2022
Warranty of core components
1 Year
Core Components
Motor, Pump
Gas Type
Air
Model No
LZ-6/8/30
Air discharge
6 Nm3/min
Brief description of equipment performanc
Item
Product name specification
quantity
Brief description of the system equipment performance
1
DQ-LZ-37-China soft-start electric control box
1
The control screw and the supercharger coordinate operation, such as startup, shutdown, loading, unloading, operation
2
SA-75AZ screw machine
1
Draw up and rotate the compressed air from the ambient atmosphere.
Rated gas volume / pressure: 8.0m³
3
NTLY-10 / 13
gas-liquid separator
1
Dry, settle, buffer, and provide energy storage of compressed air
Operating pressure is 1.3Mpa, the treated gas volume is 10m³, and the volume is
4
87SZ supercharger
1
Charge the detached compressed air to a rated output pressure of 4.0MPa, with a total system displacement of 8.0m³
5
ZY 11-0200 base
1
Item 1,2,3 and 4 purification equipment
Combine the pry and pack it together
Packing & Delivery
30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
30 Bar High Pressure PET Screw Booster Air Compressor Energy Saving
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
