6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine
Specifications
Brand Name :
Eceng
Model Number :
Q6000
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Set/Sets per Year
Delivery Time :
45days
Packaging Details :
standard export wooden case or according to your requirements
Plastic Processed :
PET
Max.Bottle Height(mm) :
330 mm
Neck Diameter(mm) :
28 mm
Max.Bottle Diameter(mm) :
105 mm
Bottle Volume(ml) :
2000 ml
Condition :
New
Application :
bottle
Blow Moulding Type :
Stretch Blow Moulding
Year :
2021
Voltage :
380V,50HZ
Dimension(L*W*H) :
4.1*1.6*1.9m
Hollow part volume :
2l
High Pressure Valve Brand :
MAC
Rotary Cylinder Brand :
SMC
PLC Brand :
XINJE
Power (kW) :
52
Weight (KG) :
3900 KG
Automation :
Automatic
Warranty :
1 Year
Key Selling Points :
Automatic
Applicable Industries :
Manufacturing Plant
Marketing Type :
Hot Product 2019
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Automatic :
Yes
color :
orange
output :
6000bph
Size of the machine :
4.1*1.6*1.9
Weight :
3.9 tons
Power(W) :
52KW
Port :
Shanghai
Description
Eceng Fully Automatic 4cavity mineral water bottle 400ml Blowing Machine Price Made by the PET preform
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine
specification
Item
Q6000
Bottle type specification
Cavity
4
Theory output
6000
Max.volume
2L
Bottle mouth maximum overall diameter
28-38mm
Bottle biggest diameter
105mm
Bottle maximum height
330mm
Power specification
Light tube quantity
32pcs
Light tube power
1.5KW
Maximum heating power
48KW
All electric machine installation
52KW
Actual consumption
40%-70%
Air pressure specification
Work pressure
7-9kg/cm2
Low-pressure gas consumption
1000L/min
Blow bottle pressure
25-35kg/cm2
Higher -pressure gas consumption
3000Ltr/min
Air pressure specification
Work pressure
5-6 kg/cm2
Temperature range
10℃
Consumption
8000kcal/hr
Frozen water flow
138L/min
Machine specification
Machine size
4.1x1.6x1.9
Machine weight
3.9ton
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine
Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

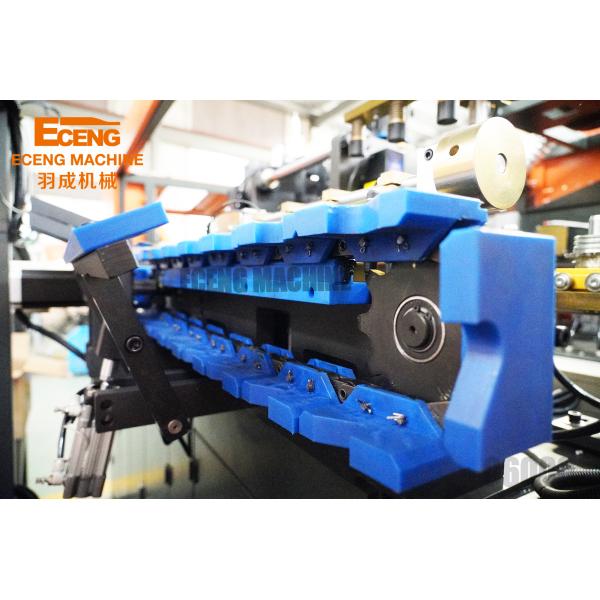

Detailed Images
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine
Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine
our advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you
Company Introduction
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine

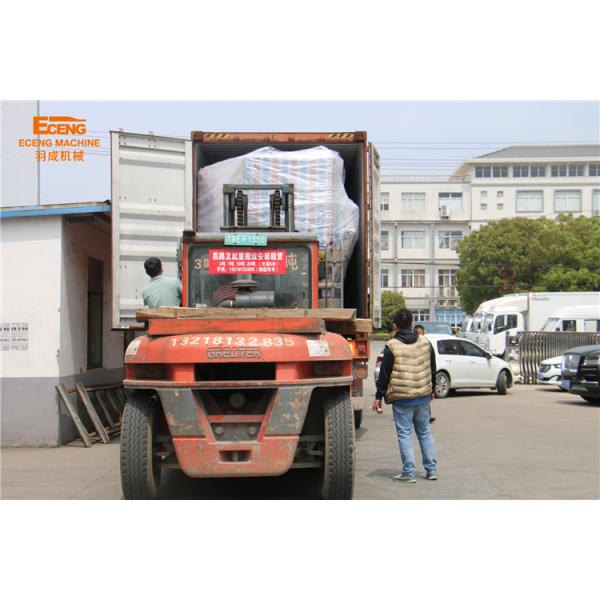

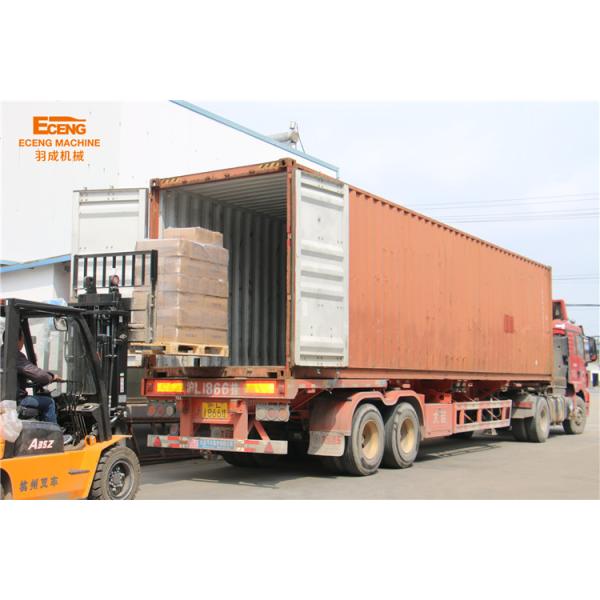

Packing&Shipping
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine
After Sales Service
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.

6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine
6000bph 4 Cavity PET Blowing Machine SMC PET Stretch Blow Molding Machine
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
