Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
Specifications
Place of Origin :
China
Brand Name :
eceng
Model Number :
J2
Certification :
ce iso
Packaging Details :
wooden package or as your request
Supply Ability :
8 Set/Sets per Month 6
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
45days
Plastic Processed :
PET
Max.Bottle Height(mm) :
400 mm
Neck Diameter(mm) :
150 mm
Max.Bottle Diameter(mm) :
150 mm
Bottle Volume(ml) :
5000 ml
Condition :
New
Application :
bottle
Blow Moulding Type :
Stretch Blow Moulding
Year :
2019
Voltage :
according to customer's request
Dimension(L*W*H) :
4.5x1.6x1.9 (m)
Hollow part volume :
1L-3L
Power (kW) :
49
Weight (KG) :
4500 KG
Automation :
Automatic
Warranty :
1 Year
Key Selling Points :
Easy to Operate
Applicable Industries :
Food & Beverage Factory
Marketing Type :
Hot Product 2019
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Weight :
3.5ton
Power(W) :
43kw
Automatic :
Yes
color :
blue and black
Key words :
candy cans making machine
Production Capacity (BPH) :
1300 BPH
Port :
shanghai
Description
Automatic Pet Blowing Molding Moulding Making Machine for Cola Water Juice Beverage Bottle
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
specification
Item
J2
Bottle type specification
Cavity
2
Theory output
1200-1300
Max.volume
5L
Bottle mouth maximum overall DIdiameter
150mm
Bottle biggest diameter
180mm
Bottle maximum height
400mm
Power specifications
Light tube quantity
32pcs
Light tube power
1.5KW
Maximum heating power
48KW
All electric machine installation
51KW
Actual consumption
35.7KW
Air pressure specification
Work pressure
7-9kg/cm2
Low-pressure gas consumption
1600L/min
Blow bottle pressure
25-35kg/cm2
Higher -pressure gas consumption
3400Ltr/min
Forzen water specification
Work pressure
5-6 kg/cm2
Temperature range
10℃
Consumption
6000kcal/hr
Forzen water flow
50L/min
Machine specification
Size of the machine
4.7x1.6x1.9
Weight of the machine
3ton
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
Automatic China PET jar blowing machine J2 is specialized euipment designed for wide neck PET jars.It is high automatically,wide versatility and easy operation.It is especially suitable for the production of neck 50-180mm.J series bottle making machine is precisely positioned and adopts advanced microcomputer PLC control system,which is more stable.
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M

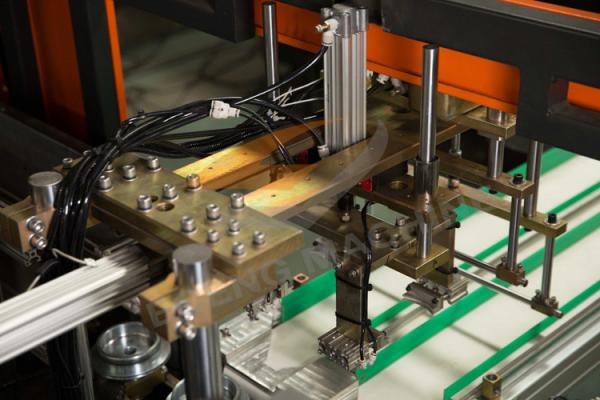

Detailed Images
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
J linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. J series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
Company Introduction
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
Packing&Shipping
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
After Sales Service
1. Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line. 2. Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures. 3. Quality guarantee We promise that our goods quality, specification and function all meet the demand of contract. One year warranty,during warranty period,All parts and components except those damaged by non-human factors are guaranteed free of charge (vulnerable parts are not included). In addition, the seller provides free spare parts and accessories for shipment with the machine. During warranty period ,the equipment is damaged due to incorrect operation bythe buyer,we provide maintenance solutions,the buyer will cover the loss and cost.during warranty period we provide technical service,which is usually solved by telephone,etc.if not,provide door-to-door service.
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
Exhibition
Eceng Beverage Bottle Automatic PET Blow Molding Machine 4.5x1.6x1.9 M
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
