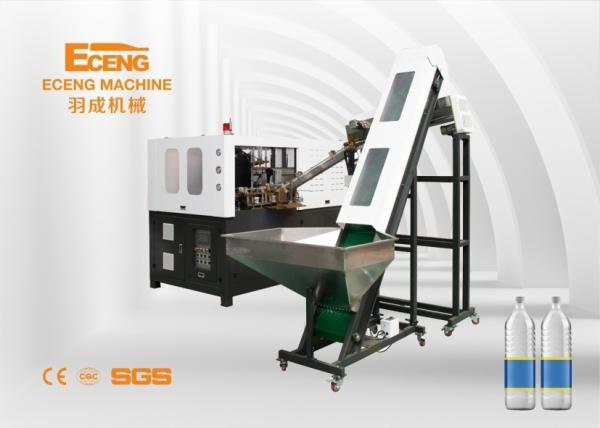

2L PET Jar Blow Molding Machine 6 Cavity Blowing 6000 PCS/HR
2L PET Jar Blow Molding Machine 6 Cavity Blowing 6000 PCS/HR
2L PET Jar Blow Molding Machine 6 Cavity Blowing 6000 PCS/HR
2L PET Jar Blow Molding Machine 6 Cavity Blowing 6000 PCS/HR
2L PET Jar Blow Molding Machine 6 Cavity Blowing 6000 PCS/HR
2L PET Jar Blow Molding Machine 6 Cavity Blowing 6000 PCS/HR
2L PET Jar Blow Molding Machine 6 Cavity Blowing 6000 PCS/HR
2L PET Jar Blow Molding Machine 6 Cavity Blowing 6000 PCS/HR
2L PET Jar Blow Molding Machine 6 Cavity Blowing 6000 PCS/HR
2L PET Jar Blow Molding Machine 6 Cavity Blowing 6000 PCS/HR
2L PET Jar Blow Molding Machine 6 Cavity Blowing 6000 PCS/HR
2L PET Jar Blow Molding Machine 6 Cavity Blowing 6000 PCS/HR
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Eceng
Model Number :
YCQ-2L-6
Certification :
ce sgs iso
Packaging Details :
wooden packages
Supply Ability :
60 Set/Sets per Week
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
45days
Plastic Processed :
PET
Application :
bottle
Blow Moulding Type :
Stretch Blow Moulding
Voltage :
according to customer's request
Warranty :
one year
Automatic :
Yes
Port :
Shanghai
Description

plastic bottle making machine

Model: YCQ-2L-6

What is the details of 6 cavity fully automatic pet blowing machine?

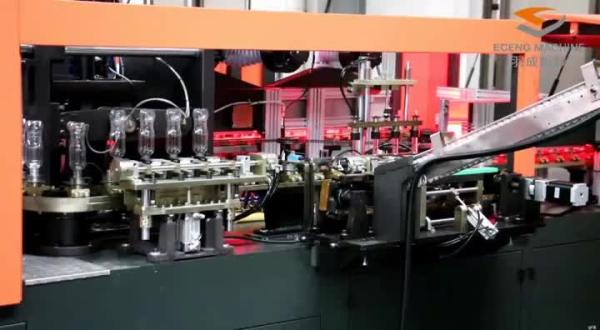

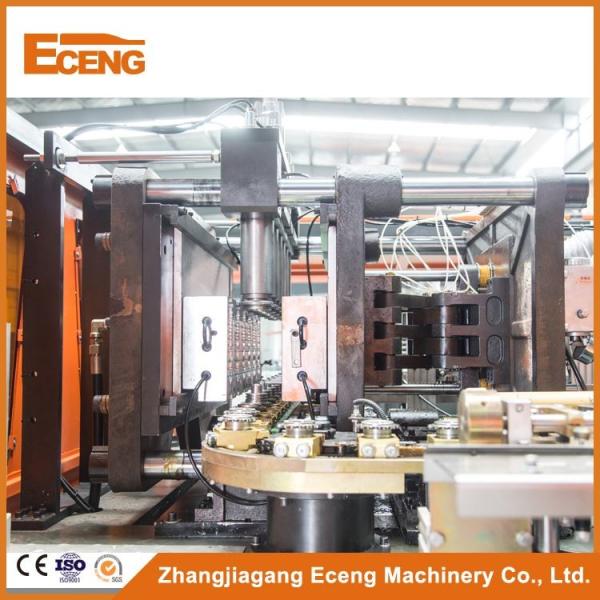

Poduct photos

2L PET Jar Blow Molding Machine 6 Cavity Blowing 6000 PCS/HR

2L PET Jar Blow Molding Machine 6 Cavity Blowing 6000 PCS/HR

What is technical parameter of our 6 cavity fully automatic pet blowing machine?

item

YCQ-2L-6

Bottle type specification

cavity

6

theory output (PCS/HR)

5000-6000

Max. volume (L)

2L

Bottle mouth maximum overall diameter (mm)

28-38mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm

Power specifications

Light tube quantity

32pcs

Light tube power

1.25kw

Maximum heating power

40kw

All electric machine installation

43kw

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600Ltr/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

4000 Ltr/min

Frozen water specification

Work pressure

5-6 kg/cm2

Temperature range

10°C

Consumption

8000kcal/hr

Frozen water flow

88Ltr/min

Machine specification

Size of the machine

6.5x1.5x1.9 (m)

Weight of the machine

4ton

What is the feature for our 6 cavity fully automatic pet blowing machine?

A. Stable performance with advanced PLC.

B. Conveying preforms automatically with conveyor.

C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.

D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.

E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.

F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.

G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

H. Strong clamping force with high pressure and double crank contact to lock the mold.

I. Two ways of operating: automatic and manual.

J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.

K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.

L. Contamination is avoided for the bottle body.

M. Ideal effect of the chilling with the chilling system.

N. Easy installation and starting

O. Low rejection rate: less than 0.3percent.

What is the parts of our 6 cavity fully automatic pet blowing machine?

machine parts name Brand Original place
Pneumatic components PARKER AND FESTO USA AND GERMANY
turning cylinder FESTO Germany
high pressure air blowing valve FESTO Germany
low pressure work valve PARKER USA
PLC controller MITSUBISHI JAPAN
full computer screen WINWIEW506L TAIWAN
high pressure muffler HENGLI CHINA
Photoelectric switch OMRON JAPAN
Switching power OMRON AND ZHENGTAI JAPAN and CHINA
circuit breaker ZHENTAI CHINA
Air switch OMRON JAPAN
relay OMRON JAPAN
finger cylinder JINGQI TAIWAN

2L PET Jar Blow Molding Machine 6 Cavity Blowing 6000 PCS/HR
