Wear Resistance Rotary Tablet Press Machine Easy For Heat Dissipation
Wear Resistance Rotary Tablet Press Machine Easy For Heat Dissipation
Wear Resistance Rotary Tablet Press Machine Easy For Heat Dissipation
Wear Resistance Rotary Tablet Press Machine Easy For Heat Dissipation
Specifications
Brand Name :
LEADTOP
Model Number :
ZP-9D
Certification :
CE certification
Place of Origin :
China
MOQ :
1 SET
Price :
4900usd /set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25sets/ month
Delivery Time :
35days
Packaging Details :
Wooden box
Model :
ZP-9D
Stations (unit) :
9
Capacity of the tablets (max tablets/hour) :
16200
Max. Thickness of tablet (mm) :
6
Maximum compression (KN) :
60
Rotary speed of the turret (rpm) :
30
Description

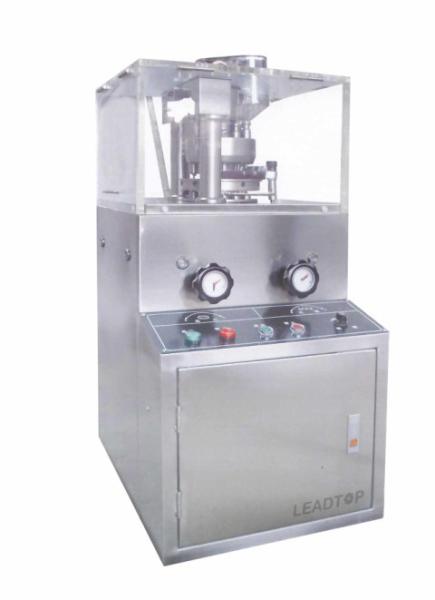

ZP-9D Rotary Tablet Pressing Machine

Application:

That machine is a single press automatic rotation for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.

Characteristics:
1.The machine is compatible with the GMP requirement.
2.The mechanism of the machine belongs to single-press type. It has a prepressing track and the pressure rollers have bearings so that it has a large pressure. It is stable in operation.
3.The punch and dies meet the international IPT standard. It can produce large tablets.
4.The tablet-pressing room is easy to clean and maintain.
5.An overload protection unit is including in the system to avoid the damage of the apparatus.
6.This machine is high degree of Mechanical and electrical integration. It is touch keyboard and screen display, the speed adjustment of the driver is controlled by the frequency conversion device, and it is used the concentrated lubricating system.
7.The transmission system is located inside the worm-gear case under the main body, and it is fully lubricated so that the pollution and the abrasion are greatly reduced.
8.With the appliance of utility model patent, the ways to fix the lower track and lower pressing wheels are especial, so that be remounted conveniently and fast.

Main Technical Data:

Stations (unit) 9 Max. Thickness of tablet (mm) 6
Maximum compression (KN) 60 Rotary speed of the turret (rpm) 30
Max. Diameter of tablet to be produced (mm) 13 Max. Filling depth (mm) 15
Capacity of the tablets (max tablets/hour) 16200 motor power (kw) 2
Net weight of the machine (kg) 260

Ware House and Show Room


Sample we produce by ZP-9D:
