Specifications
Brand Name :
LEADTOP
Model Number :
LTDG-10
Certification :
CE certification
Place of Origin :
China
MOQ :
1 set
Price :
85,000usd /set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 sets/month
Delivery Time :
35days
Packaging Details :
wooden box
Model :
LTDG-10
Original place :
Zhejiang
Power （three-phase and five-wire system） :
380V/50HZ
Power consumption :
46kw
Cooling water qty :
≥15m3/h(T≤25℃,P=0.2-0.3Mpa)
Total weight :
3800kg
Description

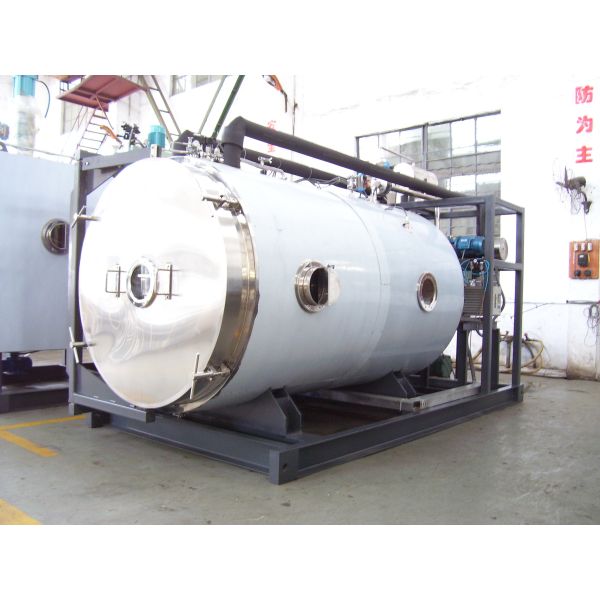

LTDG-10 Vacuum Freeze Dryer

Theory of freeze-drying

Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials

Products at solution stage are frozen through sublimation and desorption, then the solvent reduce to a certain extent, thereby preventing the formation of micro-organisms or chemical reaction between the solute and solvent that products can be preserved for a long time and maintained its nature.

Vacuum freeze-drying method is a liquid → solid → gaseous process. In freeze-drying process, "liquid bridge" between the solution particles has been frozen into "solid bridge". The relative position of particles has been fixed and does not exist surface tension on gas-liquid interface between the two particles. With the continuous distillation of solvent, "solid bridge" continuously decrease, but the the relative position between two particles will not longer change until the "solid bridge" completely disappear.

Finished Product: Dried Coconut; Dried Durian; Dried Kiwi

LTDG-10 Vacuum Freeze Dryer
Product structure Technical parameters Remarks
Standard:GMP
※ Public distribution
Power (three-phase and five-wire system) 380V/50HZ
Power consumption 46kw
Cooling water qty ≥15m3/h(T≤25℃,P=0.2-0.3Mpa)

Whole volume

Appearance size

Dry chamber and Condenser:

D=φ1300mm L=2300mm

L=5000mm W=2000mm H=2000mm

 (According to design standard)
Structure Split
Total weight 3800kg (According to design standard)
※ Drying body
Performance parameters
Design and manufacturing standards Vacuum vessel design standards
Chamber design pressure -0.1Mpa
Chamber design temperature 90℃
Chamber Vacuum leak rate 25×10-3 Pa.m3/sec
main components
Chamber material SUS304/δ5mm
Geometry Box Horizontal barrel type
Lock method Rotate and locking type by handle
Direction of opening door open right (the user can choose)
Opening angle >110°
Door materials SUS304
Box external decoration

SUS304

SUS304
The roughness of chamber and door Ra≤0.6μm
Insulation material Rubber insulation board/δ70mm
Door observation window Φ200mm observation window at central portal One piece
