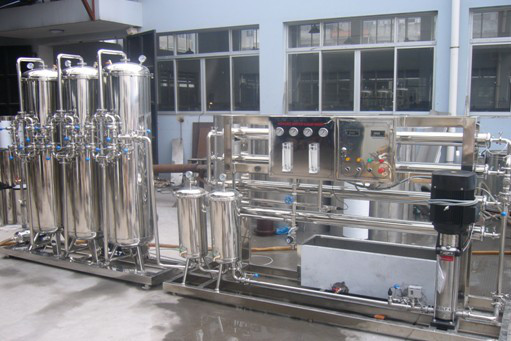

WP-1000S Reverse Osmosis pure water treatment plant

Simple Instruction:

Pure water treatment includes 2 types of system.

Pre-water treatment machine includes raw water pump, sand filter, active carbon filer, Pipes, valves, gauges and support.

RO system includes RO membranes, dosing for soft, micro filter, pipes, gauges, high pressure pump and support.

Main Technical Data:

Feature:
RO Pure water treatment plant is for producing drinking water, foods factory, beverage factory, fruit& vegetable factory etc. The machine is integrated into a group, the assembly and transportation are rather convenient.
It's simply operation and has long lifespan.
Main components: RO membrane (Hydecanme),
High pressure pump (Nanfang. China)
Electricity conduction meter
Over high or over low pressure protection facilities
304 Stainless steel.
Suitable for investment for mid-scale enterprises
The standard of supplied water
Electricity conduction rate: Nor more than 10us/cm
Bacteria no.: Not more than 20
Voltage: 380V, 50HZ
Power: 6.5kw

Installation:
Raw water pump + silica sand filter +active carbon filter +softener + micron filter + high pressure pump + RO system.

Plant process:
1. Raw water pump-- provide the pressure to silica sand filter/ active carbon filter
2. Silica Sand filter -- get rid of turbidity, suspended matter, organic matter, colloid and so on
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter and so on
4, Softener--reduce the hardness of water
4. Micron filter--prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
5. High pressure pump-- Provide the high pressure to RO membrane (at least 2.0 M pa).
6. RO system--RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of organic.
