Vial Automatic Aseptic Injectable Filling Machine With Grade A Lamina Flow
Vial Automatic Aseptic Injectable Filling Machine With Grade A Lamina Flow
Specifications
Brand Name :
LEADTOP
Model Number :
QCL-160
Certification :
CE certification
Place of Origin :
China
MOQ :
1 set
Price :
discuss personally
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 days/month
Delivery Time :
25days
Packaging Details :
wooden box
Model :
QCL-160
Ampoule size :
1ml,2ml,5ml
Broken rate :
≤0.1％
Ultrasonic power :
800W
Temperature of the circulation water :
40—60℃
Power of motor :
11kw(include electric heating)
Description

QCL-80 Automatic Aseptic Injectable Production Line for Vial and Ampule with Grade A Lamina Flow

Summary:

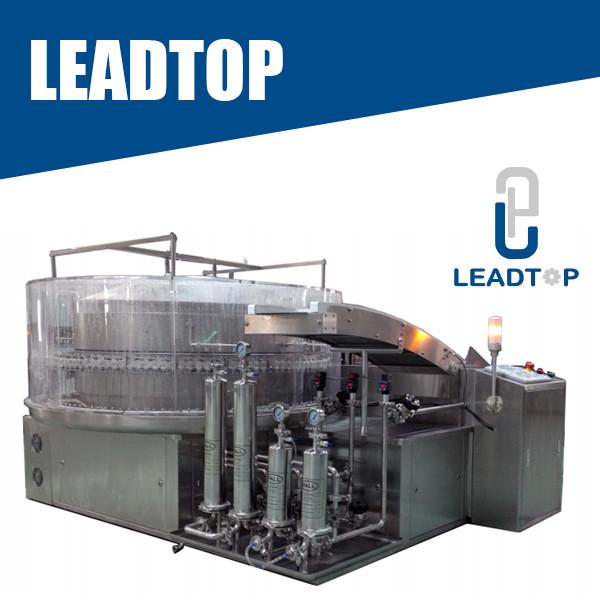

Rotary washing machine consists of infeeding section,ultrasonic section and final washing section. Containers go through these sections for completion of the whole washing process which includes 1 station for ultrasonic washing, 6 stations for interior and 2 stations for exterior cleaning.

Process Flow Diagram

Station 1: Ultrasonic washing

Station 2: Recirculated water cleaning container inside and outside

Station 3: Recirculated water only cleaning container inside

Station 4: Sterile air purging container inside

Station 5: Fresh water cleaning container inside

Station 6: Sterile air purging container inside

Station 7: Sterile air purging container inside and outside

The containers are transported to the overfilling area for ultrasonic washing via a sloping conveyor and then singularly lifted up to the final washing station by a scroll located in the water bath. The containers turned upside down via neck by the plastic prism grippers.

Finally, the containers are transferred separately to the downstream tunnel via a special tooth belt outfeed device which avoid the breakage.

Technical parameters:

Model QCL-80
Place Of Origin Zhejiang, China (Mainland)
Brand Name LEADTOP

Broken bottle rate

 ＜0.1%

Ampoule size

1ml,2ml,5ml

Ultrasonic power

800W

Temperature of the circulation water

40—60℃

Inner Air and water washing

3 times water ,3 time air washing
