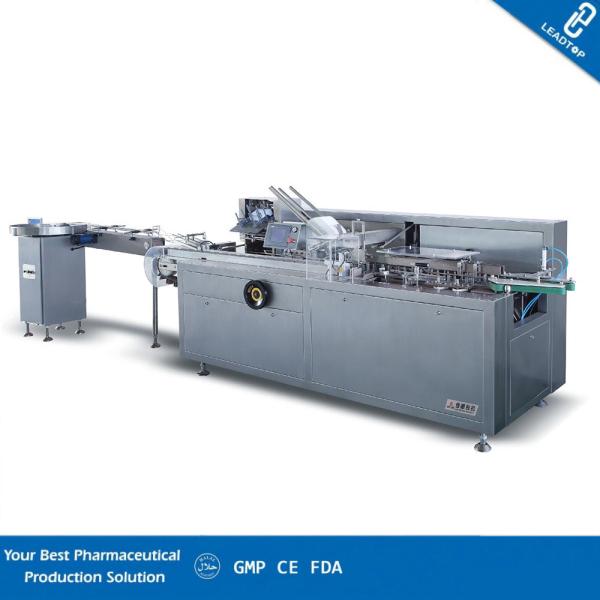

CE Approved Automatic Cartoning Machine , Tube Cartoning Machine Easy Operation
CE Approved Automatic Cartoning Machine , Tube Cartoning Machine Easy Operation
Specifications
Brand Name :
LEADTOP
Model Number :
ZH-100
Certification :
CE certification
Place of Origin :
China
MOQ :
1 set
Price :
discuss personally
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 days/month
Delivery Time :
25days
Packaging Details :
wooden box
Model :
ZH-120
Dimensions in mm :
2150mm×1140mm×1800mm (L×W×H)
Weight in kg :
1100
Steady production speed :
50-100 cartons/min
Power consumption in KW :
0.75
Air consumption :
120-160L/min
Description

ZH-100 CE approved Automatic Cartoning Machine for tube Automatic Cartoning Machine

Instruction

ZH-120D is high technology product incorporates of pneumatic-photo-electro-mechanic. It is suitable for cardboard case packaging of medicine bottles (round, square),cosmetic ,food into carton in a range. The machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4folds leaflet automatic folding, cantons in suction and open, products and leaflet put into, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three Dimensional Packaging Machine, etc to form a production chain

Feature

1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc
2. Adopt human-machine operation system.

3. Automatically displaying device for trouble, speed and finished products counting.

4. Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.

5. No products not suction leaflet, no leaflet not suction carton .

6. Automatic detection and rejection device for lacking blister goods and leaflets

7. Protecting automatically for overloading.

8. stable performance , operation is easy.

Technical parameters:

Model ZH-120
Dimensions in mm 2150mm×1140mm×1800mm (L×W×H)
Weight in kg

1100
Steady production speed

50-100 cartons/min

Grammage

Between 60-70g/m2

Size range

(80-250) ×(90-170)mm (L×W)

Fold range

(1-4 )fold

Standard power supply

220V – 50Hz

CE Approved Automatic Cartoning Machine , Tube Cartoning Machine Easy Operation
