DPP -88 Medical Blister Packaging Machine Pharmaceutical Industry Low Noise
DPP -88 Medical Blister Packaging Machine Pharmaceutical Industry Low Noise
DPP -88 Medical Blister Packaging Machine Pharmaceutical Industry Low Noise
DPP -88 Medical Blister Packaging Machine Pharmaceutical Industry Low Noise
DPP -88 Medical Blister Packaging Machine Pharmaceutical Industry Low Noise
DPP -88 Medical Blister Packaging Machine Pharmaceutical Industry Low Noise
DPP -88 Medical Blister Packaging Machine Pharmaceutical Industry Low Noise
DPP -88 Medical Blister Packaging Machine Pharmaceutical Industry Low Noise
Specifications
Brand Name :
LEADTOP
Model Number :
DPP-88
Certification :
CE certification
Place of Origin :
China
MOQ :
1 set
Price :
discuss personally
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 days/month
Delivery Time :
25days
Packaging Details :
wooden box
Model :
DPP-88
Capacity :
45cutting/min
Packaging Type :
Alu/PVC and Alu/Alu Package
Control System :
Micro Computer
Feeding :
Universal feeder
Power :
2.2kw
Description

DPP -88 Medical Blister Packaging Machine Pharmaceutical Industry Low Noise

Product Description

The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in large & medium pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce large quality and single product. Both Alu Alu and Alu PVC are available by changing mould!

Functions

1.Travel scope can be adjusted.

2.Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.

3.The material is fed automatically. The mould and feeder can be designed as user’s requirements.

4.Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.

5.Adopt the equipment of trace pressing, batch number printing and scarp-collecting.

6.Stepping motor drives and tow materials.

7. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.

Technical Data

MODEL: 88
Blanking frequency (cutting): 15-40
Sheet's quantity of one blanking (sheets): 1 (depends to your blister size)
Capacity (blisters/hour): 900-2100
Adjustable scope of feed travel: (mm) 10-110
Max Forming depth (mm) PVC: 120*110*15
Capacity of air compressor(m3/min): ≥0.36
Power supply (KW): 220V AC, 30 Hz, Three Phase (Depend on your requirement.
Weight (kg): 650Kg

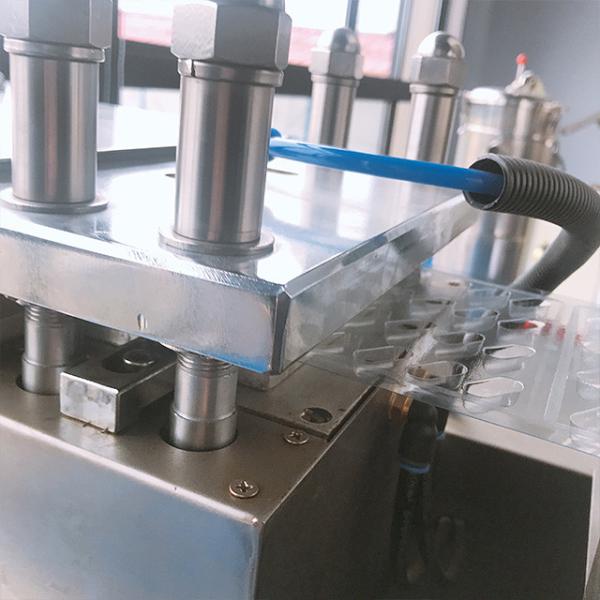

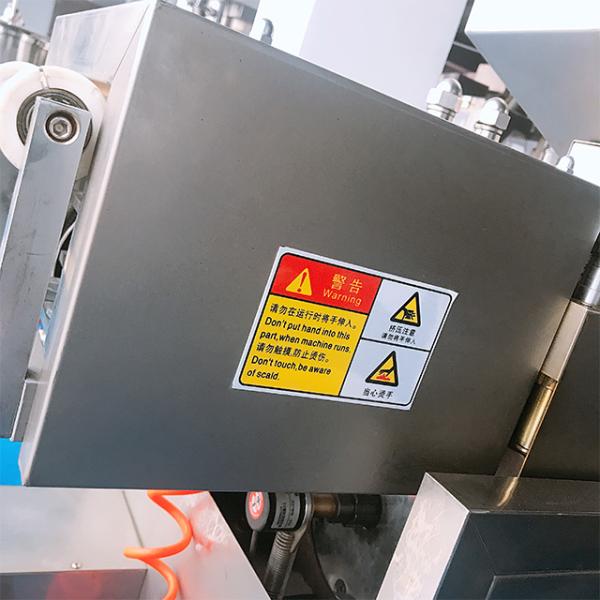

Machine Details

DPP -88 Medical Blister Packaging Machine Pharmaceutical Industry Low Noise

DPP -88 Medical Blister Packaging Machine Pharmaceutical Industry Low Noise

DPP -88 Medical Blister Packaging Machine Pharmaceutical Industry Low Noise

Our Services

1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)
