High Speed Rotary Tablet Press Machine Pharma Machinery With Low Noise
High Speed Rotary Tablet Press Machine Pharma Machinery With Low Noise
High Speed Rotary Tablet Press Machine Pharma Machinery With Low Noise
High Speed Rotary Tablet Press Machine Pharma Machinery With Low Noise
High Speed Rotary Tablet Press Machine Pharma Machinery With Low Noise
High Speed Rotary Tablet Press Machine Pharma Machinery With Low Noise
High Speed Rotary Tablet Press Machine Pharma Machinery With Low Noise
High Speed Rotary Tablet Press Machine Pharma Machinery With Low Noise
Specifications
Brand Name :
LEADTOP
Model Number :
ZP-31D
Certification :
CE certification
Place of Origin :
China
MOQ :
1 set
Price :
discuss personally
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 days/month
Delivery Time :
25days
Packaging Details :
wooden box
Model :
ZP-31D
Capacity :
75,000tablets/hour
Material Consist :
SS304 (SS316 is optional)
Max. Thickness :
9mm
Power Supply :
380V 50Hz three phase (depend on your requirement)
Usage :
round tablets,square,oval,ring or other irregular shape.
Description
High Speed Rotary Tablet Press Machine Pharma Machinery With Low Noise

ZP-33 Rotary Model Low cost tablet press machine

Simple Instruction:

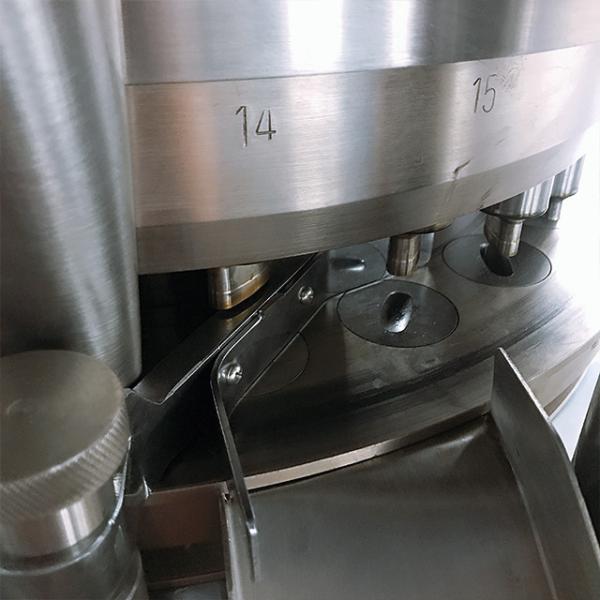

This machine is designed for pressing round tablets from various kinds of granular materials.It is primary machine to fit batch production of tablets.The mechanism of the machine belongs double press type. It consists of two sets of feed assemblage and press roller unit. The turret carries 33sets of punches and dies, so 66 tablets Will be pressed for each rotation of the turret.During operation, the speed of the turret rotation,the depth of the filling material and the thickness of the tablets can be adjusted. The mechanical buffer unit will prevent punches and apparatus from overload damage. A powder suction unit is attached to take in residual powder during the operation,so that the blockage by the residual powder can be eliminated and the collected powder material can be reused. This machine has won the Fine Quality Product Prize awarded by China National Medical Management Bureau.
Main Technical Data
Dies 33sets
Max.Pressure 40kn
Max.Dia.of Tablet 12mm
Max.Depth of Fill 15mm
Max.Thickness of Tablet 6mm
Turret Speed 11-28r/min
Production Capacity 43,000-110,000pcs/hour
Motor 2.2kw 960r/min380/50v/hz
Overall Size 930*900*1600mm
Net Weight 850kg
