Specifications
Brand Name :
LEADTOP
Model Number :
LTRG-60A
Certification :
CE certification
Place of Origin :
China
MOQ :
1 set
Price :
discuss personally
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 days/month
Delivery Time :
25days
Packaging Details :
wooden box
Model :
LTRG-60A
Tube Material :
Aluminum Tube
Tube Diameter :
Dia.5mm-50mm
Tube Length :
50-240mm (customizable)
Filling Volume :
5-250ml/piece (Adjustable)
Filling Accuracy :
≤±1%
Description

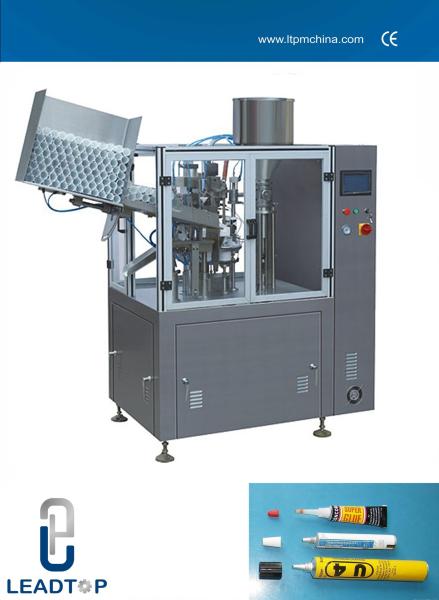

Fully Automatic Tube Filling Machine , Tube Sealing Machine High Filling Accuracy

1. Simple and user-friendly operation. Combination of the high quality programming controller and button. Comprehensive understanding of the stepless speed regulation, parameters, output counting, pressure indication, fault display and other operating conditions.
2. Automatic working process from tube loading to finished product output. Autometic tube feeding, automatically finish tube feeding, photoelectric sensor poistioning,inert gases filling (optional), material filling , sealing,batch number printing,finished product output.
3.High precision poistioning system controlled by a photoelectric light sensor, reducing colour difference between the tube and color patc.
4.External adjust site, position digital display, convinient and accurate to adjust, suitable for mass production with various sizes and various catogories.
5.Mechanical, photoelectron, electric, pheumatic intergrative controlling, no tube no filling function;warning if tube error positioned or low presssure, automatic stop if opening the protective door.
6.Customized manufacture according to customer’s samples, factory price with superior quality.

Main technical parameters
Model LTRG-60
Tube Material Plastic tube, laminated tube,Aluminum Tube
Tube Diameter Φ5mm-Φ50mm
Tube Length 50-240mm (customizable)
Filling Volume 5-250ml/piece (Adjustable)
Filling Accuracy ≤±1%
Product Capacity (Pcs/min) 60pcs/min
Air Supply 0.55-0.65Mpa
Motor Power 4kw (380V/220V 50Hz)
Heat Sealing Power 5kw
Overall Dimension(mm) 2807*1240*1900mm (L*W*H)
Machine Weight (kg)

1100kg
