Specifications
Brand Name :
LEADTOP
Model Number :
ZP-5
Certification :
CE certification
Place of Origin :
China
MOQ :
1 set
Price :
discuss personally
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 days/month
Delivery Time :
25days
Packaging Details :
wooden box
Model :
ZP-5
Application :
Pharmaceutical
Material :
SUS304
Warranty :
1year
Usage :
Tablet Production
Capacity :
10000tablets/hour
Description

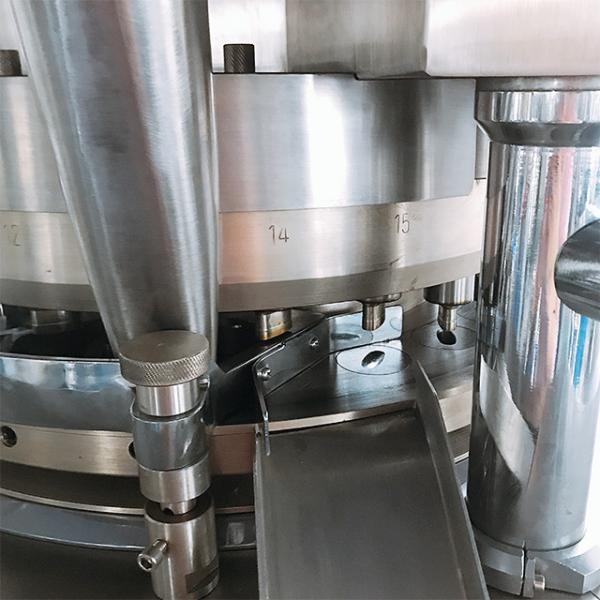

Small Rotary Tablet Compression Machine , Milk Candy Pill Press Machine

1. Application:

That machine is a single press automatic rotation for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.

2. Features:

1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.

2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.

3. It is adopts the import Frequency Timing with Electromagnetism Clutch.

4. The system of Hydraulic Pressure keep the working pressure under steady, when the pressure over-loading, it will be stopped the machine automatically.

5. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.

6. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust

Stations (unit) 5 Thickness of the die (mm) 28
Maximum compression (KN) 80 The diameter of the circle of the central pitch of upper &lower punches on the turret 320mm
Max. Diameter of tablet to be produced (mm) 13 Rotary speed of the turret (rpm) 10-40
Max. Filling depth (mm) 22 Capacity of the tablets (max ten thousand tablets/hour) 2.5
Max. Thickness of tablet (mm) 6 Area to occupy (mm 2 ) 930x950
Diameter of the upper/lower shank (mm) 32 Height of the machine (mm) 1550
Length of the upper shank (mm) 175 motor power (kw) 2
Length of the lower shank (mm) 183 Net weight of the machine (kg) 800
Diameter of the die (mm) 36

Packaging & Shipping

Packaging Details:ZP-5 Rotary Mosaic Tablet Press wrapped with strech film packed into export standard wooden case for anti moisture can afford long time sea shipment

Delivery Detail:within 25days after receive your deposit

Small Rotary Tablet Compression Machine , Milk Candy Pill Press Machine

Our Services

1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)
