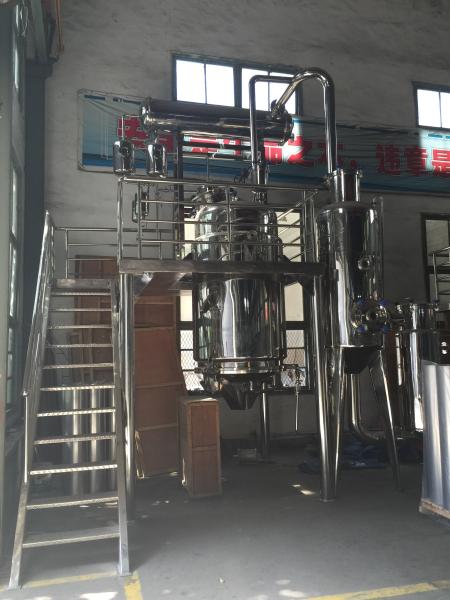

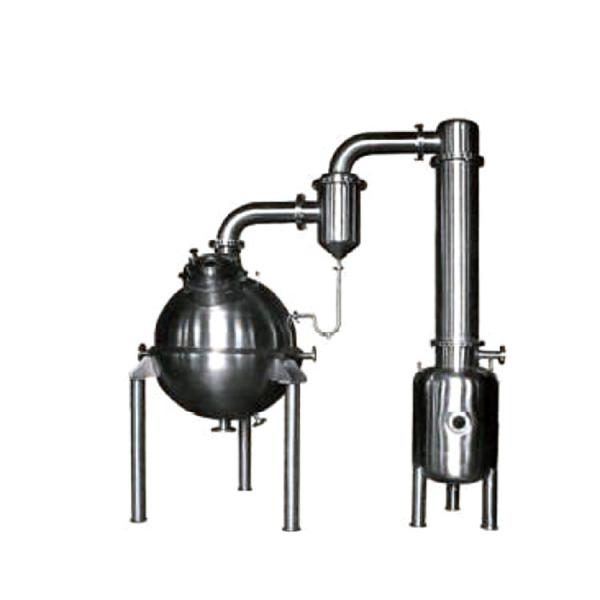

LTN Series High Efficient Herb Extraction Machine , Plant Extraction Equipment

Performance and characteristic:

Traditional Chinese medicine hot backset current low temperature draw low temperature concentrate unit comprehensive backset current, ooze and filter drawing, adverse current and hot backset current extraction and concentrate four kinds of principles. abstraction, concentrate two processes go on at the same time, one finish traditional medicine draw, concentrate the new craft of traditional Chinese medicine, take to change the draw pot keep high temperature with atmosphere fry the craft of boiling, utilize vacuum to shoulder proceed low temperature draw and low temperature concentrate, make working temperature to draw pot control in 60-80°C, concentrate temperature control in 50-70°C, guarantee crude drugs effective composition the distillation loss. Meanwhile draw and concentrate produced two steam enter backset current condenser become hot condensation liquid, falling back to and drawing it the pots, add to the crude drugs as the new solvent, the new solvent is passed the crude drugs layer from top to bottom, having played a oozing and filtering dynamically role, the soluble material which dissolves the crude drugs reaches the draw pot bottom, enter the concentrating device to concentrate again. According to practical experience and study for many years, hot condensation liquid of backset current invite within 2.5-3 hours drawing former solvent of pot all change once, can keep a higher density to the draw pot crude drugs in unit time.

Advantage
1) Quality of distilled medicines is greatly improved. The period for distillation is short, and temperature can be controlled automatically, so quality of distilled materials can be improved greatly.

2) Highly automatic. Temperature, pressure, flow, liquid level and concentration can be set and in automatic control. It is easy to operate, stable in Performance. Allinstru ments, meters, executive devices and PLC are of famous brands from foreign countries. Therefore they are highly reliable.

3) Inlet and outlet of materials are made at one time in the heating concentrator. So agglomeration and solidification are not likely to happen. Specific gravity of concentration liquid can be 1.1-1.3. To special materials (likely to agglomerate and solidify), natural cycling can be changed into compelled cycling for satisfying customer’s requirements.

4) New technolgies and new materials are utilized for excellent performance of unit. The areas of the unit contacting with medical liquids and solvents in instruments, equipments and pipes, are made of superior stainless steel.

5) There are no any dead corners inside. Mirror is polished. It is easy to clean. The sealing of bottom cover is of air pressure seal to improve reliability. Distillation tank has two filtering layers to prevent jamming. Distillation tank, separator are attached with dual-purpose bubble eliminator.

6) Seamless fine and smooth pipes are adopted in condenser, they have good performance in heat transfer. Heaters and industrial control computers are attached in the system to make its adaptability, reliability and stability in performance and operation be in the leading place in China.

Machine Main Technical Data:
