LTDG -100 Vacuum Freeze Drying Machine , Fruit Dryer Machine High Efficiency
LTDG -100 Vacuum Freeze Drying Machine , Fruit Dryer Machine High Efficiency
LTDG -100 Vacuum Freeze Drying Machine , Fruit Dryer Machine High Efficiency
LTDG -100 Vacuum Freeze Drying Machine , Fruit Dryer Machine High Efficiency
LTDG -100 Vacuum Freeze Drying Machine , Fruit Dryer Machine High Efficiency
LTDG -100 Vacuum Freeze Drying Machine , Fruit Dryer Machine High Efficiency
LTDG -100 Vacuum Freeze Drying Machine , Fruit Dryer Machine High Efficiency
LTDG -100 Vacuum Freeze Drying Machine , Fruit Dryer Machine High Efficiency
Specifications
Brand Name :
LEADTOP
Model Number :
LTDG-100
Certification :
CE certification
Place of Origin :
China
MOQ :
1 set
Price :
discuss personally
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 days/month
Delivery Time :
25days
Packaging Details :
wooden box
Item Name :
Fruit Drying Machine
Area of the heat shelf :
110.9 square meter
Tray Area :
101 square meter
The Total Volume of dehydration :
2000 kg/batch
Heating mode :
Radiation
Nominal Area :
100 square meter
Description

LTDG-100 Vacuum Freeze Drying Machine Fruit Drying Machine

Product Description

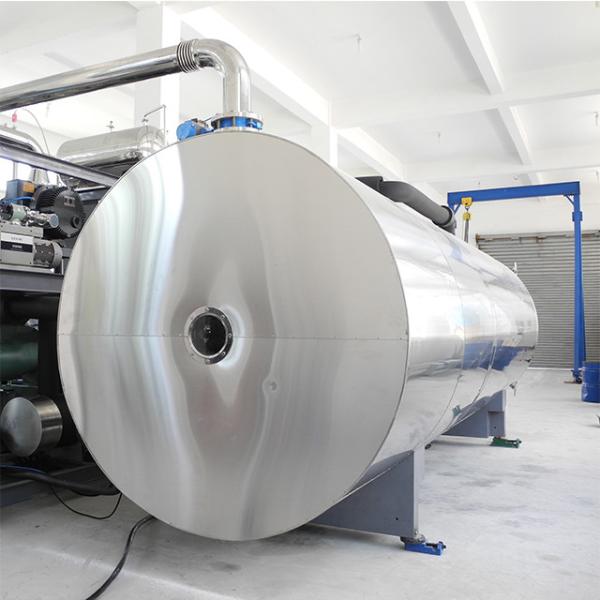

The Dry case is designed according to vacuum vessel of international standard. Case shape is horizontal cylinder. Exterior has multitasked stiffener to strengthen. Test the vacuum air impermeability after welding. Silicone rubber is used to seal between the drying case and the case door. Sight glass with light is set on the door. Hanger rail is set on the drying case to take the products get in and out.

****Structure horizontal cylinder with stiffener Design standard vacuum vessel design
****Material: SUS or Q235A Leakage rate 25Pa×L/S (depend on Clients requirement)

Technical Data
Freeze Drying machine Unit Production for Batch
LTDG-1 LTDG-50 LTDG-75 LTDG-100
Nominal Area m2 1 50 75 100
Capacity Area of the heat shelf m2 1.08 59.9 89.9 110.1
Tray Area 1.02 50.2 75.8 101
Tray Size mm 780*510*37
Pallet No.*Skip 6pcs*1 64pcs*2 64pcs* 64*4
Total Volume Dehydration (Max Kg/batch 15 1000 1500 2000
Basic Parameter Heating Shelf Width mm 540
Length mm 1630 3260 4890 6520
Number 17*2
Volume of Drying Library m 2200*4760 2200*7390 2200*10020 2200*12650
Heat Mode Radiation
Heating Shelf Space 75
Heating Shelf Range °C Room Temperature-120°C
Heating Shelf Cooling rate °C/min ≥5°C/min
Heating Shelf heating rate °C/min ≥3°C/min
Condenser Lowest Temperature °C ≤-45°C
System Lowest Pressure Pa ≤13.3
Pumping Rate min 10.01*105Pa-133Pa≤15min
Basic Supply Cooling Water qty: ≤30°C, 0.15-0.2MPa m3/hr 0.9 30 48 68
Total Power kw 8 75 100 160
Steam Consumption L/hr 220(100) 450(200) 670(280) 900(340)
Compressed air consumption:07-1.0Pa.0.9 L/hr 0.45
Water Consumption: 50°C, 0.10-0.20MPa kg/batch 5 10 10 15
Nominal Area m2 1 50 75 100
Matching Cold Storage Cooling Water qty: ≤30°C, 0.15-0.2Pa m3/hr 0.9 8 10 13
Total Power kw 8 12 19 23

Our Services

1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)
