Cosmetics Inner Heating Plastic Tube Filling And Sealing Machine
Cosmetics Inner Heating Plastic Tube Filling And Sealing Machine
Cosmetics Inner Heating Plastic Tube Filling And Sealing Machine
Cosmetics Inner Heating Plastic Tube Filling And Sealing Machine
Cosmetics Inner Heating Plastic Tube Filling And Sealing Machine
Cosmetics Inner Heating Plastic Tube Filling And Sealing Machine
Cosmetics Inner Heating Plastic Tube Filling And Sealing Machine
Cosmetics Inner Heating Plastic Tube Filling And Sealing Machine
Specifications
Brand Name :
LEADTOP
Model Number :
LTRG-60
Certification :
CE certification
Place of Origin :
China
MOQ :
1 set
Price :
discuss personally
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 days/month
Delivery Time :
25days
Packaging Details :
wooden box
Model :
LTRG-60
Tube Material :
Aluminum Tube
Filling Speed :
30-80 pcs/min
Tube Length :
50-240mm (customizable)
Filling Volume :
3-350ml
Production Speed :
70-95 pcs/min
Description

Automatic Cosmetics Product Plastic Tube Inner

Heating Filling Sealing Machine

Introduction and function
This machine applies the transmission principle. It uses the slot wheel dividing system to drive the turntable to do intermittent movement. The machine has 8 sits. Expect manually putting the tubes on the machine, it can automatically fill the material into the tubes, heat both inside and outside of the tubes, seal the tubes, press the codes, and cut the tails and exit the finished tubes. Filling measurement is accurate. Heating time is stable and adjustable. Sealed tail looks pretty and neat and the trimming is very even. This machine has stable performance and work without any noise and pollution.
The part which is contact with the filling material is made of high-quality stainless steels. The parts which need to clean are made of quick-change device that is removable and convenient for washing.
If some materials need heating insulation, the heating thermostat device can be added outside of the feeding barrel.
Main functions:

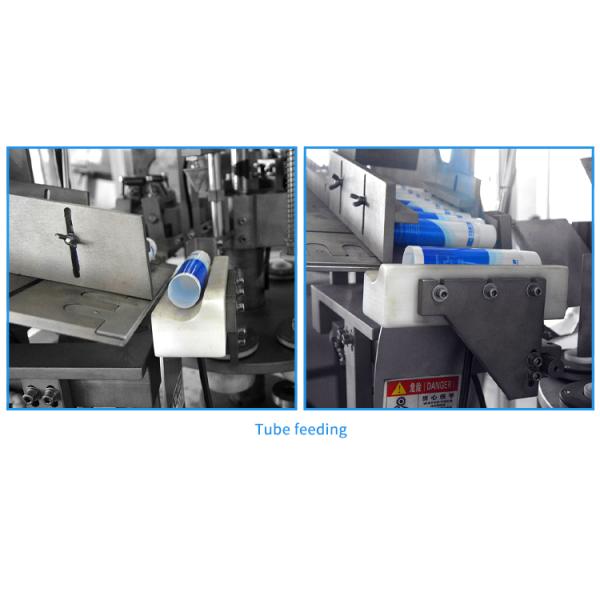

1. automatic tube orientation
2. automatic heating
3. automatic sealing and pressing the batch, dates
4. automatic cutting the tail
5. automatic exiting
Application range:
It can fill and seal the plastic tubes and plastic-aluminum laminated tubes. It is widely used in the cosmetic, medicine, adhesive and shoe polish, food industries.
Main Features

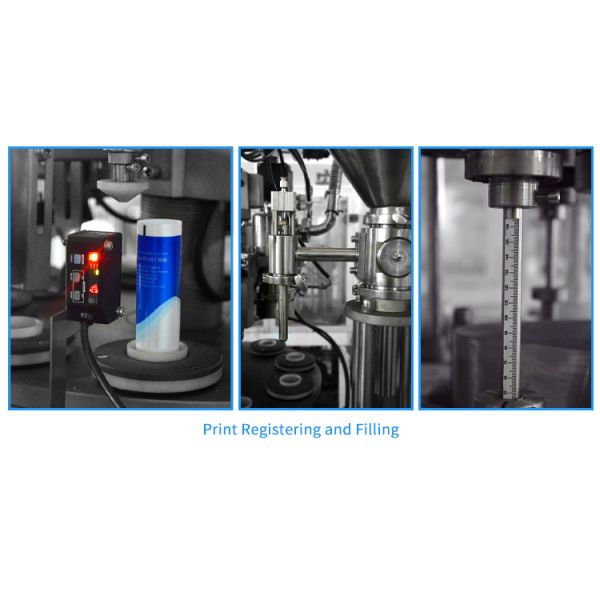

1) Automatic tube loader-Automatic print registration-Tube orientation checking-Fiiling-Inner Heating-Sealing and Dater Printing-Cutting-Discharge
2) Adopting advanced world famous brand Mitshubish, Schneider, Omron, Leister erccomponents in pneumatic parts ,electric parts and operation parts.
3) High Standard quality control and safety protection.
4) Mechanical transmission device provide stable and easy operation.
5) Could match cartoning machine and film packing machine together.

Technical Parameter

Model
LTRG-Series
Filling range
3-300(ml)( can be customized)
Filling speed
40-60(pics/min)
Gas source(Mpa)
0.55-0.65
Filling accuracy
≤±0.05%
Tube diameter(mm)
Φ10- Φ32(can be customized)
Tube Length(mm)
45-250(can be customized)
Supply Power
380v/220v
Head
1
Power
2kw
Net weight
800kg

Cosmetics Inner Heating Plastic Tube Filling And Sealing Machine

Cosmetics Inner Heating Plastic Tube Filling And Sealing Machine
