ZP- 17D Rotary Tablet Press Machine , Rotary Pill Press Equipment Low Noise
ZP- 17D Rotary Tablet Press Machine , Rotary Pill Press Equipment Low Noise
ZP- 17D Rotary Tablet Press Machine , Rotary Pill Press Equipment Low Noise
ZP- 17D Rotary Tablet Press Machine , Rotary Pill Press Equipment Low Noise
ZP- 17D Rotary Tablet Press Machine , Rotary Pill Press Equipment Low Noise
ZP- 17D Rotary Tablet Press Machine , Rotary Pill Press Equipment Low Noise
Specifications
Brand Name :
LEADTOP
Model Number :
ZP-17D
Certification :
CE certification
Place of Origin :
China
MOQ :
1 set
Price :
discuss personally
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 days/month
Delivery Time :
25days
Packaging Details :
wooden box
Model :
ZP-17D
capacity :
40000tablets/hour
Max. Pressure(KN) :
60
Max. Tablet Thickness(mm) :
15
Max. Tablet Diameter(mm) :
20
Application :
Pill Pressing
Description

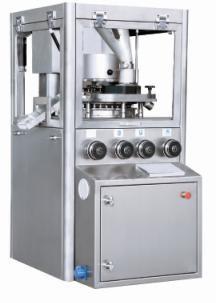

ZP- 17D Automatic Rotary Tablet Press Machine Pill Press Machine

Main application
This machine is a single-press/doule-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.

Feature
The machine is fully-enclosed, made of stainless steel, meet the G.M.P requirement It has transparent windows so that press condition can be observed clearly and the windows can be opened.Cleaning and maintenance is easier. The machine can press not only round tablets but also different geometrical shape tablets, annular tablets, and the tablets may have the impressed letters on both sides. A power suction unit is attached to take the residual powder during operation so that the blockage powder can be collected and be reused. An overload protection unit is included in the system to avoid the damage of the punches and apparatus. The machine’s worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, preventing cross pollution.

Main Technical Data:

Stations (unit) 17 Thickness of the die (mm) 28
Maximum compression (KN) 80 Diameter of the die (mm) 36
Max. Diameter of tablet to be produced (mm) 20 Rotary speed of the turret (rpm) 10-37
Max. Filling depth (mm) 22 Capacity of the tablets 37,700pcs/hour
Max. Thickness of tablet (mm) 6 Area to occupy (mm 2 ) 930x950
Diameter of the upper/lower shank (mm) 27mm Height of the machine (mm) 1750
Length of the upper punch (mm) 115 motor power (kw) 2
Length of the lower punch (mm) 183 Net weight of the machine (kg) 800

ZP- 17D Rotary Tablet Press Machine , Rotary Pill Press Equipment Low Noise

ZP- 17D Rotary Tablet Press Machine , Rotary Pill Press Equipment Low Noise

For more informations, please contact us by mail or telephone. We offer 24hours service, Your free Capsule Production Consultant!

LTPM CHINA, Your Best Pharmaceutical Production Solution!
