Specifications
Brand Name :
LTPM CHINA
Model Number :
NJP-2000
Certification :
CE
Place of Origin :
Wenzhou Zhejiang China
MOQ :
1 Set/Sets
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25Set/Sets per 1month
Delivery Time :
30days
Packaging Details :
Wooden box
Capacity :
12000capsules/hour
No. of segment bores :
18
Capsule Size :
00#-5#
Fining Precision :
higher than 99%
Vacuum Density :
0.02-0.06MPa
Overall Dimension :
1170*1120*2200mm
Description

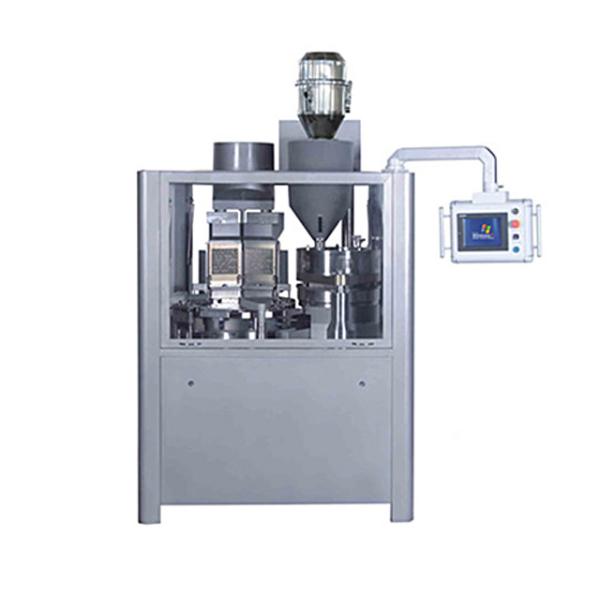

Njp-2000 Fully Auto Capsule Filler With Ce Certification

Product Description
NJP-2000 is our new generation capsule filling machine.It achieves high precision of filling dosage and it easy to clean and maintain.The whole set of the molds and all the parts that need daily cleaning and maintenance are equiped with locating pins,and the connection as well as fasteing among different parts is extremely simple.As the fastening tool is standardized in size,a small spanner can easily dismount all the parts.All the connectorsof the air pipes apply standardized clamps,which are much eaier to dismantle and clean than others.

Applications
NJP-2000 adopt PLC control system, human-machine interface, when running malfunction or lack of stuff, automatic alarm, malfunction display, automatic dismiss alarm. And with functions of password setup, touching screen display, automatic parameter setup, data printing, reset, etc.
The jump-start axed, cam and other main damageable parts all adopt imported materials. And the machine is suitable for Powder, Granular and Pellet filling, one hour for 24,000capsules, special for Capsule size from00# to 5#.

Main Technical Data

Model: NJP-2000C (PLC Control, Touch Screen)
Capacity: 12000capsules/hour
No. of segment bores: 18
Capsule Size: 00#-5#
Fining Precision: higher than 99%
Power Requirement: 380V 50Hz
Power: 3Kw (Include Dust Collector)
Vacuum Density: 0.02-0.06MPa
Dust Suction: 700m3/H 2*105MPa
Overall Dimension: 1170*1120*2200mm
Weight: 2200Kg
All contract parts are made from 316 grades S.S Machine main body is made from S.S 304
Electric motor: Sew-Germany or Siemens Electric wire of the Siemens-Germany
Vacuum pump of Sew-Germany or Siemens All the documents are in English version.
