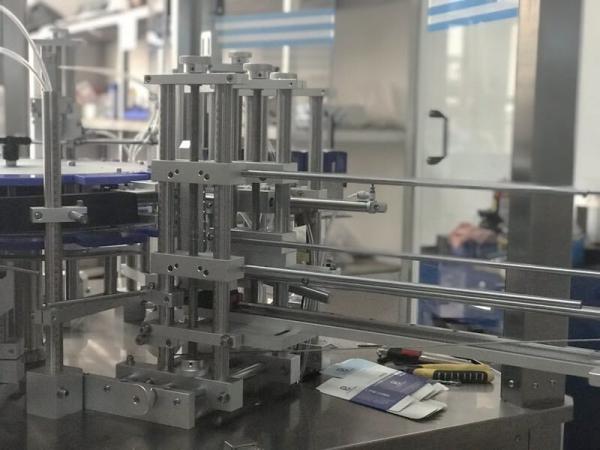

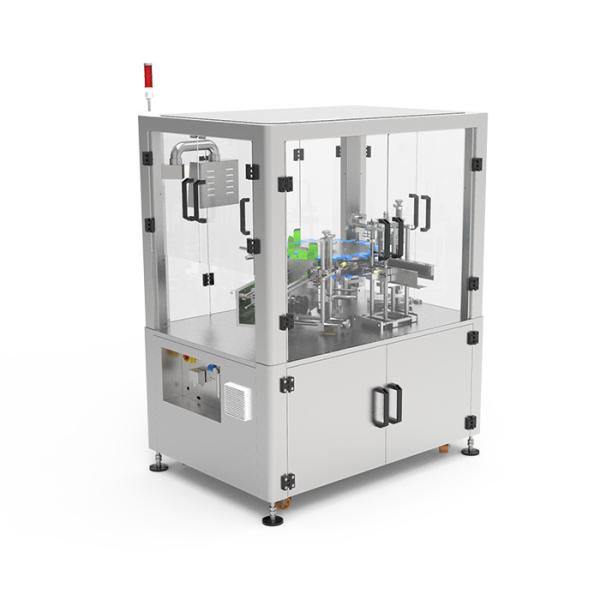

Semi Linear Automatic Stick Cartonator Packing Machine High Efficiency Stainless Steel
Semi Linear Automatic Stick Cartonator Packing Machine High Efficiency Stainless Steel
Semi Linear Automatic Stick Cartonator Packing Machine High Efficiency Stainless Steel
Semi Linear Automatic Stick Cartonator Packing Machine High Efficiency Stainless Steel
Semi Linear Automatic Stick Cartonator Packing Machine High Efficiency Stainless Steel
Semi Linear Automatic Stick Cartonator Packing Machine High Efficiency Stainless Steel
Semi Linear Automatic Stick Cartonator Packing Machine High Efficiency Stainless Steel
Semi Linear Automatic Stick Cartonator Packing Machine High Efficiency Stainless Steel
Specifications
Brand Name :
LEADTOP
Model Number :
ZH-50
Certification :
CE certification
Place of Origin :
China
MOQ :
1 set
Price :
discuss personally
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 days/month
Delivery Time :
25days
Packaging Details :
wooden box
Model :
ZH-50
Machine noise :
≤80dB
Capacity :
20-50cartons/min
Power :
1.5Kw
Carton gram requirements :
250-350g/m3
Air pressure :
0.5-0.8Mpa
Description

High-Efficiency Stainless Steel Semi Linear Automatic Stick Packing Cartoning Machine

APPLICATION :
Round bottled medicine, food-stuff, cosmetic, etc. packing into square box.


OPTION :
Leaflet Inserting , Hot Glue, Hot Ribbon Date Code , Embossed date Code


FEATURES:
1. It is specially design to pack small quantities multi size box.
2. With low cost and only require small area. It is suitable for various sizes of box. The machine is a vertical type with multiple
function and require a short time to change mould.
3. 304 stainless steel case
4. Advanced PLC Control System Combined with 5.7” Colorful Touch Screen Control Panel ,can easily set and change the packing


Packing Process:
1. Push box into star wheel.
2. Fold box lower small flap.
3. Press both lower big flaps.
4. Flatten both big flaps.
5. Product fall into box.
6. Fold box upper small flap.
7. Press both upper big flaps.
8. Flatten both big flaps.
9. Product push out.

Product Parameters:

Model No. ZH-50
Packing speed: 20-50box per min
Paper box's largest size 200*80*80mm
Paper box's smallest size 60*20*20 mm
Paper quality of carton 250-350g/m3
Motor horsepower 1/4HP 15:1
Power supply 220V 50/60HZ single phase
Machine noise ≤80dB
Gas source 0.5-0.8 Mpa
Compress air consumption 150L/min
Machine measurement: 1100*1500*1900 mm
Machine weight 250Kg

Semi Linear Automatic Stick Cartonator Packing Machine High Efficiency Stainless Steel
