Description

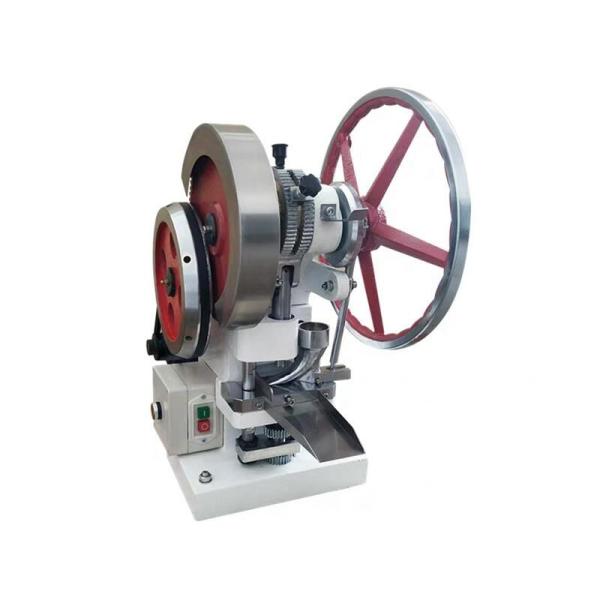

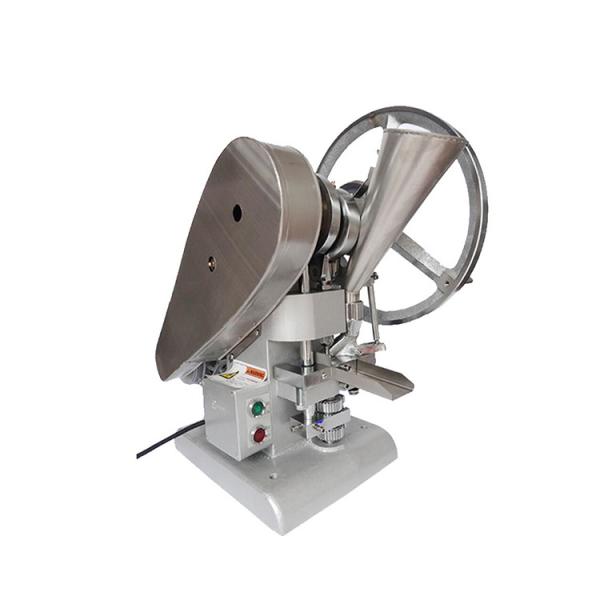

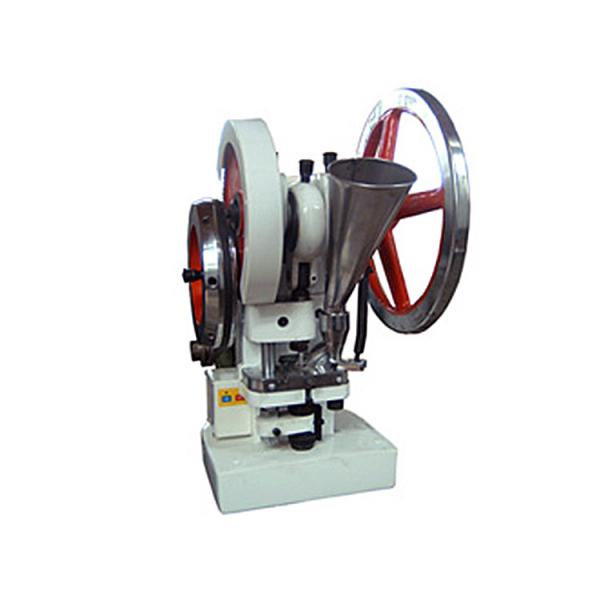

TDP series are single punch machine which is designed to table-top or portable version. Very small material quantities to be utilized and characterized quickly with a minimum of set-up, the tablet weight, thickness and hardness can be adjustable.

Main Feature
1. Adjustable thickness:There is only one set of die in this machine, the filling depth and pressing thickness of the material can be adjusted, that means, the weight, thickness and hardness of the finished product can be adjusted, and different finished products can be pressed only by replacing different molds.
2. With outlet:The outlet is made of stainless steel and smoothed. It can effectively reduce the problems of missing edges, cracks and deformation caused by discharging
3. Charging hopper:Made of stainless steel, it can meet the requirements of the industry and will be more convenient for charging
4. Lifting cam:The lifting cam and the eccentric wheel operate with the rotating shaft. The machine will be more powerful and faster to make sugar tablet.
5. Thickness adjustment gear:Loosen the fixed bolts and loosen the adjustable wheel-pressure plate. Rotate the lower adjustable wheel to the right, can make the thicker sugar tablet; to the left, can make the thinner sugar tablet. After adjustment, install the pressure plate and fix bolts.
6. Hand shake:This machine is a hand-operated single punching machine. It requires no power supply, and the direct hand pressing method is quick and clear.
7. Larger feeder:The feeder is upgraded and improved, and the inner measuring outlet is wider and will be smoother when charging
8. Hopper hook:Can keep the hopper balanced

Object-oriented:

mass production and processing of clinics, schools, laboratories, hospitals, chemical plants, pharmaceutical factories, scientific research units, etc.
