FL Model Instant Granule Fluid Bed Granulator , Vacuum Freeze Drying Machine
FL Model Instant Granule Fluid Bed Granulator , Vacuum Freeze Drying Machine
FL Model Instant Granule Fluid Bed Granulator , Vacuum Freeze Drying Machine
FL Model Instant Granule Fluid Bed Granulator , Vacuum Freeze Drying Machine
Specifications
Brand Name :
LEADTOP
Model Number :
FL-120
Certification :
CE certification
Place of Origin :
China
MOQ :
1 sets
Price :
USD 15000/SET
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
25 sets per month
Delivery Time :
35days
Packaging Details :
Wooden box
Model :
FL-120
Weight :
1100KGS
Power of fan (kw) :
18.5
compressured air consupmtion :
1.0m3/min
steam pressure :
0.3~0.6Mpa
Receiving rate :
≥99%
noize :
fan and main frame installed separately, noise≤75dB(A)
Description

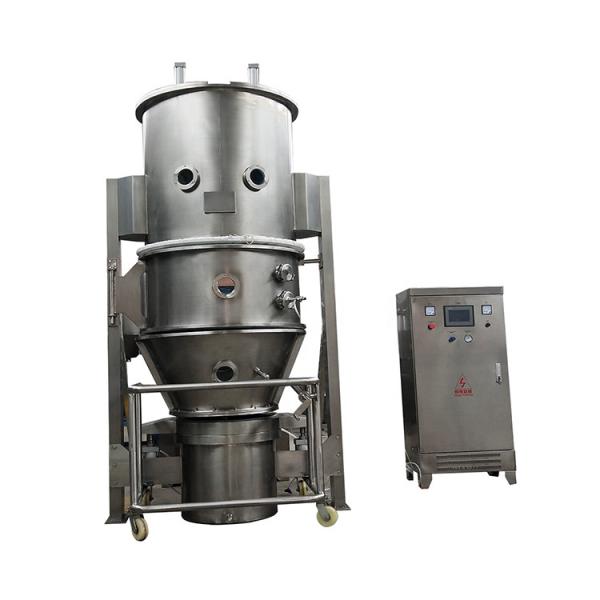

Vacuum Freeze Dryer FL Model Instant Granule Fluid Bed Granulator

What is Instant Granule

Instant coffee, also called soluble coffee, coffee crystals and coffee powder, is a beverage derived from brewed coffee beans. Instant coffee is commercially prepared by either freeze-drying or spray drying, after which it can be rehydrated. Instant coffee in a concentrated liquid form is also manufactured.

FL Instant granule Fluid Bed Granulator Application

FL Model Instant granule fluid bed granulator is mainly used for the operations of mixing, granulating, drying and coating of granule "Top Spraying", etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment.
The machine is manufactured in accordance with JB20014-2004 Fluid-bed Granulator In Medicine

Main Technical Data:

Model 120
Volume (L) 420
Amount to be treated (kg/per time) 80/160
Power of fan (kw) 18.5
Consume of steam 0.4MPa(kg/h) 211
Consume of compressed air (m3/min) 1.0
Noise,dB (A) (fan is installed separately) ≤75
Main machine height (m) 2.2×1.65×3.3

Features of FL Instant Granule Fluid Bed Granulator

1. Mixing-granulating-drying in one-step.
2. Adopting double chamber filtering bags system, remove dust completely.
3. Adopting multi-fluid nozzle, it guarantees that the formed granule is uniform and the content of powder is very low.
4. Can choose 2 bar explosive-proof design
5. Designed, manufactured and laid out by GMP

Working Principle of FL Fluidized Bed Granulator

The Powder granule the container (fluidized bed)appear the state of fluidization. It is preheated and mixed with clean and heated air. At the same the solution of adhesive solvent is fogged and sprayed into the container. It makes the Same particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

FL Model Instant Granule Fluid Bed Granulator , Vacuum Freeze Drying Machine
