Baking Steel 100K Modular Pharmaceutical Clean Room
Baking Steel 100K Modular Pharmaceutical Clean Room
Baking Steel 100K Modular Pharmaceutical Clean Room
Baking Steel 100K Modular Pharmaceutical Clean Room
Baking Steel 100K Modular Pharmaceutical Clean Room
Baking Steel 100K Modular Pharmaceutical Clean Room
Baking Steel 100K Modular Pharmaceutical Clean Room
Baking Steel 100K Modular Pharmaceutical Clean Room
Specifications
Brand Name :
LEADTOP
Model Number :
LTPM China
Certification :
CE certification
Place of Origin :
China
MOQ :
1 set
Price :
discuss personally
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 days/month
Delivery Time :
25days
Packaging Details :
wooden box
Model :
LTPM China
Structure :
wall panel, ceiling panel, window, profile, floor, etc.
Wind resistance :
Grade 11
Color :
Blue or customized
Driven Type :
Electric
Description

2021 Hot Sale Portable GMP Clean Room/Pharmaceutical Clean Room

Cleanrooms are designed to maintain extremely low levels of particulates, such as dust, airborne organisms, or vaporized
particles. Cleanrooms typically have a cleanliness level quantified by the number of particles per cubic meter at a predetermined molecule measure. The ambient outdoor air in a typical urban area contains 35,000,000 particles for each cubic meter in the size range 0.5 μm and bigger in measurement, equivalent to an ISO 9 cleanroom, while by comparison an ISO 1 cleanroom permits no particles in that size range and just 12 particles for each cubic meter of 0.3 μm and smaller.

Application: A cleanroom or clean room is a facility ordinarily utilized as a part of specialized industrial production or
scientific research, including the manufacture of pharmaceutical items, integrated circuits, semiconductor manufacturing, solar panel, rechargeable battery, CRT, LCD, OLED and micro LED displays. There are also modular cleanrooms.

Baking Steel 100K Modular Pharmaceutical Clean Room

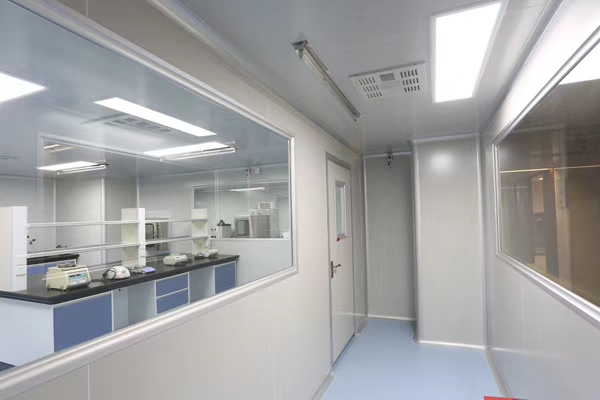

Pharmaceutical Lab

Baking Steel 100K Modular Pharmaceutical Clean Room

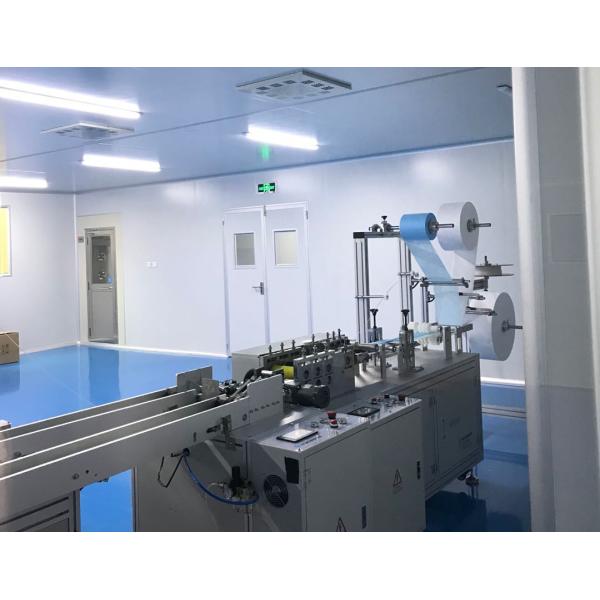

Mask Workshop

Modular Cleanroom is a kind of clean room, it can quickly improve the cleanliness of the equipment. Because of its low cost, convenient and flexible asembly, it is widely used in optical, electronic assembly line work, laboratories, assembly area local area purify occasions. The clean booth adopt to FFU generating winds, with industrialize aluminum(stainless steel or painting steel) as it's frame and static-free sticker(or carbon glass), it can make the clean room's cleanliness attain 10-100K.

Specification Table
Area
15㎡
30㎡
50㎡
100㎡
Material
Aluminum frame/Baking steel
plaxe/lnsulaxing glass window
Aluminum frame/Baking sieel
plate/lnsulating glass window
FFU class 1-100
12pcs
24pcs
48pcs
96pcs
FFU class-1K
3pcs
6pcs
9pcs
18pcs
FFU class-10K
2pcs
4pcs
6pcs
12pcs
Speed (m/s)
0.45m/s ±20%
0.45m/s ±20%
Temperature(optional)
18-28°C
Humidity(opiional)
50-70%
50-70%
Illumination
400-800LUX
Power
2.4-7kw
4.8-10kw
9.6-19kw
19.2-30kw

If there are other size requirements, it can be customized

Feature
1) Assembly structure customized design, easy installation and easily moved;
(2) Directional wheels can be installed, suitable for small building and high cleanliness area;
(3) Modular design: clean booth can be as small as several square meters and can be as large as hundreds of square meters;
(4) It has large useful and effective area,while compared with traditional clean room, it has such features like low investment, high return and stab. Our products are involved in electronics, electrical appliances, food, chemical, clothing, footwear, automobile manufacturing and other industries, products covered by the automatic assembly line, drying line, roller conveyor belt, metal mesh belt conveyor, chain conveyor, chain suspension conveyor and plug-in line, speed chain conveyor line, station operation equipment, we are professional production line manufacturer.

Baking Steel 100K Modular Pharmaceutical Clean Room

Baking Steel 100K Modular Pharmaceutical Clean Room

Baking Steel 100K Modular Pharmaceutical Clean Room

The selection of material for the construction of the cleanroom should not generate any particle hence monolithic epoxy or polyurethane floor coating is preferred. Buffed stainless steel or powder-coated mild steel sandwich partition panels & ceiling panel are used. Corners like the wall to wall, wall to floor, wall to ceiling are avoided by providing coved surface and all joints need to be sealed with epoxy sealant to avoid any deposition or generation of particles at the joints.


Quality Control
Checking raw material before producing.
2. Checking one by one before the assebling
3. Checking one by one during the production
4. Have the random inspection before the delivery.
