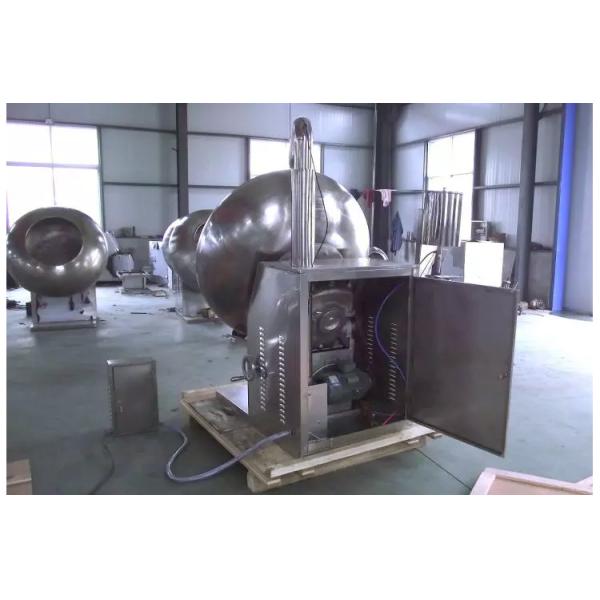

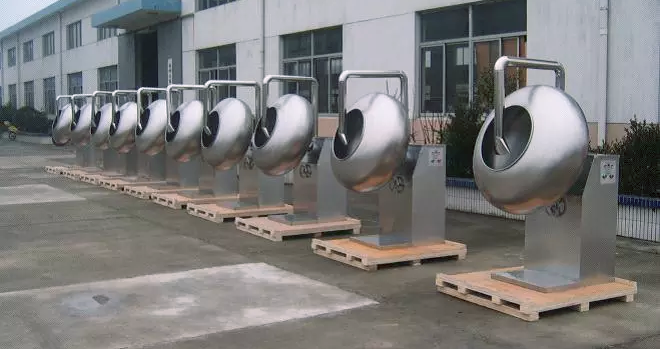

70Kg/Time 1.5kw Pharmaceutical Tablet Coating Machine
70Kg/Time 1.5kw Pharmaceutical Tablet Coating Machine
70Kg/Time 1.5kw Pharmaceutical Tablet Coating Machine
70Kg/Time 1.5kw Pharmaceutical Tablet Coating Machine
70Kg/Time 1.5kw Pharmaceutical Tablet Coating Machine
70Kg/Time 1.5kw Pharmaceutical Tablet Coating Machine
70Kg/Time 1.5kw Pharmaceutical Tablet Coating Machine
70Kg/Time 1.5kw Pharmaceutical Tablet Coating Machine
Specifications
Brand Name :
LEADTOP
Model Number :
SHL-1000
Certification :
CE certification
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 sets /month
Delivery Time :
20days
Packaging Details :
wooden box
Model :
SHL-Series
Boiler diameter mm :
1000
Production capacity (Kg/time) :
50~70
Clockwise angle α (adjustable) :
15˚~45˚
Boiler rotating speed :
32
Main motor :
1.5kw
Description
Tablet Coating Machine Film Coating Pharmaceutical Tablet Coating Machines
Working Principle:
Rotate cauldron clockwise,and spray syrup and mixed additives in turn onto the raw tablets inner cauldron,so as to let the syrup mixture coating on tablets evenly,and let also the coated tablets rolling in the cauldron for drying off moisture inner coating by the inlet thermal air flow, which is adjustable,to yield out qualified icing tablets.
This machine offers best material flow curve inner cauldron via reasonable shape and stable linear speed,so as to meet technical requirements for icing coating.
These machines sugarcoat the tablets and pills for pharmaceutical and food industries. It is also used for rolling and heating beans and edible nuts or seeds. As its feature, the sugarcoating round pot is elevated with a elevation 30° to the horizontal, the heater such as gas or electrical heater can placed directly under the pot. A separated blower with electric heater is provided with the machine. The pipe of the blower stretches into the pot for heating or cooling purpose. The thermal capacity can be selected in two levels.
70Kg/Time 1.5kw Pharmaceutical Tablet Coating Machine
Characteristics:
1. Able to be matched with frequency controller.
2. Able to be matched with dust-removal system.
3. It can be made to totally-enclosed type, saved with airbrush system, and meets the requirements of GMP.
70Kg/Time 1.5kw Pharmaceutical Tablet Coating Machine
Technical Parameter
Model
SHL-Series
Dia. of Pan ( mm)
300
Rotary Speed of Pan (r/min)
46
Power of Fan( kw)
0.075
Power of Heat kw
0.75
Production Capacity( kg/time)
2
Motor( kw)
0.37
Overall Size ( mm)
520*360*700
Net Weight( kg)
46

Application:
Mini and Small Sugar Coating Machine for nuts & almond & peanut
It is used to coat tablets and pills with sugar in pharmaceutical and food
Industry such as candy,chewing gum,chocolate and etc.

70Kg/Time 1.5kw Pharmaceutical Tablet Coating Machine
