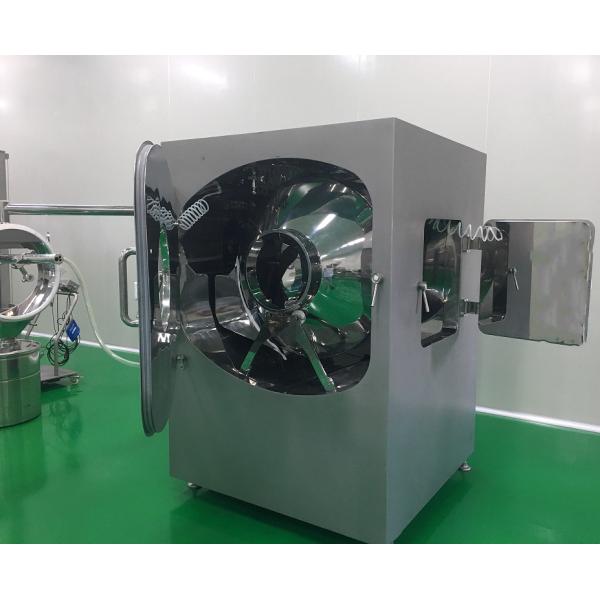

Hot selling new type tablet pills sugar coating machine or tablet film coating machine

Work principle
Under the rotation action of the coating roller, the tablets or pills to be coated make continuous movement in the roller. The peristaltic pump conveys the coating media to the spray gun for spraying them on the surfaces of the tablets or pills to be coated. Under negative pressure, the inlet air handling unit supplies clean hot air to the tablet bed according to the set procedures and process parameters to dry the tablets or pills. The hot air is discharged from the outlet air handing unit at the bottom of the layer of tablets or pills, so that the coating media sprayed on the tablets or pills rapidly form solid, dense, flat and smooth film to complete the coating operation.

Features
1. Use automatic execution software, and the temperature, wind speed, coating solution can be controlled by on-line program.

2. The same model can use more than two diferent pans, which can be customized according to requirements and are highly adaptable to varous production process.

3. Meet different capacity requirement from 20% to 105%, promote 20% to 60% on coating efficiency.

Application
The new type auto coating machine is designed for coating process solutions for all kinds of tablets, pills, granules, which can promote the coating production efficency and guarantee material stability. Reliable process, interchangeable pans design, CIP design and good appearance conforms to the requirements of GMP. Varieties of functions combination make the batch production time shorten, satisfying different process requirements. It is the best choice for film coating, sugar coating, chocolate coating, candy coating, seed coating, etc.
