Specifications
Brand Name :
LTPM CHINA
Model Number :
LTN Series
Certification :
CE
Place of Origin :
China (Mainland)
MOQ :
1Set/Sets
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20set/sets per a month
Delivery Time :
a month
Packaging Details :
Wooden packing
Power of Vacuum Pump :
12kw
Concentrate density (%) :
1.2-1.35
The volume of extracting :
6
Raw Material Input Capacity (kg) :
600-800
Capacity of Concentrating Evaporator :
1500kg/hour
The time of extraction (h) :
8
Description
High Efficiency Herbal Oil Extraction Machine

Product Application
Composed by: extractor, filter, pump, heater, evaporator, condenser, cooler, oil separator and project control computer.
After dipping and heating, the liquid of traditional Chinese medicine will be pumped into the external heater for heating from the bottom of extracting tank.
The extra pump liquid will enter into heater for heating from the bottom of the extracting tank to reflow and play its partial mixing effect. After the extracting liquid is heated by the heater, it will be evaporated instantly and separated by the separation concentrator.
The twice steam will enter into the extracting tank, transmitting the heat to the solvent in the extracting tank, and also playing mixing effect.
The residual air will enter into the condenser and become solvent, and after reflux it will enter into the extracting tank. It will enter into the heater for condensed liquid to carry out heat exchange and make the temperature of condensed liquid approximate to the boiling point of solution in the extracting tank.
Then the residual air will enter into condenser. As the solvent has large reflux quantity, the density of solute will be rapidly dissolved The extraction and concentration are synchronous with continuous discharge of concentrated liquid, thus, the process is greatly reduced and only requires 4~6 hours.

High Efficient Vacuum Multi Functional Extraction Tank Energy - Saving

Advantages
This unit has many advantages such as high efficiency, energy saving, multifunction.
As to the comprehensive performance, it is at the leading position in domestic. It is modernized technology equipment keeping pace with international natural plant medicine. Our company can also produce ordinary control unit or semi-automatic control unit to satisfy different requirements of customers.

Application

This unit not only has good function for extraction and concentration of traditional Chinese medicine and Chinese herbal medicine (dry product), but also has powerful functions for extraction and concentration of fresh plant products at low temperature with fresh flavor preserved, such as the extraction and concentration of flower and asparagus. It has applied in traditional Chinese medicine factories and health product factories, which shows its powerful function advantages.
The equipment is also applicable to the extraction and condensation of natural condiments and food additives concerning animals and halobios.

Technical Data

No. Item Model Material No. Item Model Material
1 Extracting Tank TQ.Z—3M3 SUS304 11 Heater SUS304
2 Warming Jacket SUS304 12 Warming Jacket SUS304
3 Polyaminocarboxylic Foam Material SUS304 13 Evaporator SUS304
4 Oil and water separator SUS304 14 Controlling Cabinet Vertical PLC and touch screen
5 De-bubble Device SUS304 15 Valves and viewing glass DN40~DN25 SUS304
6 Condenser SUS304 16 Connection Pipes DN40~DN25 SUS304
7 Medium Tank SUS304 17 Vacuum Pump 2BV5110 SUS304
8 Vacuum Transformer SUS304 18 Vacuum Buff Tank SUS304
9 Vacuum Transition Tank SUS304 19 Air Compressor 0.17M3/0.7Mpa

SUS304

Hempseed oil

The appearance and characteristics are very close to the low iodine value of linseed oil, but slightly greenish.

The approximate fatty acid composition is: 10.1% saturated acid, 16% oleic acid, 46% linoleic acid, and 28% linolenic acid.

The acid value is 3 mg KOH/g, the iodine value is 149-167, and the relative density is 0.925-0.933 (15/15 ° C). The freezing point is about 16 °C.

The main ingredients are glycerides of linoleic acid, linolenic acid and oleic acid.

Used in industries such as paints and soaps.

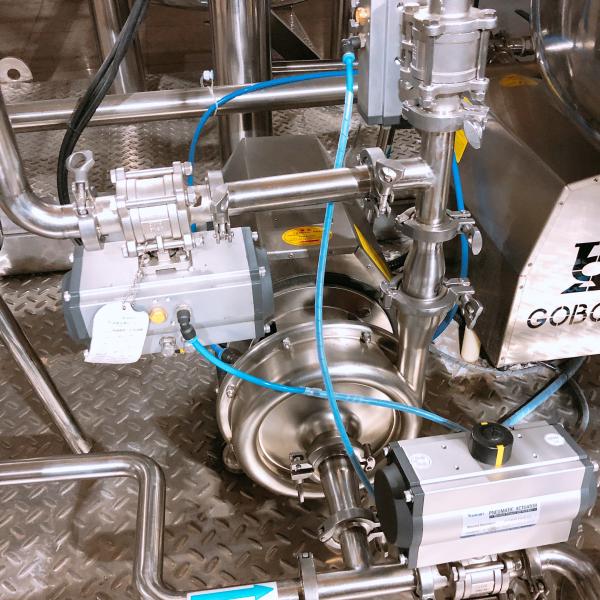

Mechanical Detail

High Efficient Vacuum Multi Functional Extraction Tank Energy - Saving

High Efficient Vacuum Multi Functional Extraction Tank Energy - Saving
