Fast Speed Candy Automatic Rotary Tablet Machine For Pill Pressing , Longlife
Fast Speed Candy Automatic Rotary Tablet Machine For Pill Pressing , Longlife
Fast Speed Candy Automatic Rotary Tablet Machine For Pill Pressing , Longlife
Fast Speed Candy Automatic Rotary Tablet Machine For Pill Pressing , Longlife
Fast Speed Candy Automatic Rotary Tablet Machine For Pill Pressing , Longlife
Fast Speed Candy Automatic Rotary Tablet Machine For Pill Pressing , Longlife
Specifications
Brand Name :
LEADTOP
Model Number :
GZP-57
Certification :
CE certification
Place of Origin :
China
MOQ :
1 set
Price :
discuss personally
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 days/month
Delivery Time :
25days
Packaging Details :
wooden box
Model :
GZP-57
capacity :
40000tablets/hour
Max. Pressure(KN) :
60
Max. Tablet Thickness(mm) :
15
Max. Tablet Diameter(mm) :
20
Application :
Pill Pressing
Description

High Speed Rotary Pill Making Machine Automatic Tablet Press Machine

Applications:

The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece ,be carved characters ,special shapes and double color piece prescription .It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry ,foods, electronics .(Note: when manufacturing double color piece ,it only need replacing components and adding powder absorbing apparatus which greatly lowers the cost and raises profit .).

Fast Speed Candy Automatic Rotary Tablet Machine For Pill Pressing , Longlife

Features.

1.The cover is made of stainless steel with close type . The inner tablet surface is also applied with stainless steel materials which could keep surface luster and prevent from being polluted crossly, comply with GMP requirement.
2. Equipped with plexiglass perspective window which could help to observe the status of pressing piece. Side blank could be fully opened, easy to clean and maintain.
3. All monitors and operating components are in good order.
4. Applying with frequency changing, speed regulating apparatus to do electricity regulation. The convenient operation and smooth revolving are safe and correct.
5. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
6. Combining machine with electricity, equipped with touching key and screen.
7. The first of its kind to use semi-automatically lubricating equipment and plexiglass anti-dust cover on the upper of revolving table.
8. Ransmitting system is sealed in the oil box under the main machine which is a separate component .No pollution and easy to send out heat and resist grinding.
9. Powder-absorbing apparatus could absorb the powder in the piece-pressing room.

Main Technical Data:

Stations (unit) 17 Thickness of the die (mm) 28
Maximum compression (KN) 80 Diameter of the die (mm) 36
Max. Diameter of tablet to be produced (mm) 20 Rotary speed of the turret (rpm) 10-37
Max. Filling depth (mm) 22 Capacity of the tablets 37,700pcs/hour
Max. Thickness of tablet (mm) 6 Area to occupy (mm 2 ) 930x950
Diameter of the upper/lower shank (mm) 27mm Height of the machine (mm) 1750
Length of the upper punch (mm) 115 motor power (kw) 2
Length of the lower punch (mm) 183 Net weight of the machine (kg) 800

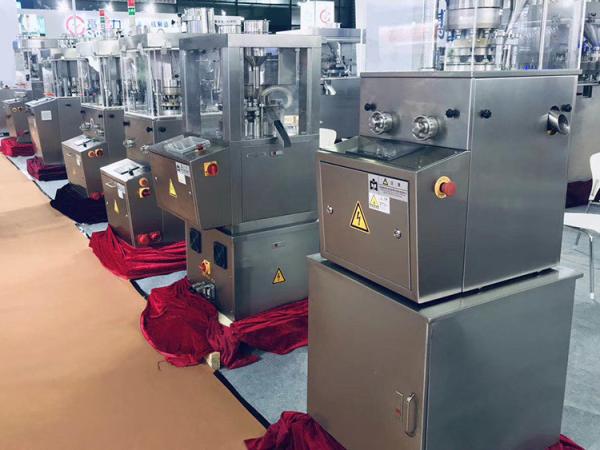

Sample Photo

We can provide a whole line of products for pharmaceutical machinery.
