LTDG - Series Vacuum Freeze Dryer Controlled By Hand , Automatic Program Or Computer
LTDG - Series Vacuum Freeze Dryer Controlled By Hand , Automatic Program Or Computer
LTDG - Series Vacuum Freeze Dryer Controlled By Hand , Automatic Program Or Computer
LTDG - Series Vacuum Freeze Dryer Controlled By Hand , Automatic Program Or Computer
LTDG - Series Vacuum Freeze Dryer Controlled By Hand , Automatic Program Or Computer
LTDG - Series Vacuum Freeze Dryer Controlled By Hand , Automatic Program Or Computer
Specifications
Brand Name :
LEADTOP
Model Number :
LTDG-100Y
Certification :
CE certification
Place of Origin :
China
MOQ :
1 set
Price :
discuss personally
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 days/month
Delivery Time :
25days
Packaging Details :
wooden box
Model :
LTDG-100Y
Heating function :
81kw
Structure :
Integral (Horizontal drum-type)
Design pressure of chamber :
-0.1Mpa
Design temperature of chamber :
120℃
Total usable area of shelves :
110.16M2
Description

LTDG-Series CE Certified High Quality Vacuum Freeze Dryer

Product Description
The vacuum freeze drying machine is an advanced method for the material for the material de-watering. ATLAS technology from THE DENMARK. It has been very famous for its good results and special capturing water alternatively(as above photo on the left ). It freezes the moisture material in the low temperature and makes the water inside sublimate directly in the vacuum condition. Then it collects the sublimated vapor by means of the condensing way so as to dewater and dry the material.

Being processed by the vacuum freeze drying, the physical, chemical and biological states of the material are basically unchanged. The volatile and nutritious contents in the material, which are easy to be denatured in a warm condition, will be lost a little. When the material is freezing dried, it will be formed into a porous one and its volume be basically the same to that before drying. Therefore, the processed material can be recovered quickly if being watered again, because of its large contacting area and it can be stored for a long period in a sealed vessel.


Technical Data

Freeze Drying machine Unit Production for Batch
LTDG-1 LTDG-50 LTDG-75 LTDG-100
Nominal Area m2 1 50 75 100
Capacity Area of the heat shelf m2 1.08 59.9 89.9 110.1
Tray Area 1.02 50.2 75.8 101
Tray Size mm 780*510*37
Total Volume Dehydration (Max Kg/batch 15 1000 1500 2000

Main Features:
Our LTDG Vacuum Freeze Dryer Designed and manufactured based on GMP requirement, ATLAS technology&structure, adopts a solid construction with a small occupied area and convenient installation and transportation.
Its operation can be controlled by hand, automatic program or computer. It will be more reliable if being equipped with the unit.

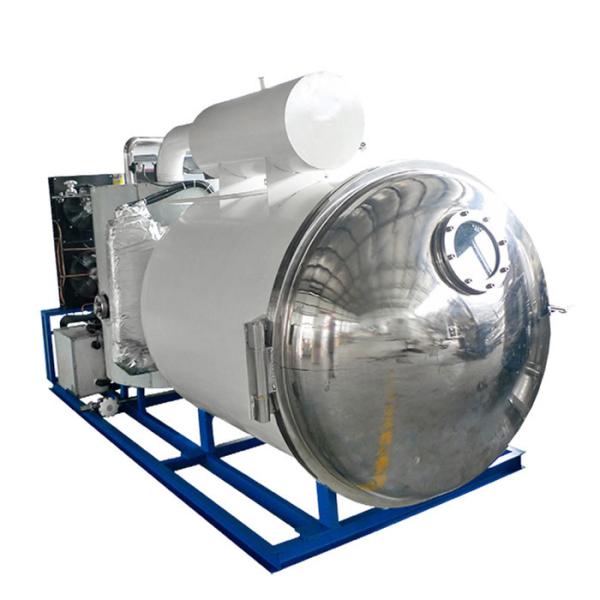

Machine Pcitrue
LTDG - Series Vacuum Freeze Dryer Controlled By Hand , Automatic Program Or Computer
