Milk Juice Powder Granules FBD Pharma Machine High Working Efficiency
Milk Juice Powder Granules FBD Pharma Machine High Working Efficiency
Milk Juice Powder Granules FBD Pharma Machine High Working Efficiency
Milk Juice Powder Granules FBD Pharma Machine High Working Efficiency
Specifications
Brand Name :
LEADTOP
Model Number :
FL-120
Certification :
CE certification
Place of Origin :
China
MOQ :
1 sets
Price :
USD 15000/SET
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
25 sets per month
Delivery Time :
35days
Packaging Details :
Wooden box
Model :
FL-120
Weight :
1100KGS
Power of fan (kw) :
18.5
compressured air consupmtion :
1.0m3/min
steam pressure :
0.3~0.6Mpa
Receiving rate :
≥99%
noize :
fan and main frame installed separately, noise≤75dB(A)
Description

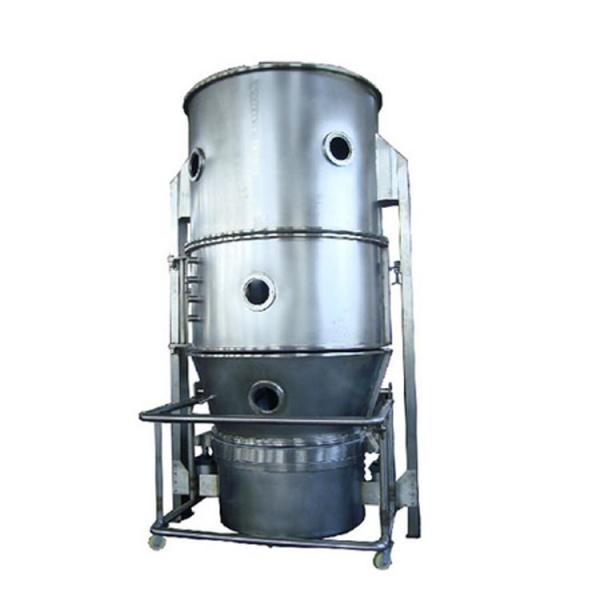

FL-200 High Efficiency Vertical Fluid Drying Machine For Milk Juice Powder Granules Pharmacy

Product Description:
Fluid Bed Dryer Granulation is used to mix powder,dry and granulate it and coat in the industry of pharmaceutical,foodstuff and chemical.

Working Principle
High Efficiency boiling drying machine is used for particle size of 0.1-6 mm particle material boil dry, suitable for pharmaceutical, foodstuff, light industry, chemical industry, the working principle of the finished products, intermediates.
The air is heated and purified. The fan is introduced from the lower part and passes through the mesh plate of the hopper. In the workplace, Fluidization is formed by stirring and negative pressure. After the rapid evaporation of water with the exhaust away, the material quickly dry.

Characteristics
The fluidized bed is round structure to avoid dead Angle.
The hopper is set with stirring to avoid the agglomeration of wet materials and the formation of furrow flow when drying.
It is convenient, quick and complete to use tipping, and can also design automatic feeding and discharging system as required.Close negative pressure operation, airflow through filtration.Easy to operate, easy to clean, is in line with the 'GMP' requirements of the ideal equipment.
The drying speed is fast and the temperature is even. The drying time of each batch is generally 20-60 minutes.

Main Technical Data:

Model 120
Volume (L) 420
Amount to be treated (kg/per time) 80/160
Power of fan (kw) 18.5
Consume of steam 0.4MPa(kg/h) 211
Consume of compressed air (m3/min) 1.0
Noise,dB (A) (fan is installed separately) ≤75
Main machine height (m) 2.2×1.65×3.3

FLOWCHART

Milk Juice Powder Granules FBD Pharma Machine High Working Efficiency
