Ganoderma Grape Seed Ginkgo Ginger Extractor Machine LTN - Series High Efficiency
Ganoderma Grape Seed Ginkgo Ginger Extractor Machine LTN - Series High Efficiency
Ganoderma Grape Seed Ginkgo Ginger Extractor Machine LTN - Series High Efficiency
Ganoderma Grape Seed Ginkgo Ginger Extractor Machine LTN - Series High Efficiency
Ganoderma Grape Seed Ginkgo Ginger Extractor Machine LTN - Series High Efficiency
Ganoderma Grape Seed Ginkgo Ginger Extractor Machine LTN - Series High Efficiency
Specifications
Brand Name :
LTPM CHINA
Model Number :
ZJR-5
Certification :
CE
Place of Origin :
China (Mainland)
MOQ :
1Set/Sets
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20set/sets per a month
Delivery Time :
a month
Packaging Details :
Wooden packing
Design Volume :
6L
Working Capacity :
5L
Contact Part Material :
SUS316
Dimension :
1400mm*600mm*1900~2400 mm
Warranty Year :
1 Year
Using life :
More than 15 years
Description
LTN-Series High Efficiency Ganoderma Grape Seed Ginkgo Ginger Extraction Machine

Product Description:

This equipment can be used for herbal. Plant, food's decoction, warm soaking, heat reflux, forced circulation, permeability percolation, aromatic oil extraction and organic solvent recovery process under atmospheric pressure or pressure. It has advantage of high efficiency and easy operation. Therefore,it is widely used in pharmaceutical,food, chemical and other industries. This equipment's extraction technique can choose straight cylinder, cone, oblique cone, mushrooms and other forms.

Feature:

1. This equipment has excellent performance with perfect manufacture, complete collocation, and simple operation. It is specially suitable for the small batch multi-variety production.
2. Consist: Vacuum pump, liquor, filter, fluid bath, control box and other necessary accessory. The equipment divides into steam heating and electric heating. The equipment can be used once connect with water, electricity or the steam.
3. It is suitable for water-extraction and alcohol-extraction. It can extract under normal pressure and negative pressure and recycle volatile oil. It equips with vacuum switch and control box, easy for operation. It can realize the normal temperature extraction and low temperature concentration.
4. Electric heating structure is with advanced design, high efficiency safety, homogeneous heating. On the pot has the security decompress to ensure the use security.
5.Realize circumfluence extraction, reduce extraction&concentration time, save solvent.
6. Oil-water separator is with unique design. The material is glass, it is easy for observation.

Main Technical Data:

Manufacturer China LTPM Group Co., LTD
PN 5L vacuum emulsifying mixer
Capacity Design volume: 6L, working capacity:5 L
Kettle Cover Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp

Mixing pot

Material

 Inner layer: SUS316L thickness: 3mm
Middle layer: SUS304 thickness: 2mm
Outside layer: SUS304 thickness:2mm

configuration

 Bottom material exhaust, size: 1.5”
Temp. sensor (0-199℃)
Electrical heating: 2kw, cooling water inlet

Stirring system

Homogenizer

1.Material: SUS316L; standard homogenizer

2. Power: 1.1 kw/380/50Hz; RPM: 0--2800R/Min
Stirring scrap and middle stirring Material: SUS316L,Scrap material: PTFE

1. Stirring scrap and middle stirring use the same motor

2,Power:0.75 kw/380V/50Hz;RPM:0~86r/min(Frequency control)

3. Stirring scrap and middle stirring rotating the opposite direction

Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.
Vacuum system

1. Vacuum pump: water recycle, power 0.37kw/380V/50Hz

2. With pressure sensor (during vacuum condition, hydraulic can not open)
Heating method Jacket electrical heating
Exhaust method Electric doom and bottom discharge or positive pressure discharge material
Pressure Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa
Control box SUS304 , 1.2mm thickness
Dimension 1400mm×600mm×1900~2400 mm
Shelf is SS, platform with raised platform and SS guardrail
Spare parts One year spare parts and tools
Guarantee One year
Using life More than 15 years

Oil pot

 Design volume 3.35L
Working capacity 2.7L
Stirring power 0.025kw
Stirring speed 1400 RPM
Heating power 1 Kw

Water pot

 Design volume 3.35L
Working capacity 2.7L
Stirring power 0.025kw
Stirring speed 1400 RPM
Heating power 1 Kw

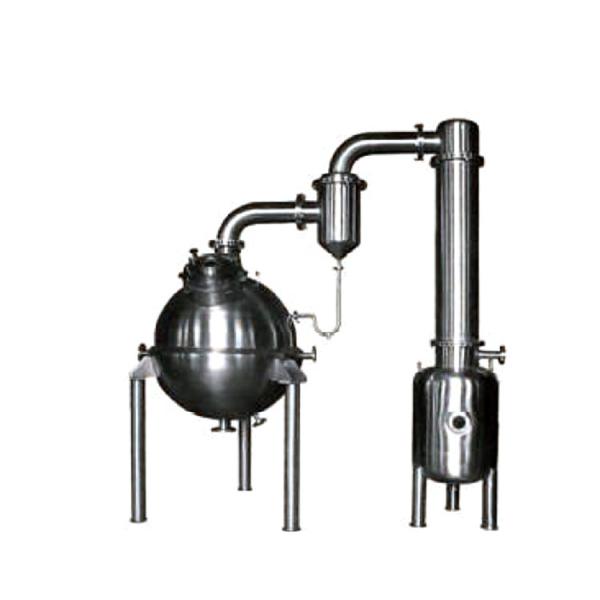

Machine Picture:

Ganoderma Grape Seed Ginkgo Ginger Extractor Machine LTN - Series High Efficiency

Ganoderma Grape Seed Ginkgo Ginger Extractor Machine LTN - Series High Efficiency
