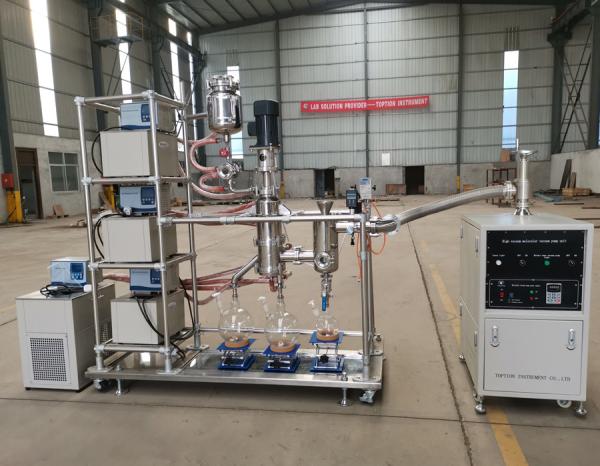

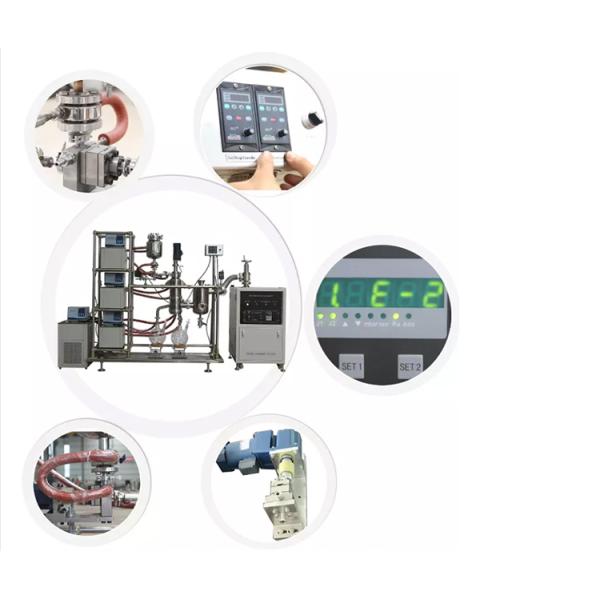

Thin Film Evaporator Herb Extraction Machine Short Path Distillation For CBD Oil
Thin Film Evaporator Herb Extraction Machine Short Path Distillation For CBD Oil
Thin Film Evaporator Herb Extraction Machine Short Path Distillation For CBD Oil
Thin Film Evaporator Herb Extraction Machine Short Path Distillation For CBD Oil
Specifications
Brand Name :
LTPM CHINA
Model Number :
LTSP-30
Certification :
CE
Place of Origin :
China (Mainland)
MOQ :
1Set/Sets
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20set/sets per a month
Delivery Time :
a month
Packaging Details :
Wooden packing
Evaporation Area m2 :
3
Feeding Rate L/h :
High-precision gear pump
Receiving Method :
Continuous discharge pump
Equipment Height(mm) :
6200
Max Speed(rpm) :
50-350
Operation Temperature :
Up to 350C
Vacuum Level(mbar) :
Low to 0.001 mbar
Feeding Mode :
Gear pump for automatic and continuous feeding
Collection Mode :
Gear pump for automatic and continuous collection
Description

Thin Film Evaporator Herb Extraction Machine Short Path Distillation For CBD Oil

LTPM CHINA molecular distillation, also called molecular distiller, it is a process of separation, purification and concentration of natural products, complex and thermally sensitive molecules for example vitamins and polyunsaturated fatty acids.

Features of Molecular distillation:

1,Evaporation efficiency is very high, can reduce retention time, with minimal time delay.
2,Molecular distillation system is composed of high borosilicate glass 3.3, 316L stainless steel and PTFE, so it has excellent anti-corrosion ability.
3. The main part of the molecular distillation system is made of high borosilicate glass 3.3, and the whole operation process can be well observed.
4.The high precision distillation cylinder body enables the liquid to form a complete integrated film on the heating surface.The inner wall of the barrel body is smooth and bright, not easy to stick to the material and scaling.
5.imported brand variable frequency speed reduction motor,safe and reliable in operation;equipped with self-cooling fan,it can continuous working for a long time.
6.the magnetic drive system makes it possible to seal the whole machine.the transfer bar of the drive motor does not need to pass through the main distiller.the whole set of the distillation system possess good sealability.The min vacuum pressure can reach 0.001mba.
7.the max temperature of the equipment can up to 250℃/300℃ ,accurate temperature control can achieved.
8.maximum the theroretical vacuum degree can up to 0.05 mbar or 0.001mbar.(secondary diffusion pump is needed)
9.You can free choose of scraper film forming system and self-cleaning roller system.

Technical data:

Turnkey Solution for Stainless Steel Molecular Distillation
Model LTSP-1 LTSP-2 LTSP-5 LTSP-10 LTSP-15 LTSP-20 LTSP-30 LTSP-50
Evaporation Area m2 0.1 0.2 0.5 1 1.5 2 3 5
Feeding Rate L/h 1-15 5-25 10-60 50-120 60-180 100-200 100-300 200-500
Feeding Method High-precision gear pump
Receiving Method Continuous discharge pump
Equipment Height(mm) 2100 2650 3100 4250 4500 5000 6200 7500
Max Speed(rpm) 50-350
Operation Temperature Up to 350C
Vacuum Level(mbar) Low to 0.001 mbar
Feeding Mode Gear pump for automatic and continuous feeding
Collection Mode Gear pump for automatic and continuous collection

Thin Film Evaporator Herb Extraction Machine Short Path Distillation For CBD Oil
